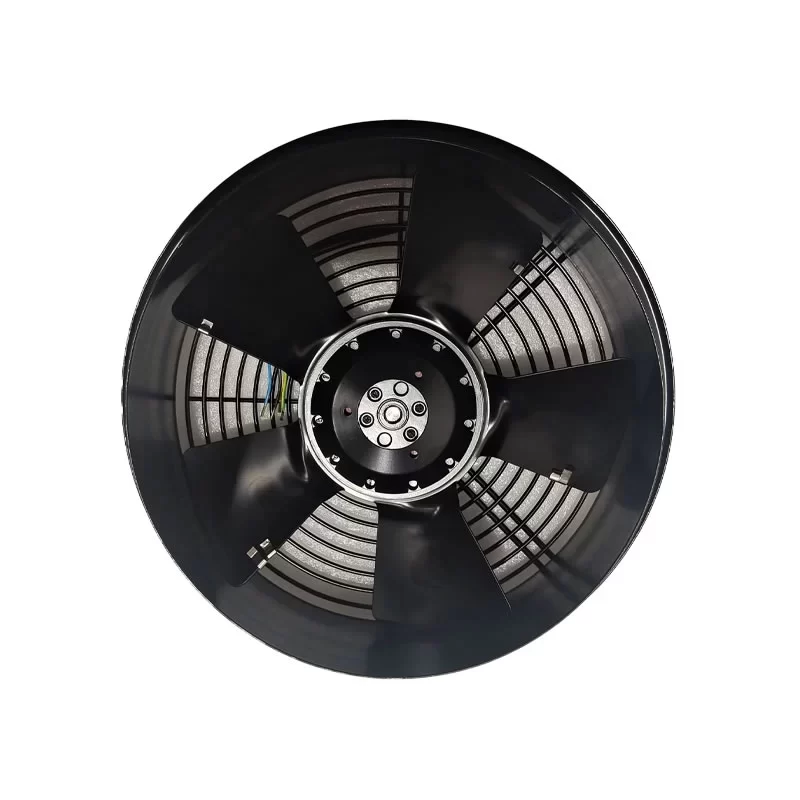

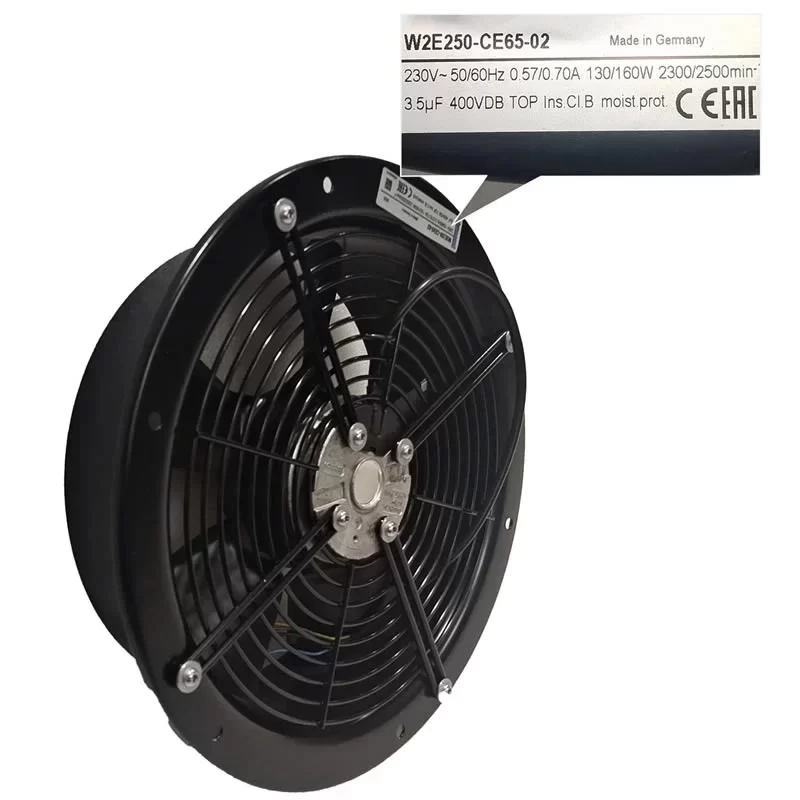

W2E250-CE65-02 ebmpapst 230V 130W 320mm AC Axial Fan

Description

The ebmpapst W2E250-CE65-02 is a high-performance 230 V industrial AC axial fan with dimensions of 320 x 320 x 85 mm and an impeller size of 250 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty M2E068-DF external rotor motor capable of sustaining a 130 W power input (at 50 Hz) or 160 W (at 60 Hz) to drive its specialized 5-blade black-painted sheet steel impeller at speeds of 2300 RPM or 2500 RPM respectively. Engineered specifically for air displacement in refrigeration systems and industrial ventilation, it utilizes a pre-galvanized sheet steel housing coated with black plastic to provide balanced pressure and airflow for mission-critical hardware. The mechanical design relies on precision maintenance-free ball bearings and a black-painted rotor to ensure reliable continuous operation across an ambient temperature range of -25 °C to 55 °C. Featuring a robust electrical interface with internal thermal overload protection and a required 3.5 µF motor capacitor, this fan is a critical component for condenser cooling, industrial heat exchangers, and commercial ventilation where long-term reliability and high aerodynamic efficiency are mandatory.

W2E250-CE65-02 Fan Parameters
Manufacturer: ebmpapst
Model Number: W2E250-CE65-02
Motor Model: M2E068-DF
Series: AC Axial Series
Fan Size: 250 mm
Dimensions: 320 x 320 x 85 mm
Type: AC Axial Fan
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC
Voltage Range: 220 – 240 VAC
Frequency: 50/60 Hz
Weight: 2200 g

[Electrical Data]
Input Power: 130 W (50 Hz) / 160 W (60 Hz)
Nominal Current: 0.57 A (50 Hz) / 0.7 A (60 Hz)
Starting Current: 0.9 A
Nominal Speed: 2300 RPM (50 Hz) / 2500 RPM (60 Hz)
Motor Design: AC External Rotor Motor (1-Phase)
Motor Capacitor: 3.5 µF / 400 VDB (S0 CE standard)
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Touch Current: < 0.75 mA
Termination: Variable cable exit

[Performance & Acoustics]
Max. Air Flow: 1024.1 CFM (1740 m³/h / 29.0 m³/min)
Max. Static Pressure: 15.30 mmH₂O (150.0 Pa / 0.60 inH₂O)
Number of Blades: 5
Direction of Rotation: Clockwise (Viewed toward rotor)
Airflow Direction: “A”
Mode of Operation: S1 (Continuous operation)

[Materials & Construction]
Fan Housing Material: Sheet steel, pre-galvanized, black plastic coated
Impeller Material: Sheet steel, painted black
Guard Grille Material: Steel, phosphated, black plastic coated
Rotor Surface: Painted black
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage: On rotor side
Degree of Protection: IP44
Environmental Protection Class: H1

[Reliability & Safety Standards]
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 55 °C (at 50 Hz) / 50 °C (at 60 Hz)
Storage Temperature: -40 °C – 80 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: EAC, CE

Application
The ebmpapst W2E250-CE65-02 axial fan is used in commercial refrigeration condensers, industrial heat exchangers, cooling for large power electronics, server room ventilation modules, and agricultural climate control systems.
