Description

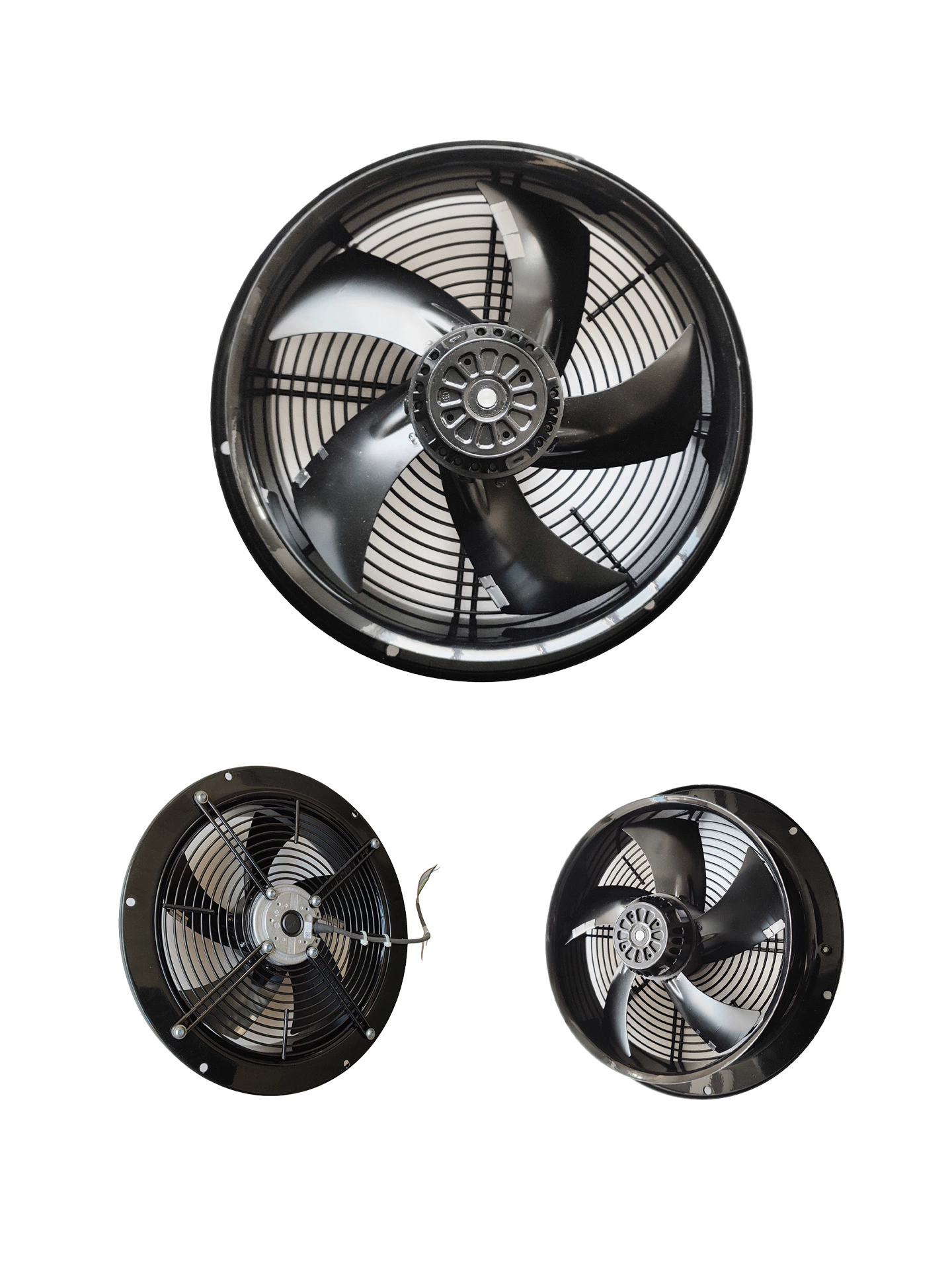

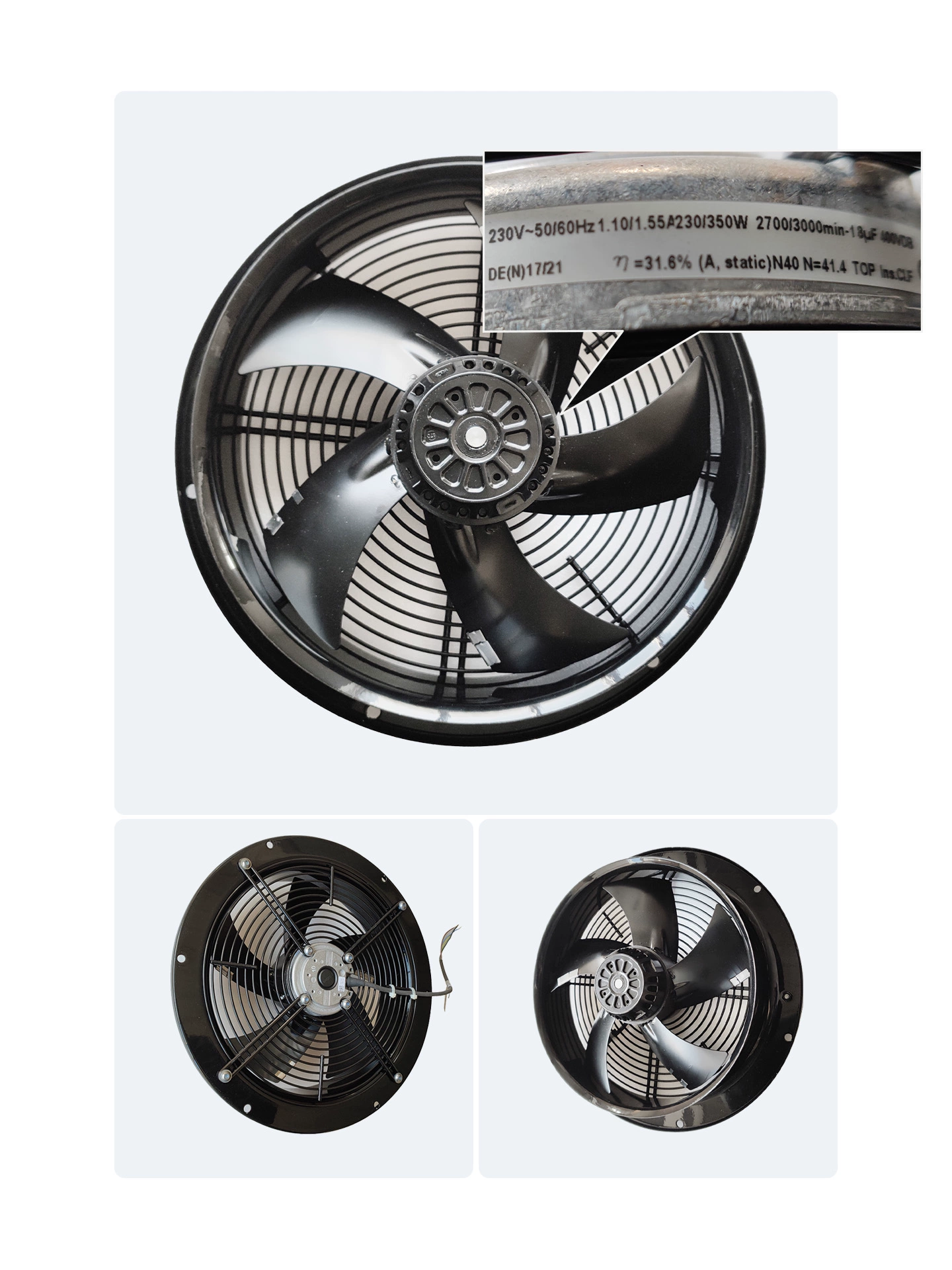

The ebmpapst W2E300-CP02-30 is a high-performance AC axial fan measuring 397mm in diameter with an 80mm depth. It operates on 230 VAC. Depending on the frequency (50/60 Hz), it draws between 1.1 A and 1.55 A of current, with a power consumption ranging from 230 W to 350 W. This fan achieves speeds between 2700 RPM and 3000 RPM, providing a powerful airflow of 2205 CFM (62.4 m³/min). The noise level is typically 75 dB(A). It features ball bearings for enhanced reliability and includes overload protection via a thermocontact. The fan has a robust sheet steel housing and impeller. This fan is designed for demanding applications such as inverter cabinet cooling, industrial ventilation, and general high-volume air movement.
W2E300-CP02-30 Fan Parameters
Model: W2E300-CP02-30
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 397mm diameter, 80mm depth
Rated Voltage: 230 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 1.1 A – 1.55 A
Power Consumption: 230 W – 350 W
Speed: 2700 RPM – 3000 RPM
Airflow: 2205 CFM (62.4 m³/min)
Noise Level: 75 dB(A)
Bearing Type: Ball Bearing
Termination: Wire Leads
Weight: 5.2 kg
Housing Material: Sheet steel
Impeller Material: Sheet steel
Protection: Thermocontact (Overload Protection), IP44
Operating Temperature: -25 to 70°C
Application: Inverter cabinet cooling, industrial ventilation, high-volume air movement.
