Description

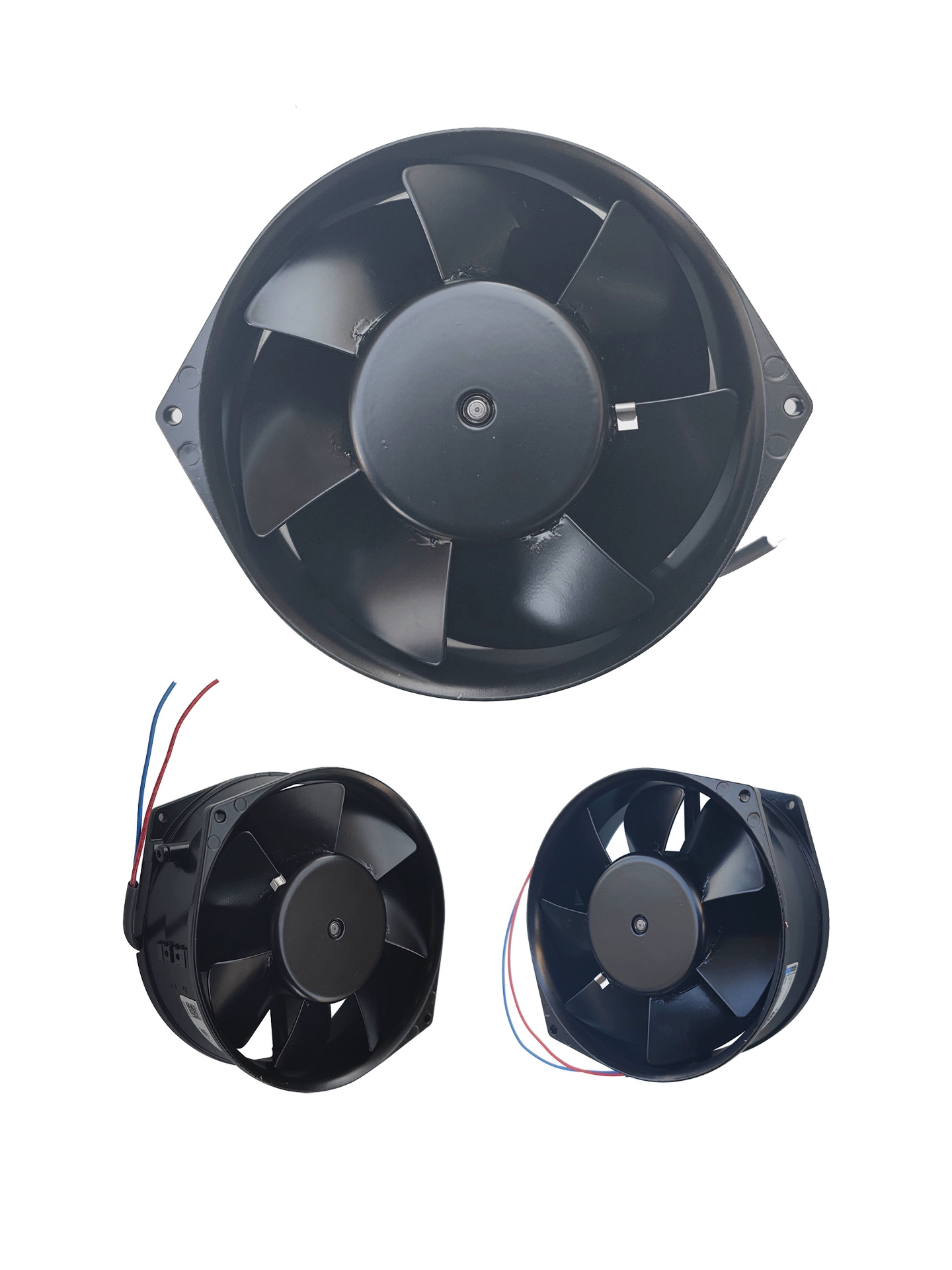

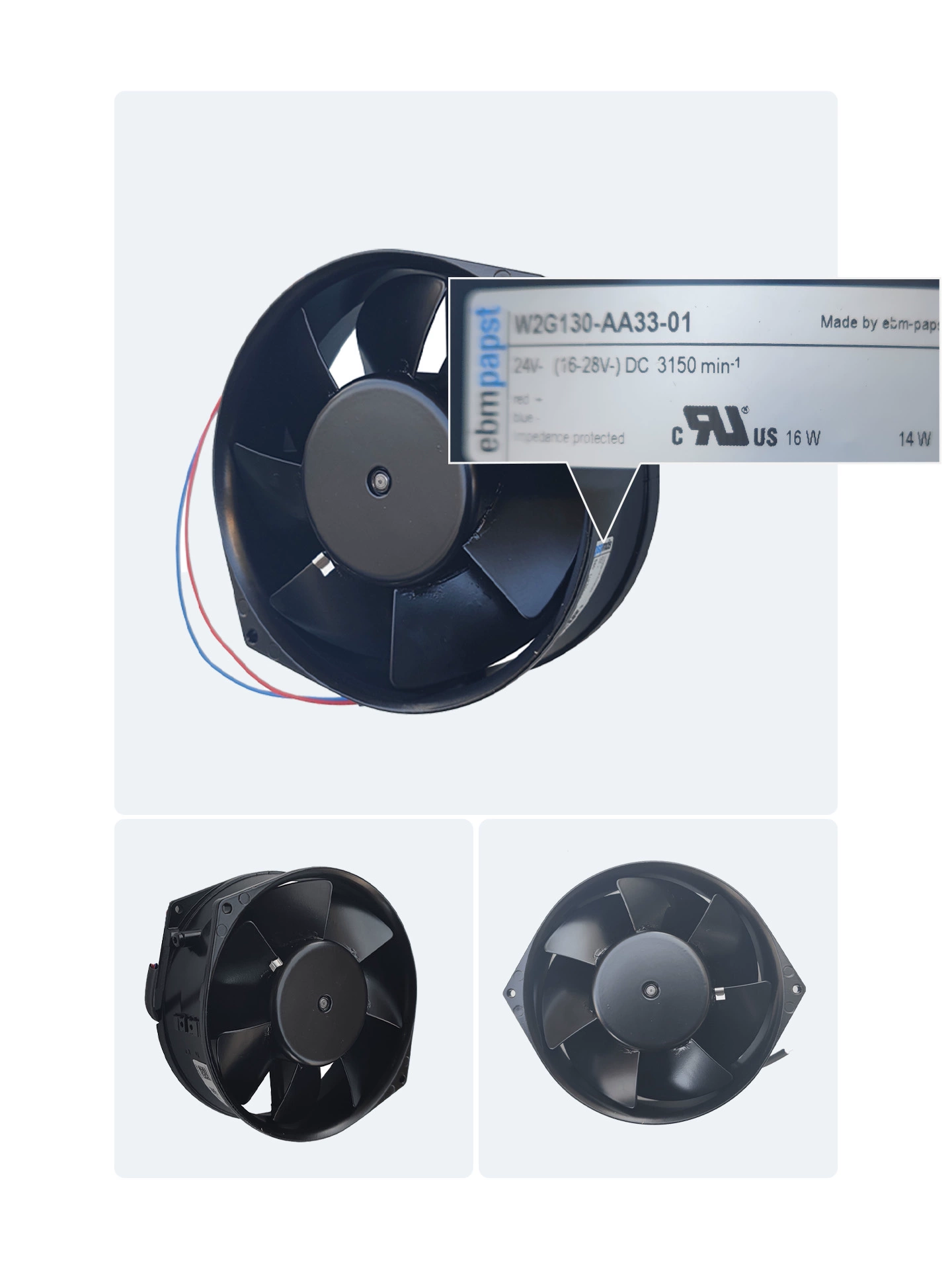

The ebmpapst W2G130-AA33-01 is a high-performance DC axial fan measuring 150mm in diameter with a 55mm depth. It operates on 24 VDC, drawing 0.74 A of current, with a power consumption of 16 W. This fan achieves a speed of 3150 RPM, providing a powerful airflow of 203 CFM (5.75 m³/min). The noise level is 51 dB(A). It features ball bearings for enhanced reliability and a longer lifespan, and includes reverse polarity and locked-rotor protection. The fan housing is made of die-cast aluminum with sheet steel blades, and it connects via 2-wire Leads. This fan is ideal for industrial and commercial settings, offering efficient cooling for electronics, machinery, and enclosures.

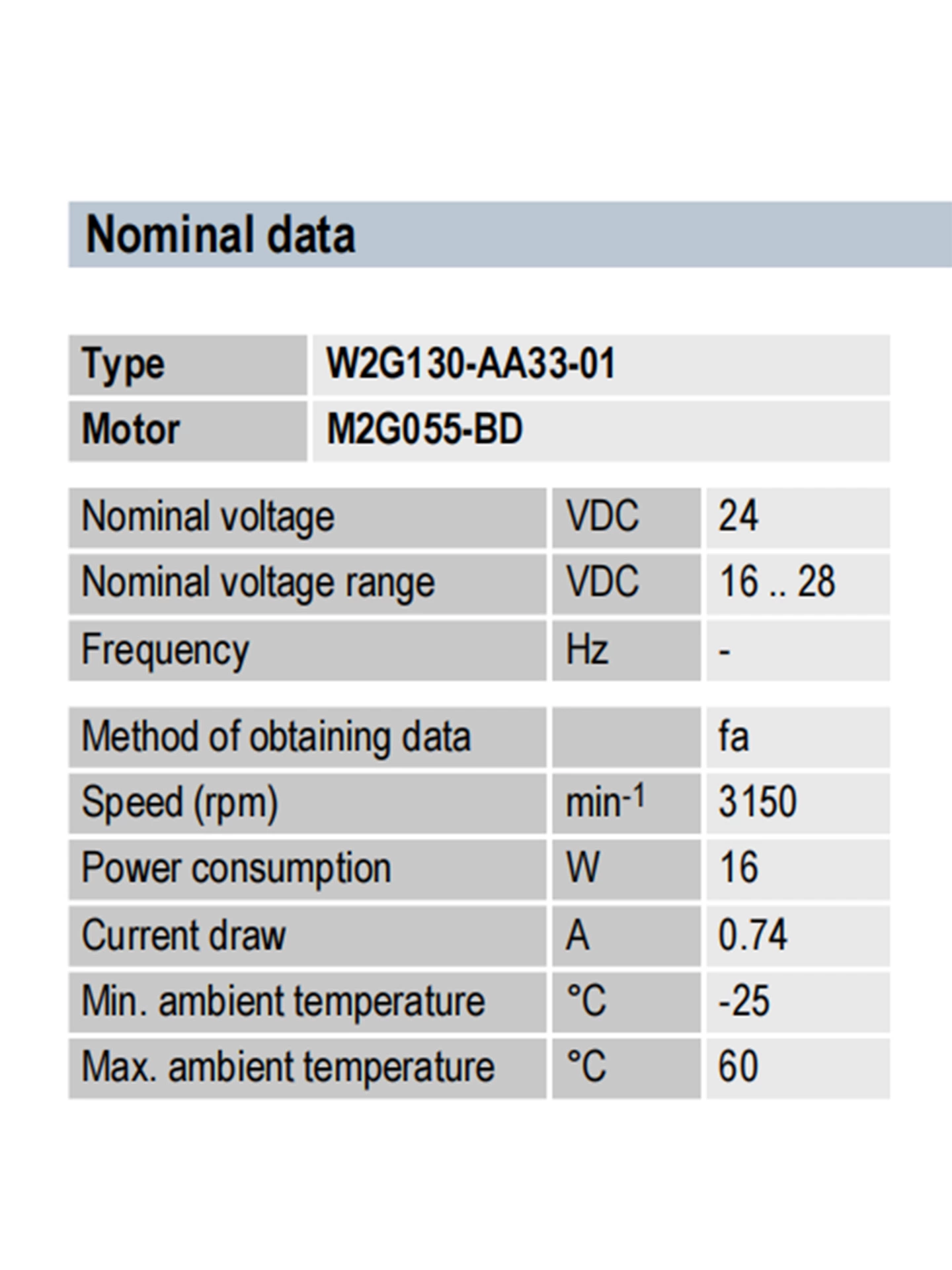

W2G130-AA33-01 Fan Parameters
Model: W2G130-AA33-01
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 150mm diameter, 55mm depth
Rated Voltage: 24 VDC
Operating Voltage Range: 16-28 VDC
Rated Current: 0.74 A
Power Consumption: 16 W
Speed: 3150 RPM
Airflow: 203 CFM (5.75 m³/min)
Noise Level: 51 dB(A)
Bearing Type: Ball Bearing
Termination: 2-wire Leads
Weight: 0.9 kg
Housing Material: Die-cast aluminum
Blade Material: Sheet steel
Protection: Reverse polarity and locked-rotor protection
IP Rating: IP20
Operating Temperature: -25 to 60°C
Application: Industrial and commercial cooling for electronics, machinery, enclosures.
