Description

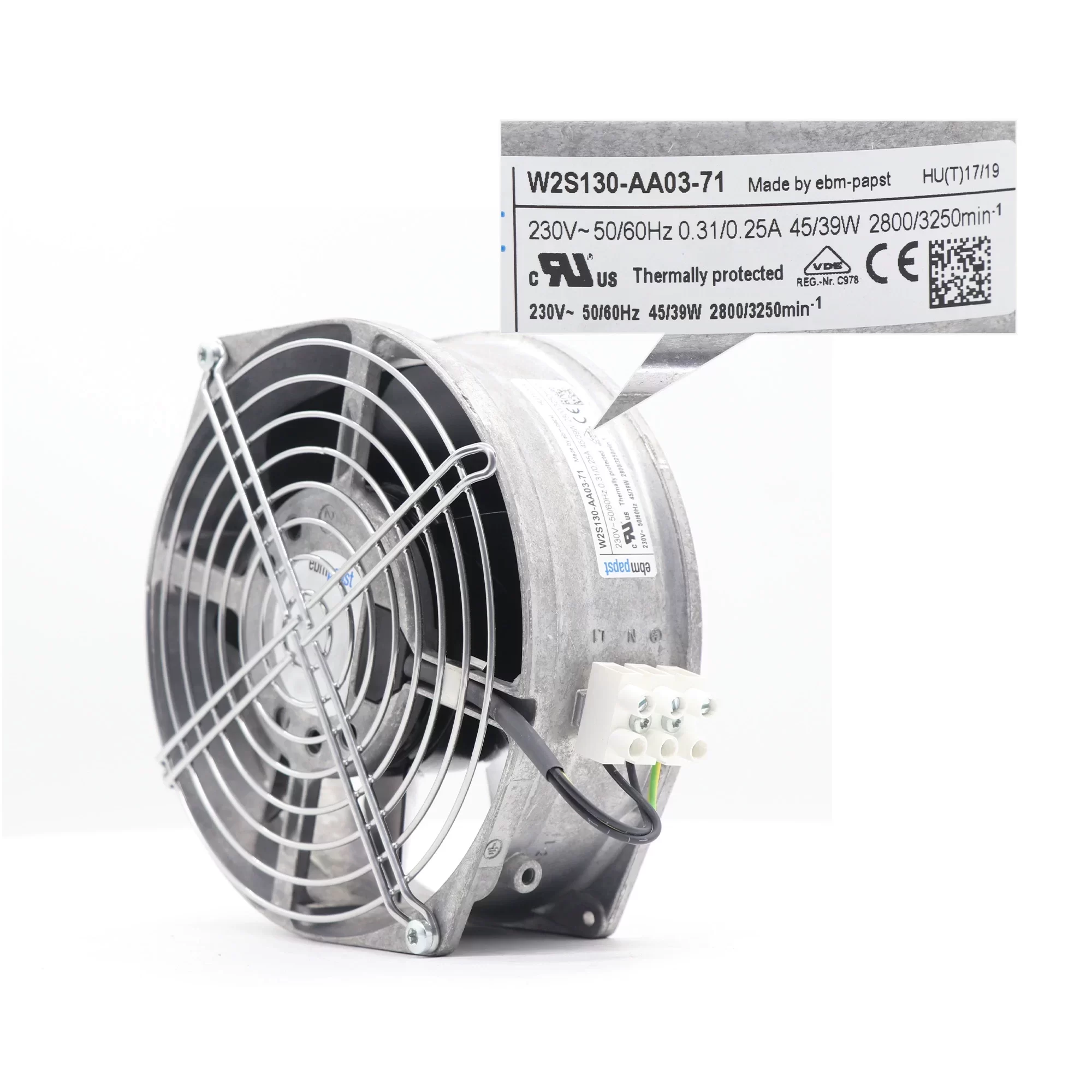

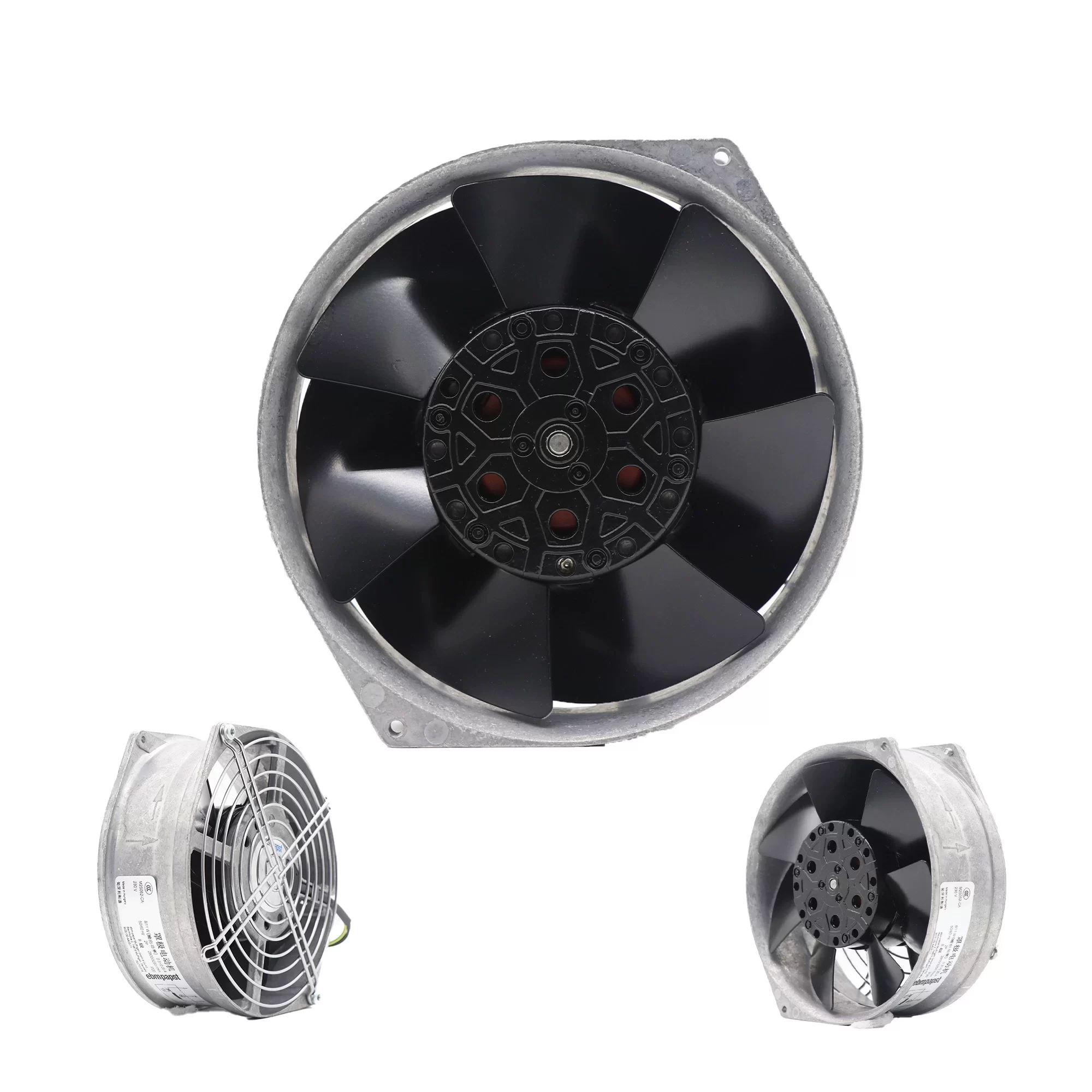

The ebmpapst W2S130-AA03-71 is a single-phase AC Axial Fan measuring 172x150x55mm with a 130mm impeller. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.31A of current, consumes 45W of power, and achieves a speed of 2800 RPM. When running at 60Hz, the current is 0.25A, power is 39W, and the speed reaches 3250 RPM. The fan features a durable ball bearing system, seven sheet steel blades, and an IP20 ingress protection level. With an I protection class and approvals including UL, CSA, CCC, and VDE, it is a reliable solution for various cooling applications.
W2S130-AA03-71 Fan Parameters
Model: W2S130-AA03-71
Manufacturer: ebmpapst
Type: AC Axial Fan
Motor: M2S052-CA
Dimensions: 172 x 150 x 55 mm
Fan Size: 130 mm
Weight: 1.1 kg
Number of Blades: 7
Airflow Direction: “V”
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Motor Bearing: Ball bearing
Insulation Class: “B”
Degree of Protection: IP20
Protection Class: I (with customer connection of protective earth)
Motor Protection: Thermal overload protector (TOP) internally connected
Touch Current: < 0.75 mA
Rotor Surface: Rotor open, painted black
Blade Material: Sheet steel, painted black
Fan Housing Material: Die-cast aluminum
Guard Grille Material: Steel, coated with white-aluminum plastic (RAL 9006)
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 50 °C
Min. Permitted Ambient Temp for Motor (transport/storage): -40 °C
Max. Permitted Ambient Temp for Motor (transport/storage): +80 °C
Conformity with Standards: EN 60335-1; CE
Approval: UL 507; CSA C22.2 No. 113; CCC; VDE
50Hz Performance
Nominal Voltage: 230 VAC
Speed: 2800 min-1
Power Consumption: 45 W
Current Draw: 0.31 A
Method of Obtaining Data: fa
60Hz Performance
Nominal Voltage: 230 VAC
Speed: 3250 min-1
Power Consumption: 39 W
Current Draw: 0.25 A
Method of Obtaining Data: fa
Application: Industrial and electronic equipment cooling.
