W2S130-AA03-77 ebmpapst 230V 45/39W Rittal fan

Description

The ebm-papst W2S130-AA03-77 is a robust 230V AC axial cooling fan, widely employed by Rittal in their industrial enclosure climate control solutions. This high-performance fan, designed by ebm-papst, measures approximately 172mm (diameter) x 55mm (thickness) and is built for effective heat dissipation in demanding environments. It features a durable construction with a metal impeller and housing. Operating at 230V AC, its performance varies slightly between 50Hz and 60Hz, typically drawing around 0.17A to 0.21A and delivering substantial airflow. Equipped with ball bearings and internal thermal protection, it offers reliable and long-lasting operation, making it an ideal choice for maintaining optimal temperatures within Rittal enclosures and other industrial systems.

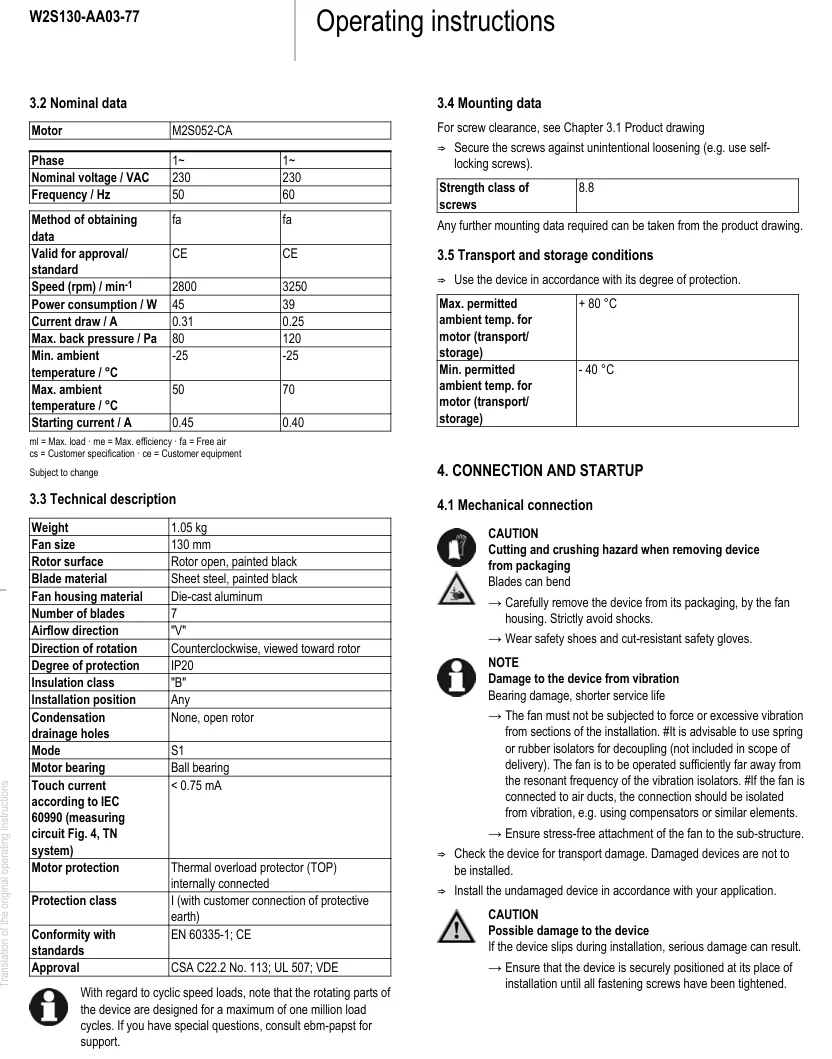

Model Number: W2S130-AA03-77
Original Manufacturer: ebm-papst
Typical Integrator/Supplier: Rittal
Type: AC Axial Fan

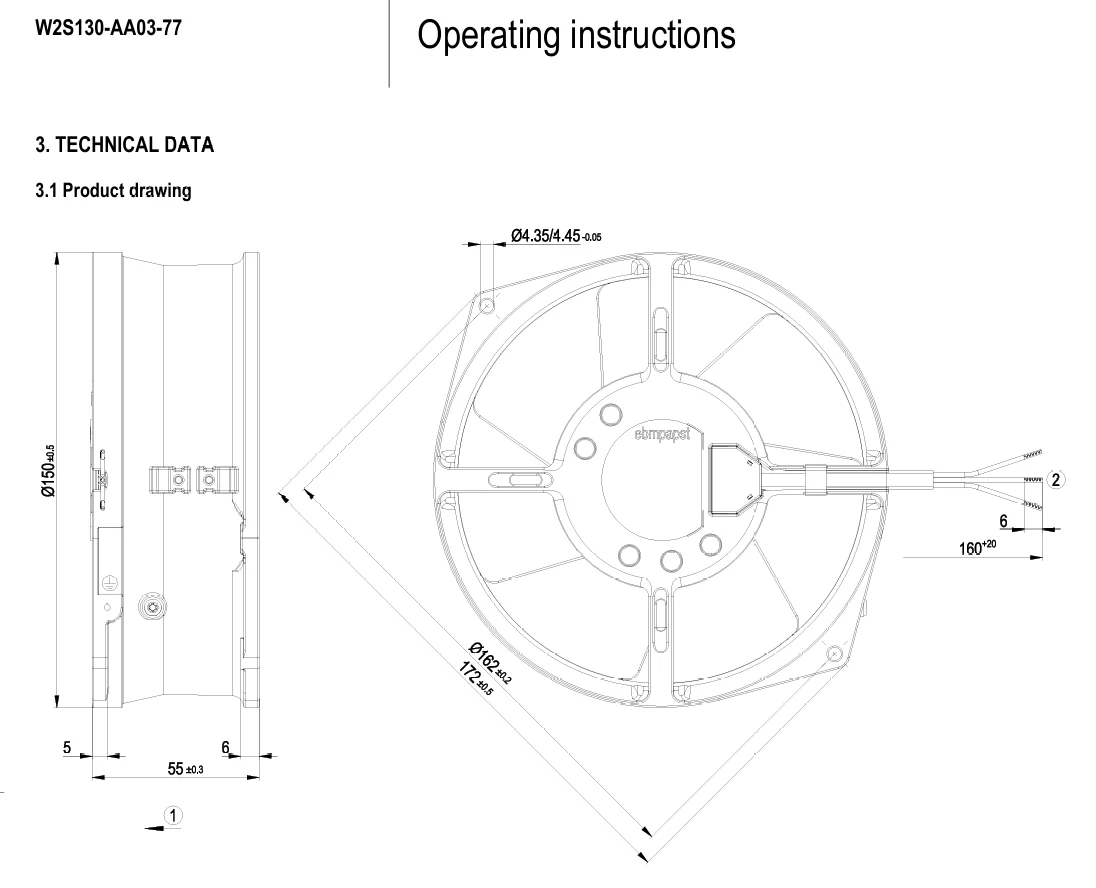

Dimensions: 172mm (Dia.) x 150mm (Square Frame) x 55mm (Thickness)
Rated Voltage: 230V AC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.21A (50Hz) / 0.17A (60Hz)
Rated Power: 45W (50Hz) / 39W (60Hz)
Speed: 2700 RPM (50Hz) / 3000 RPM (60Hz)
Airflow: 200 CFM (340 m³/h) at 50Hz / 224 CFM (380 m³/h) at 60Hz
Static Pressure: Up to 0.52 inch-H2O (130 Pa)
Noise Level: 60 dBA (50Hz) / 53 dBA (60Hz)
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: >60,000 hours at 40°C (typical)
Operating Temperature: -40°C to +80°C
Frame Material: Die-cast aluminum
Impeller Material: Sheet steel, black painted
Motor Protection: Thermal Overload Protector (TOP)
Protection Class: I
Degree of Protection: IP20
