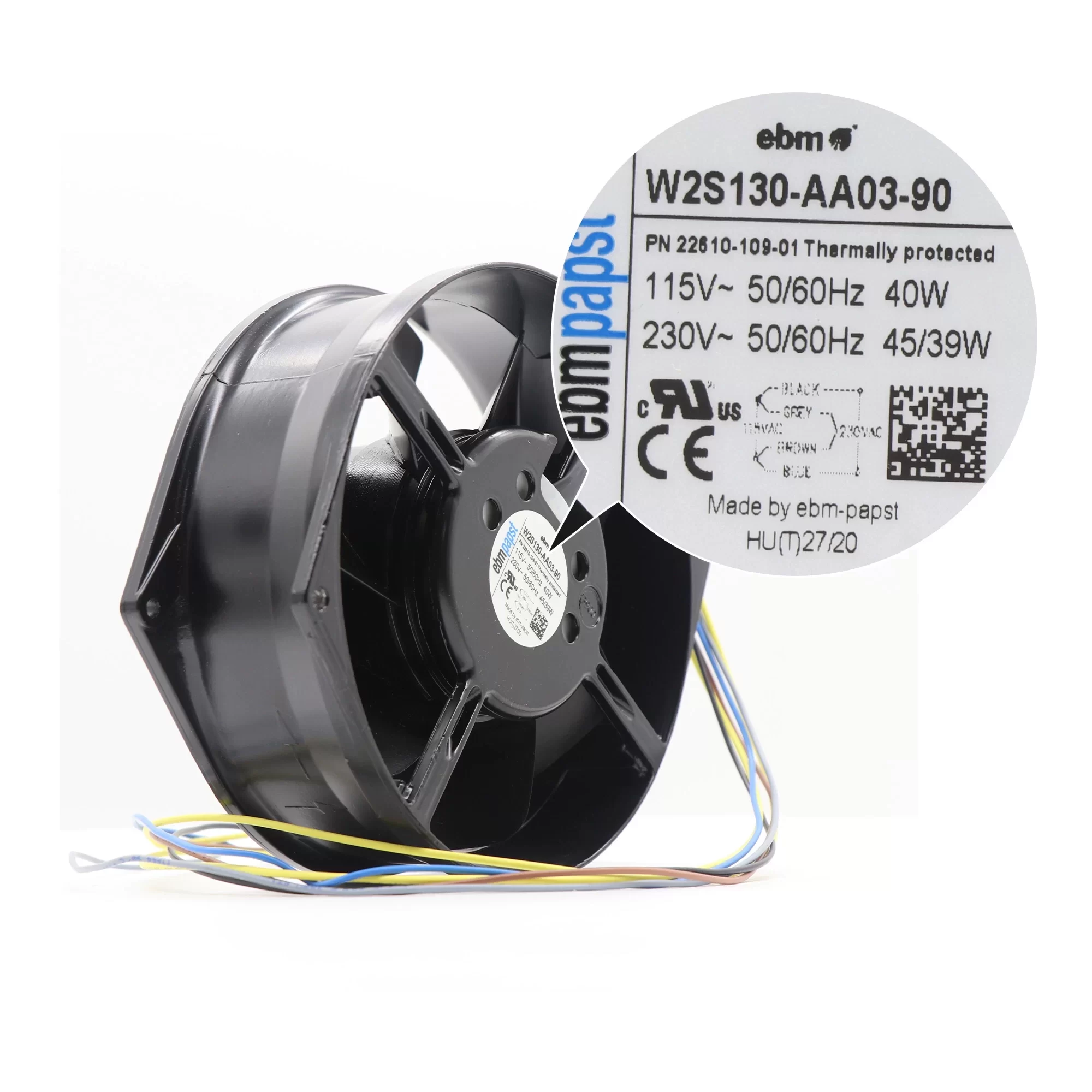

W2S130-AA03-90 ebmpapst AC Axial Fan 115V 230V

Description

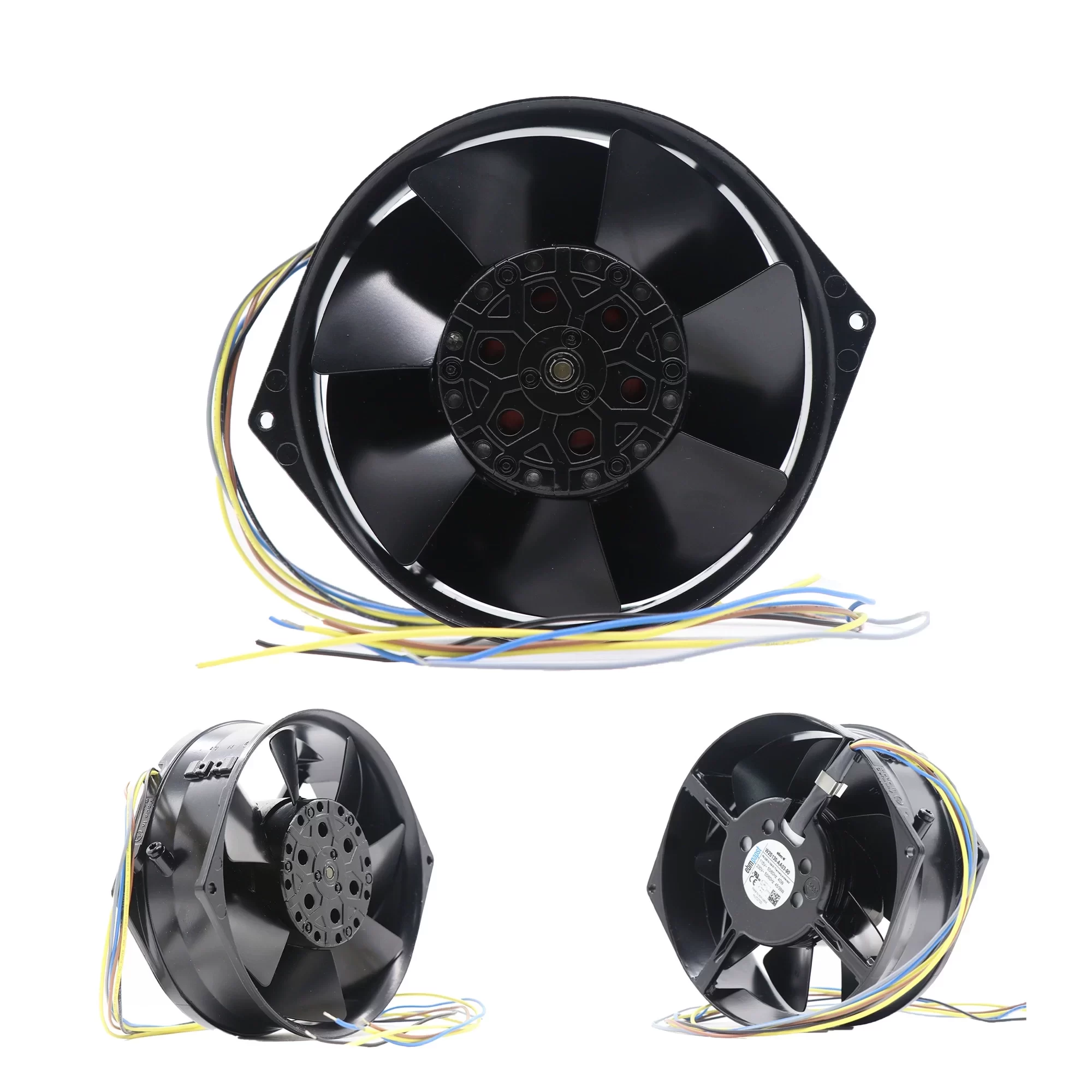

The ebmpapst W2S130-AA03-90 is a single-phase AC Axial Fan measuring 150x150x55mm with a 130mm impeller. It offers dual-voltage operation at 115V and 230V, both at 50Hz and 60Hz. At 115V/50Hz, it has a speed of 2800 RPM with a power input of 45W and a current draw of 0.62A. At 115V/60Hz, the speed increases to 3200 RPM with a power input of 42W and a current draw of 0.52A. For 230V/50Hz operation, the speed is 2800 RPM with a power input of 45W and a current draw of 0.31A. At 230V/60Hz, it reaches 3200 RPM with a power input of 42W and a current draw of 0.26A. The fan has a B insulation class, an IP20 protection rating, and a I protection class with customer connection of protective earth. It is approved to UL 507 and CSA C22.2 No. 113 standards.

W2S130-AA03-90 Fan Parameters
Model: W2S130-AA03-90
Manufacturer: ebmpapst
Type: AC Axial Fan
Motor: M2S052-CA
Dimensions: 150 x 150 x 55 mm
Fan Size: 130 mm
Weight: 1.1 kg
Number of Blades: 7
Airflow Direction: “V”
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Any
Condensation Drainage Holes: None
Mode: S1
Speed Levels: Dual-voltage
Motor Bearing: Ball bearing
Insulation Class: “B”
Phase: 1~
Protection Class: I (with customer connection of protective earth)
Degree of Protection: IP20
Motor Protection: Thermal overload protector (TOP) with basic insulation
Touch Current: < 0.75 mA
Rotor Surface: Rotor open, painted black
Impeller Material: Sheet steel, painted black
Fan Housing Material: Die-cast aluminum, painted black
Min. Permitted Ambient Temp: -40 °C
Max. Permitted Ambient Temp: +80 °C
Conformity with Standards: EN 60335-1; CE
Approval: UL 507; CSA C22.2 No. 113

115VAC, 50Hz Performance
Speed: 2800 min-1
Power Input: 45 W
Current Draw: 0.62 A
Max. back pressure: 60 Pa

115VAC, 60Hz Performance
Speed: 3200 min-1
Power Input: 42 W
Current Draw: 0.52 A
Max. back pressure: 75 Pa

230VAC, 50Hz Performance
Speed: 2800 min-1
Power Input: 45 W
Current Draw: 0.31 A
Max. back pressure: 60 Pa

230VAC, 60Hz Performance
Speed: 3200 min-1
Power Input: 42 W
Current Draw: 0.26 A
Max. back pressure: 75 Pa
Application: Industrial and electronic equipment cooling.
