Description

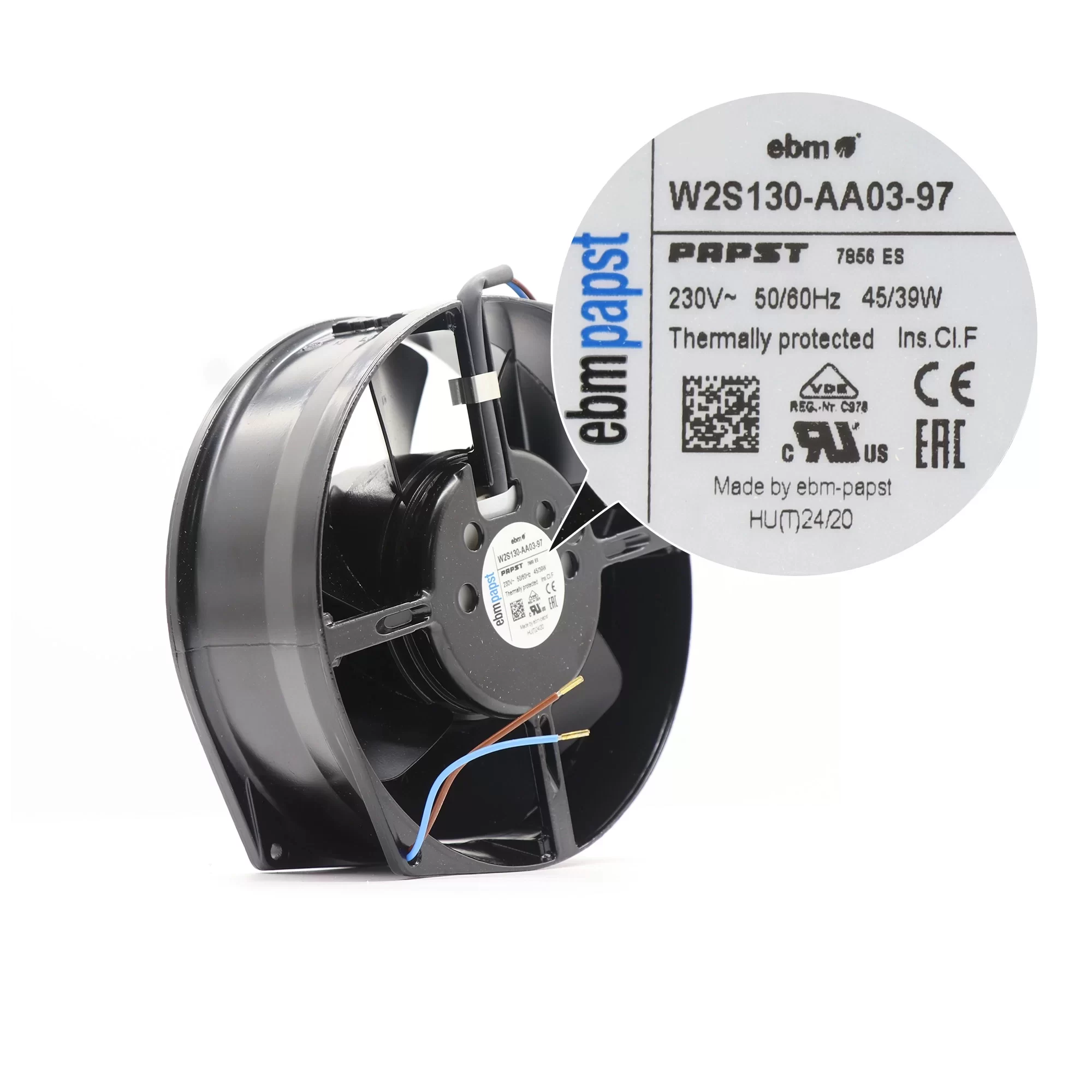

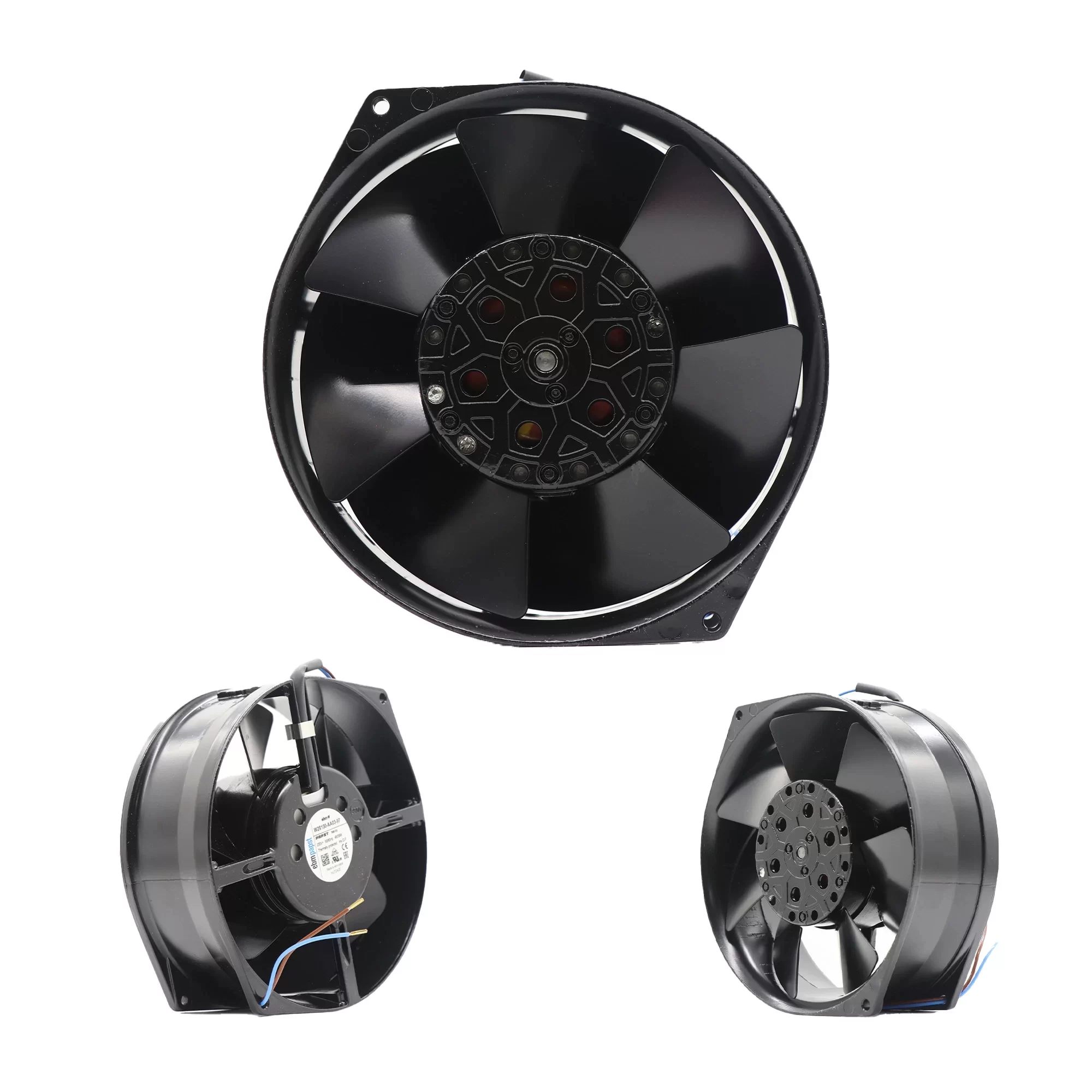

The ebmpapst W2S130-AA03-97 is an AC Axial Fan measuring 150x150x55mm. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.31A of current, consumes 45W of power, and achieves a speed of 2800 RPM. When running at 60Hz, the current is 0.25A, power is 39W, and the speed reaches 3250 RPM. This fan has a static pressure of 55 Pa. It features a durable ball bearing system and has an IP20 ingress protection level. With a die-cast aluminum housing and a metal impeller, it is a reliable solution for various cooling applications.
W2S130-AA03-97 Fan Parameters
Model: W2S130-AA03-97
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 150 x 150 x 55 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Weight: 0.95 kg
Bearing Type: Ball Bearing
Protection Level: IP20
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Metal
Motor Protection: Thermal overload protector internally connected
50Hz Performance
Current Draw: 0.31 A
Power Input: 45 W
Fan Speed: 2800 RPM
60Hz Performance
Current Draw: 0.25 A
Power Input: 39 W
Fan Speed: 3250 RPM
Static Pressure: 55 Pa
Application: Industrial and electronic equipment cooling.
