Description

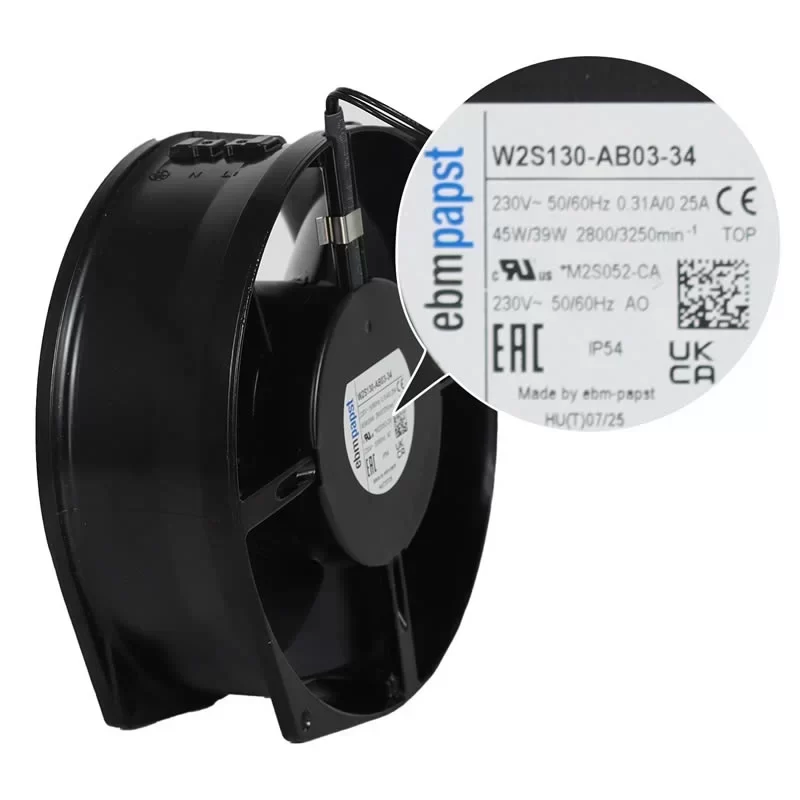

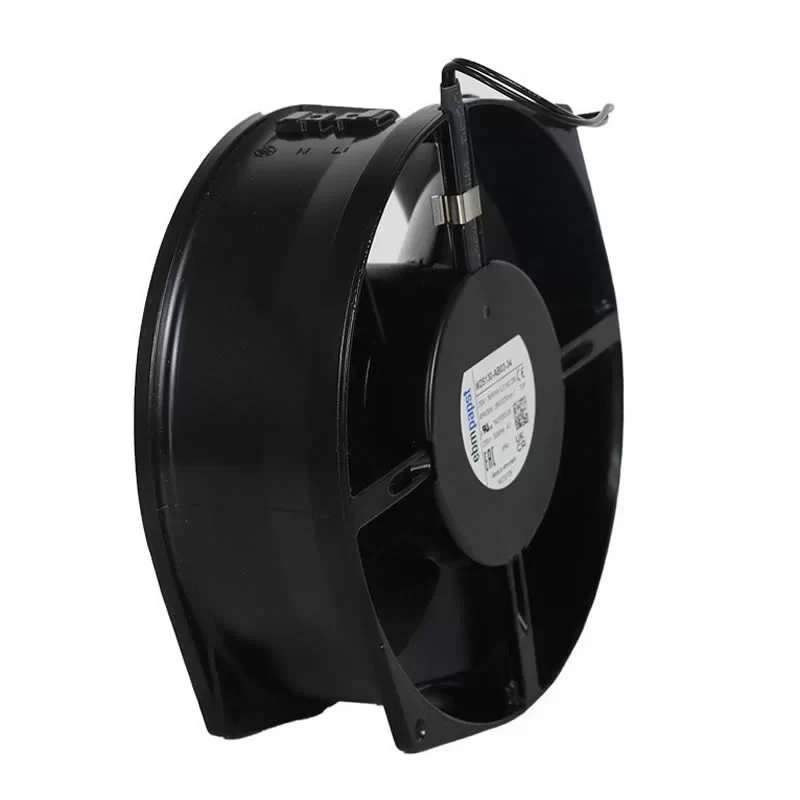

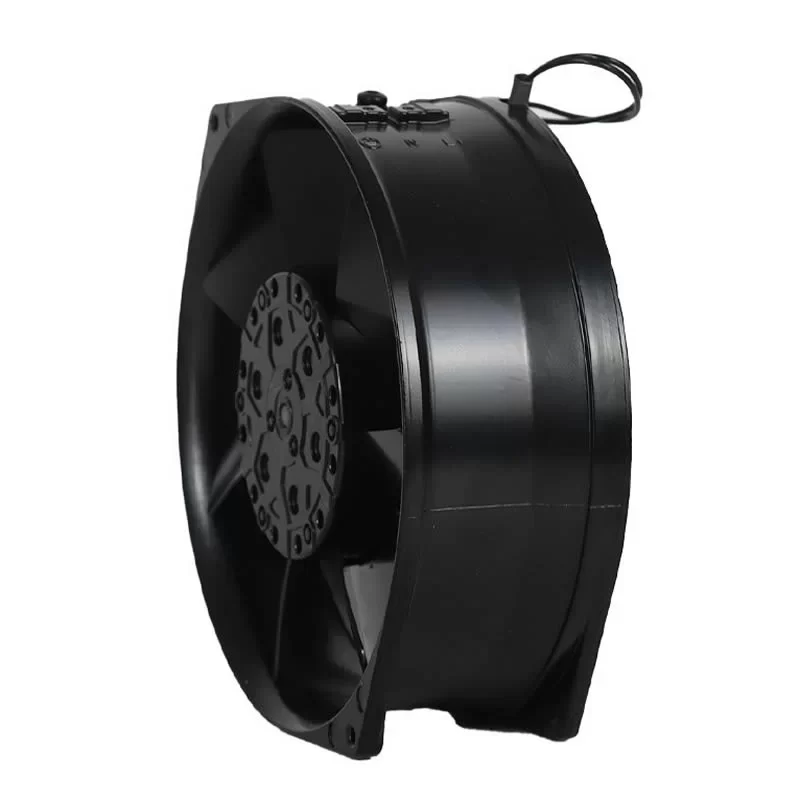

The ebmpapst W2S130-AB03-34 is a high-performance 230VAC AC Axial Fan with dimensions of 172 x 150 x 55 mm, featuring a robust die-cast aluminum housing and a sheet steel impeller, specifically engineered for mission-critical cooling in Industrial Frequency Converters and control cabinets. Driven by a 1-phase 2-pole M2S052-CA external rotor motor with maintenance-free ball bearings, this 1.1 kg unit operates on a 230 VAC supply delivering a Max. Power Consumption of 45 / 39 W and a Max. Current Draw of 0.31 / 0.25 A at a rated speed of 2800 / 3250 RPM. This High-performance unit achieves a Max. Air Flow of 226.6 / 256.0 CFM (385.0 / 435.0 m³/h / 6.42 / 7.25 m³/min) and a Max. Static Pressure of 8.16 / 12.24 mmH₂O (80.0 / 120.0 Pa / 0.32 / 0.48 inAq). Featuring a thermal overload protector (TOP) and Class F insulation, this 7-blade unit is optimized for industrial VFD systems requiring reliable two-wire connection and high-temperature resistance up to 80 °C at the end.
W2S130-AB03-34 Fan Parameters
Model Number: W2S130-AB03-34
Motor Model: M2S052-CA
Manufacturer: ebmpapst
Type: AC Axial Fan
Impeller Size: 130 mm
Dimensions: 172 x 150 x 55 mm
Weight: 1.1 kg
Bearing Type: Ball bearing
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Method of Obtaining Data: fa (Free air)
Max. Current Draw: 0.31 / 0.25 A
Max. Power Consumption: 45 / 39 W
Rated Speed: 2800 / 3250 RPM
Max. Air Flow: 226.6 / 256.0 CFM (385.0 / 435.0 m³/h / 6.42 / 7.25 m³/min)
Max. Static Pressure: 8.16 / 12.24 mmH₂O (80.0 / 120.0 Pa / 0.32 / 0.48 inAq)
Working Air Flow: 385.0 / 435.0 m³/h
Static Pressure Increase: 80.0 / 120.0 Pa
Starting Current: 0.45 / 0.40 A
Number of Blades: 7
Touch Current (IEC 60990): < 0.75 mA
Motor Protection: Thermal overload protector (TOP) internally connected
Electrical Hookup: 2-wire (Variable cable)
Insulation Class: Class F
Degree of Protection: IP54
Environmental Protection Class: H1+
Housing Material: Die-cast aluminum, painted black
Impeller Material: Sheet steel, painted black
Direction of Rotation: Counterclockwise (viewed toward rotor)
Airflow Direction: V (Exhaust over struts)
Installation Position: Any
Mode: S1
Ambient Temperature (Max.): 50 / 80 °C
Min. Operating Temperature: -25 °C
Standard Compliance: EN 60335-1; CE
Approval: CSA C22.2 No. 100; EAC; UL 1004-1
Application
The ebmpapst W2S130-AB03-34 axial fan is the primary cooling component for industrial frequency converters and high-density power electronics requiring robust IP54-rated metal construction and high-temperature durability.
