W2S130-BM03-01 ebm-papst 7450ES 230V AC axial fan

Description

The ebmpapst W2S130-BM03-01 (7450ES) is a high-performance 230 VAC AC Axial Fan with an impeller size of 130 mm and dimensions of 172.0 x 150.0 x 55.0 mm, specifically engineered for demanding thermal management in industrial frequency converters and high-power VFD cooling systems. Driven by a robust M2S052-CA motor with integrated thermal overload protection, this unit provides a precise Max. Power Consumption of 47.0 W at 50 Hz and 46.0 W at 60 Hz, operating at a rated speed of up to 3050 RPM to deliver a powerful airflow for efficient heat extraction. Constructed with a durable black-coated die-cast aluminum housing and a 5-blade black-coated sheet steel impeller featuring precision dual ball bearings, this 1.1 kg unit provides a dependable air-moving solution with IP20 protection, ensuring maximum cooling performance and long-term mechanical stability for high-power inverters, variable frequency drives, and integrated electrical switchgear systems at the end.

W2S130-BM03-01 Fan Parameters
Model Number: W2S130-BM03-01 (7450ES)
Manufacturer: ebmpapst

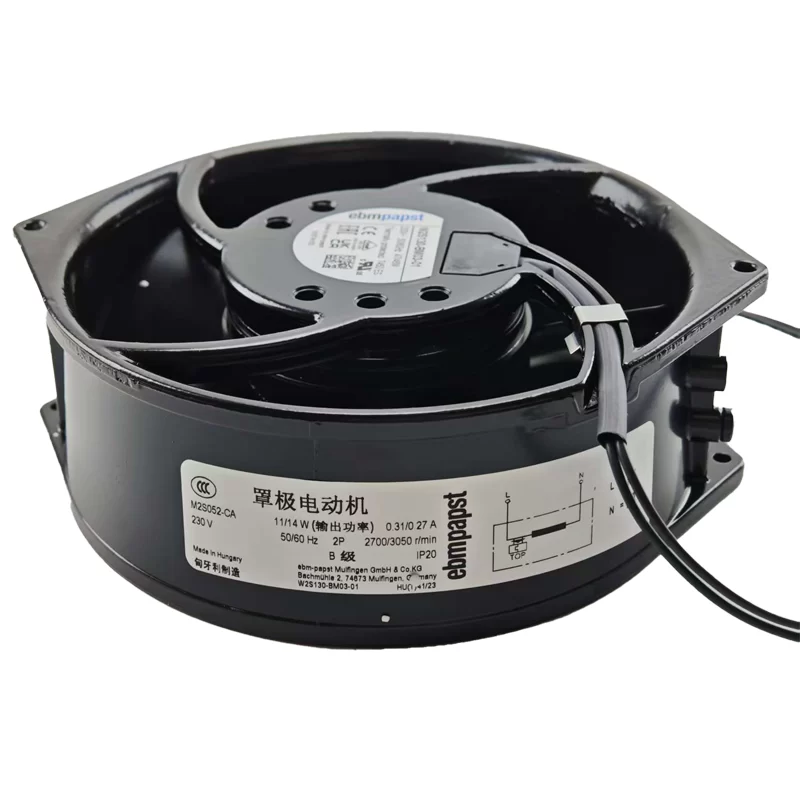

Motor Model: M2S052-CA (1-phase motor)
Type: AC Axial Fan
Impeller Size: 130 mm

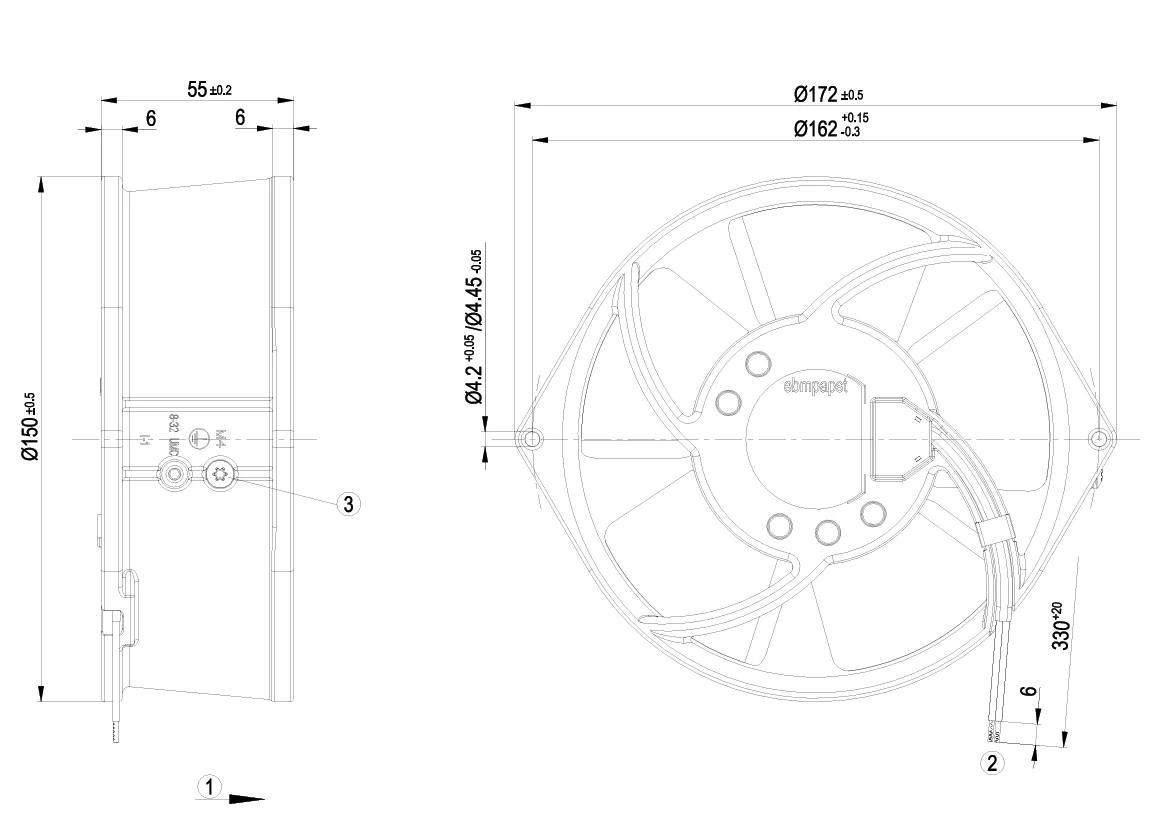

Dimensions: 172.0 x 150.0 x 55.0 mm
Weight: 1.1 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Max. Power Consumption: 47.0 W (50 Hz) / 46.0 W (60 Hz)
Max. Current Draw: 0.31 A (50 Hz) / 0.27 A (60 Hz)
Starting Current: 0.45 A (50 Hz) / 0.40 A (60 Hz)
Rated Speed: 2700 RPM (50 Hz) / 3050 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Working Air Flow: 325.0 m³/h (50 Hz) / 380.0 m³/h (60 Hz)
Static Pressure Increase: 80 Pa (50 Hz) / 120 Pa (60 Hz)
Motor Protection: Thermal overload protector (TOP) wired internally
Insulation Class: Class B
Protection Class: Class I
Electrical Hookup: 2 lead wires

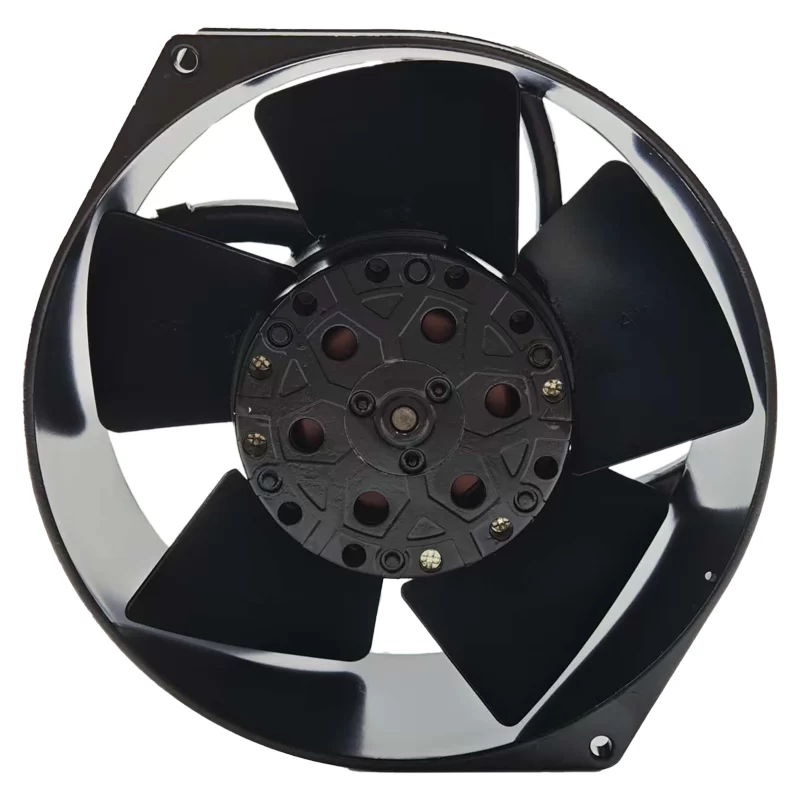

Number of Blades: 5
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Airflow Direction: Intake over struts

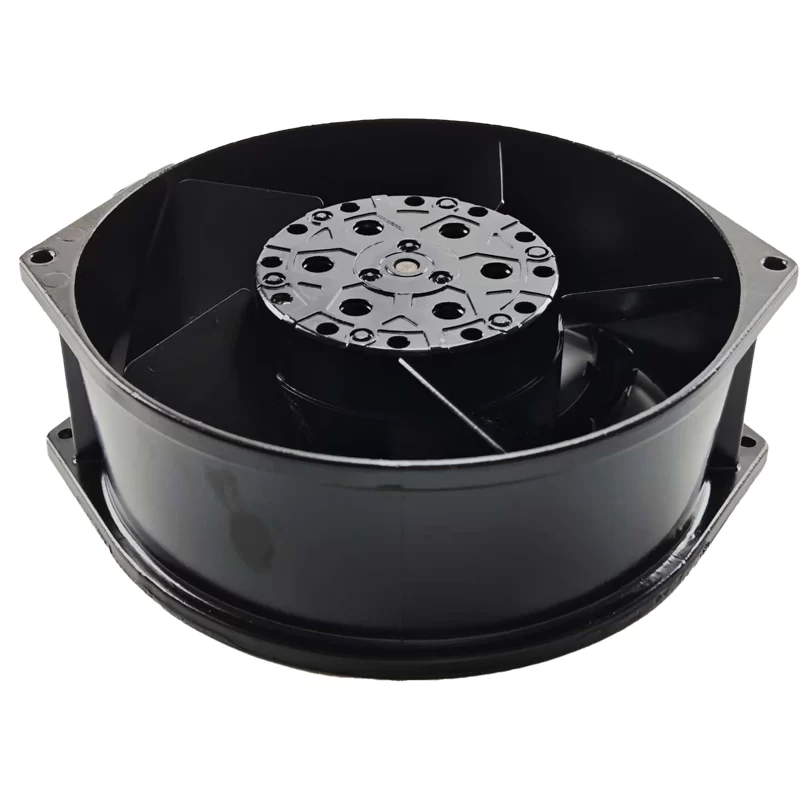

Housing Material: Die-cast aluminum, coated in black
Impeller Material: Sheet steel, coated in black
Rotor Surface: Coated in black
Operation Mode: S1 (Continuous operation)
Touch Current: < 0.75 mA (IEC 60990) Operating Temperature: -25 - +50 °C (50 Hz) / -25 - +70 °C (60 Hz) Storage Temperature: -40 - +80 °C Degree of Protection: IP20 Standard Compliance: EN 60335-1; CE Approval Agency: CSA C22.2 no. 113; CCC; EAC; UL 507; VDE Application The ebmpapst W2S130-BM03-01 AC fan is primarily utilized in industrial frequency converters, power inverters, and electrical control cabinet heat dissipation systems for efficient exhaust and cooling.
