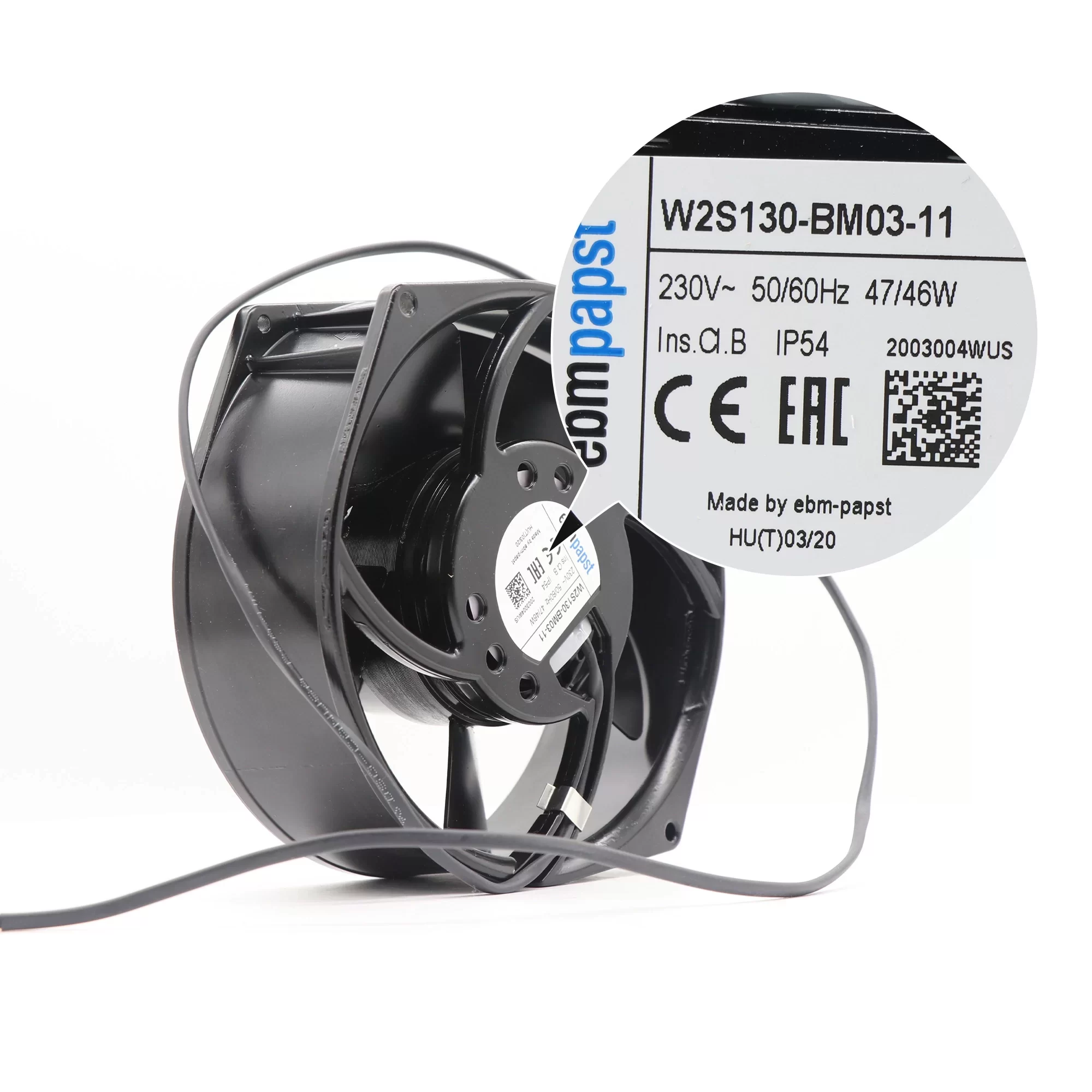

W2S130-BM03-11 ebmpapst 230V AC Axial Fan

Description

The ebmpapst W2S130-BM03-11 is an AC Axial Fan measuring 172x150x38mm. It operates on 230VAC at both 50Hz and 60Hz. At 50Hz, it draws 0.31A of current, consumes 47W of power, and achieves a speed of 2700 RPM. When running at 60Hz, the current is 0.27A, power is 46W, and the speed reaches 3050 RPM. This fan provides a static pressure of 65 Pa and features a durable ball bearing system with an IP54 ingress protection level. With a die-cast aluminum housing and sheet steel impeller, it is a reliable solution for cooling electronic equipment and other industrial applications.

W2S130-BM03-11 Fan Parameters
Model: W2S130-BM03-11
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 172 x 150 x 38 mm
Rated Voltage: 230 VAC
Frequency: 50/60 Hz
Bearing Type: Ball Bearing
Static Pressure: 65 Pa
Protection Level: IP54
Termination: 2 Wire Leads
Housing Material: Die-cast aluminum
Impeller Material: Sheet steel, spray-painted black
Direction of Rotation: Clockwise, viewed toward rotor
Operating Temperature: -40 to 80 °C

At 230V/50Hz:
Current Draw: 0.31 A
Power Input: 47 W
Fan Speed: 2700 RPM

At 230V/60Hz:
Current Draw: 0.27 A
Power Input: 46 W
Fan Speed: 3050 RPM

Application: Cooling electronic equipment and industrial applications.
