Description

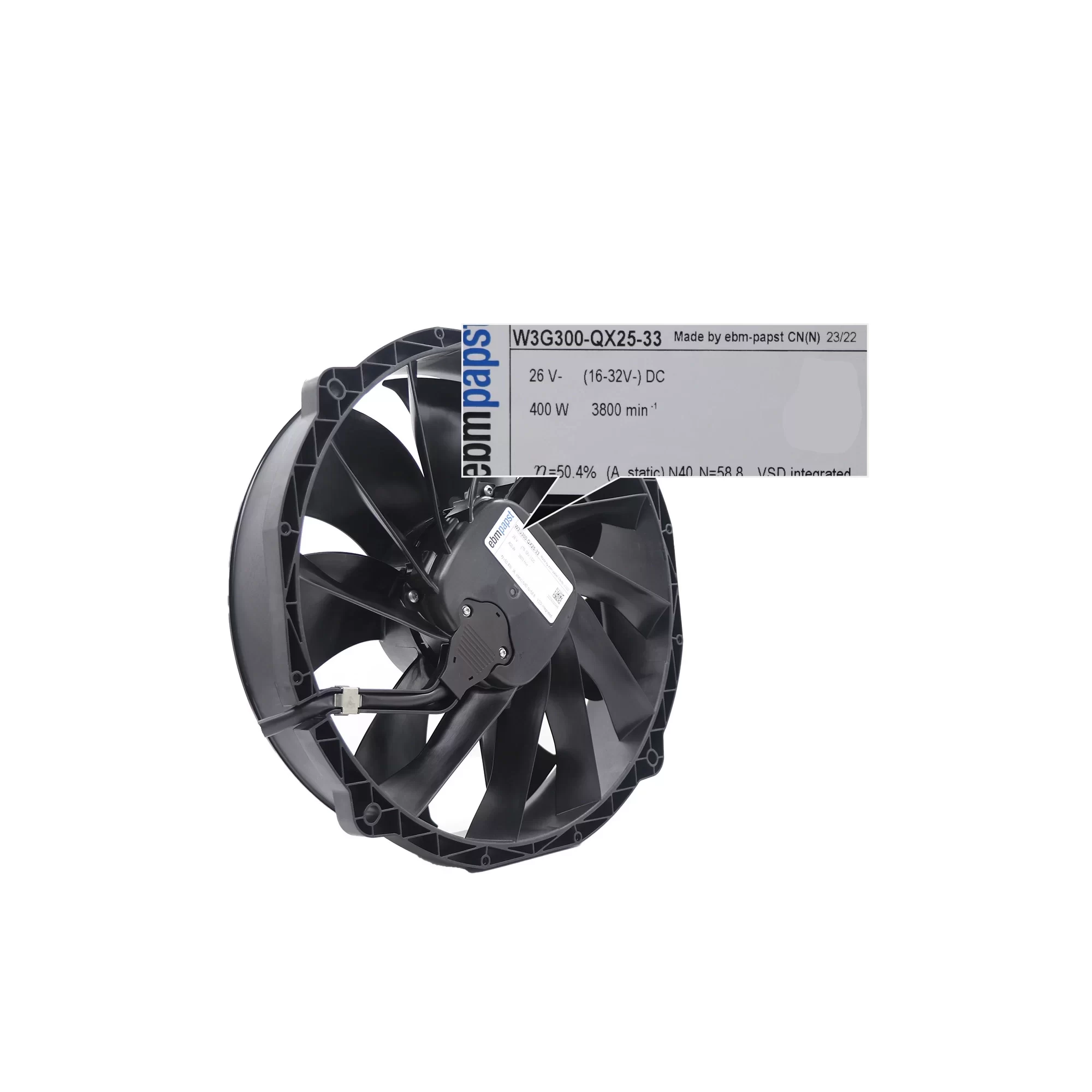

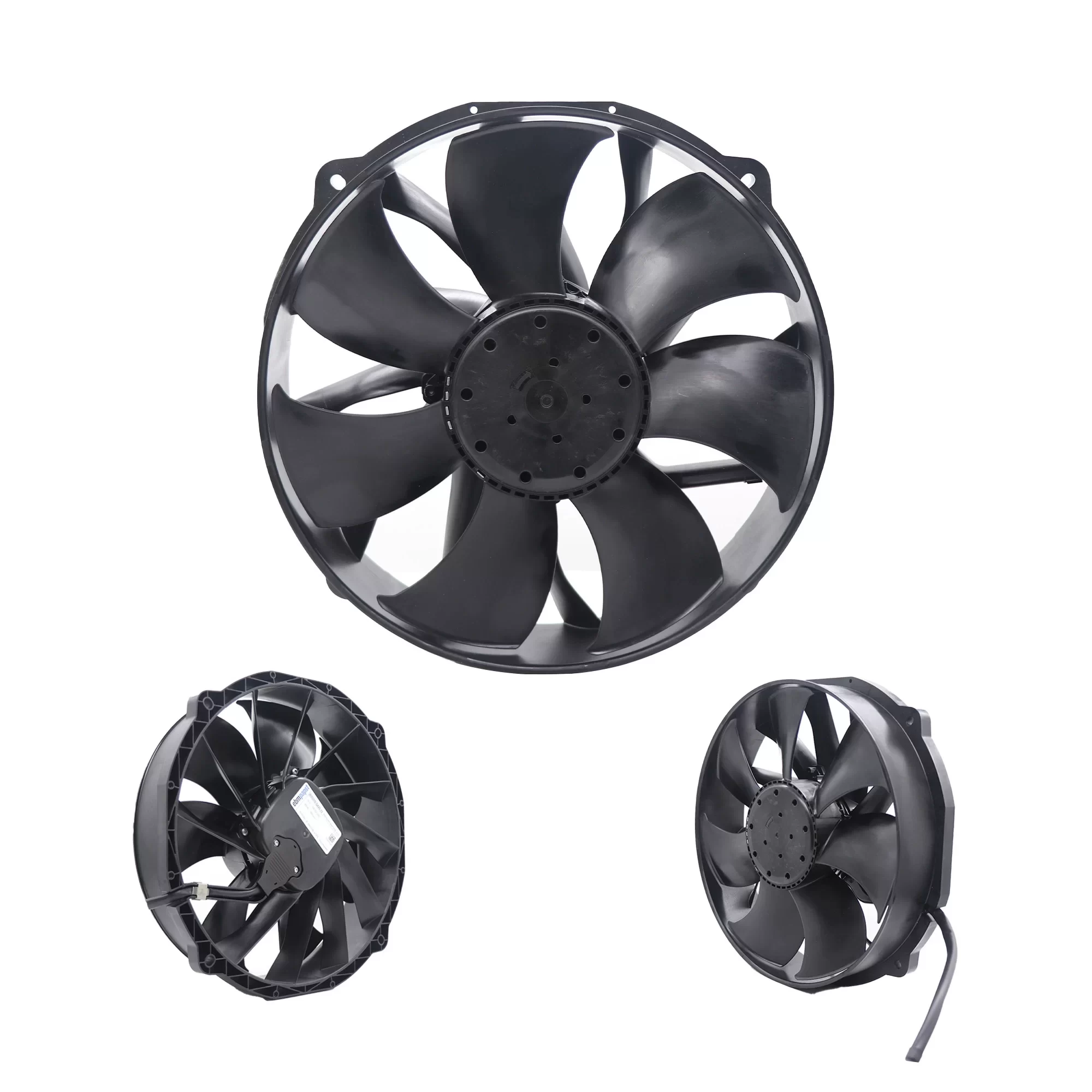

The ebmpapst W3G300-QX25-33 is a powerful 26V DC axial fan driven by an M3G084-BF motor. With approximate overall dimensions of 326 x 326 x 83.5 mm and a 300mm impeller diameter, it is designed for efficient air movement. It operates within a 16-32VDC range, drawing 15.0A of current and consuming 400W of power at a speed of 3800RPM. This fan features durable ball bearings and power leads for connection. Its construction includes a PA plastic impeller and plastic housing, boasting an IP24 ingress protection rating. It is suitable for reliable operation within an ambient temperature range of -40 to 85°C.
W3G300-QX25-33 Fan Parameters
Manufacturer: ebmpapst
Model: W3G300-QX25-33
Motor: M3G084-BF
Fan Type: DC Axial Fan
Impeller Diameter: 300 mm
Dimensions: 326 x 326 x 83.5 mm
Rated Voltage: 26 VDC
Operating Voltage Range: 16 ~ 32 VDC
Current Rating: 15.0 A
Power Consumption: 400 W
Speed: 3800 RPM
Bearing Type: Ball Bearing
Termination: Leads
Operating Temperature: -40 ~ 85°C
Impeller Material: PA plastic
Housing Material: Plastic
IP Rating: IP24
Weight: 2.0 kg
Approval Agency: CCC, CSA, UL
Application: This ebmpapst EC axial fan is suitable for applications such as rail transit condenser units, automotive air conditioning, refrigerated display cases, cold storage evaporators, and general industrial cooling.
