Description

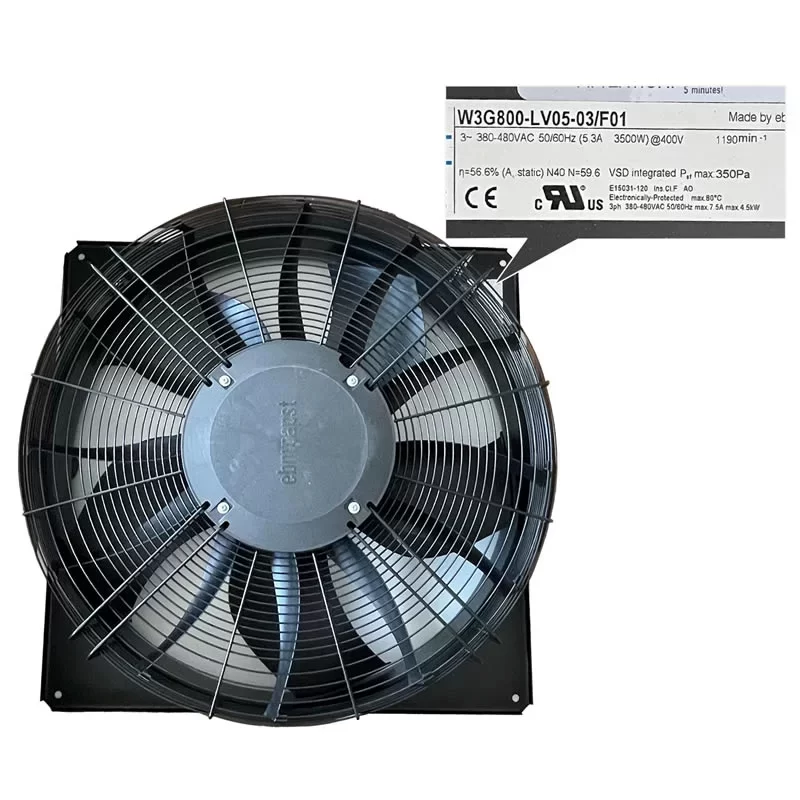

The ebmpapst W3G800-LV05-03/F01 is a high-capacity industrial EC axial fan with a nominal voltage of 400 VAC and dimensions of 970 x 970 x 350 mm, specifically engineered for large-scale air handling units and industrial cooling applications requiring high static pressure. Driven by a high-torque M3G150-NA GreenTech EC external rotor motor with a maximum power consumption of 3500 W and a current draw of 5.3 A, this unit features a heavy-duty dual ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its advanced aerodynamic design, incorporating PP plastic guide vanes and an internal diffuser, delivers a powerful balance of massive airflow and high back pressure up to 350 Pa, making it highly effective at maintaining air circulation in industrial halls and commercial HVAC systems. Constructed with a galvanized and black plastic-coated sheet steel housing and a die-cast aluminum electronics enclosure, this 51.4 kg fan provides a dependable and energy-saving cooling solution with integrated Modbus-RTU interface and thermal overload protection for data centers and large-scale infrastructure at the end.
[W3G800-LV05-03/F01] Fan Parameters
Model Number: W3G800-LV05-03/F01
Manufacturer: ebmpapst
Motor Model: M3G150-NA
Series: W3G Series
Type: EC Axial Fan
Impeller Size: 800 mm
Dimensions: 970 x 970 x 350 mm
Weight: 51.4 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC (3-phase)
Voltage Range: 380 – 480 VAC
Frequency: 50 / 60 Hz
Power Consumption: 3500 W
Nominal Current: 5.3 A
Speed: 1190 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 19225 m³/h (@ optimum efficiency)
Actual Static Pressure: 350 Pa (Max. back pressure)
Overall Efficiency (ηes): 56.6 %
Motor Design: Brushless EC motor (External rotor)
Motor Protection: Thermal overload protection for electronics/motor; Line undervoltage / phase failure detection; Motor current limitation
Technical Features: MODBUS V6.3 (RS-485 MODBUS-RTU); Integrated PI controller; Soft start; External 15-50 VDC input; Alarm relay; Operation/Alarm LED; Configurable I/O; 3.3-24 VDC voltage output
Insulation Class: Class F
Electrical Hookup: Terminal box
Number of Blades: 5
Blade Pitch: 0°
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: V (Exhaust over struts)
Impeller Material: PP plastic
Housing Material: Sheet steel, galvanized and plastic-coated (RAL 9005)
Electronics Housing: Die-cast aluminum, painted gray
Guide Vanes Material: PP plastic
Internal Diffuser Material: PP plastic
Guard Grille Material: Steel, plastic-coated (RAL 9005)
Installation Position: Shaft horizontal or rotor on bottom
Degree of Protection: IP55
Environmental Protection: H2
Operating Temperature: -40 – +60 °C
Storage Temperature: -40 – +80 °C
Standard Compliance: EN 61800-5-1; CE; EN 61000-6-2/3
Approval Agency: EAC; UL 1004-7; CSA C22.2 No. 77
Application
The ebmpapst W3G800-LV05-03/F01 EC fan is primarily utilized in large air handling units, industrial ventilation systems, data center cooling walls, and rooftop HVAC heat exchangers.
