W3G910-LV12-03/F01 ebmpapst 400V 910mm EC Axial Fan

Description

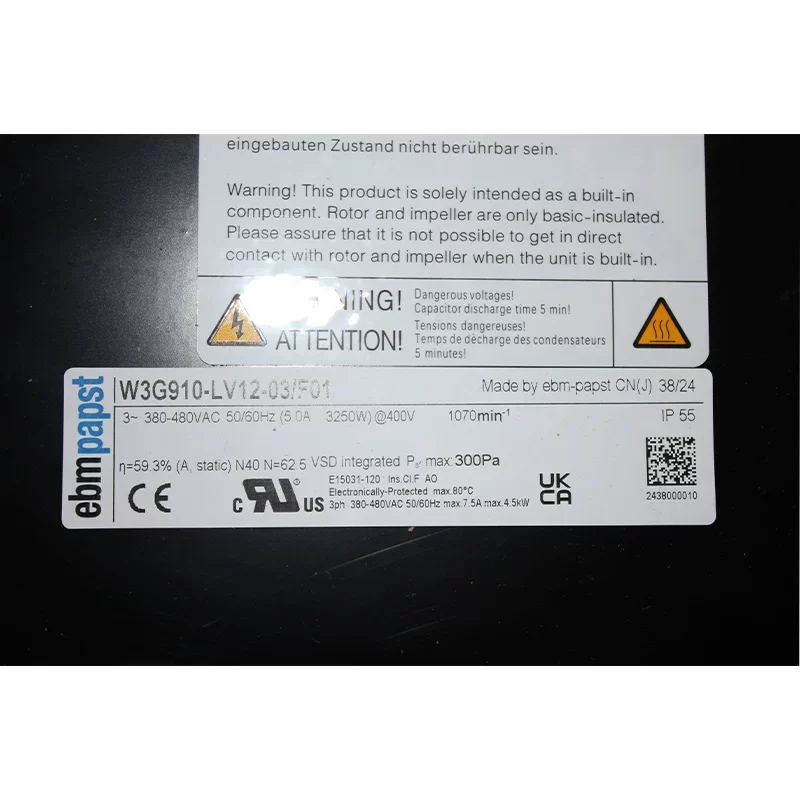

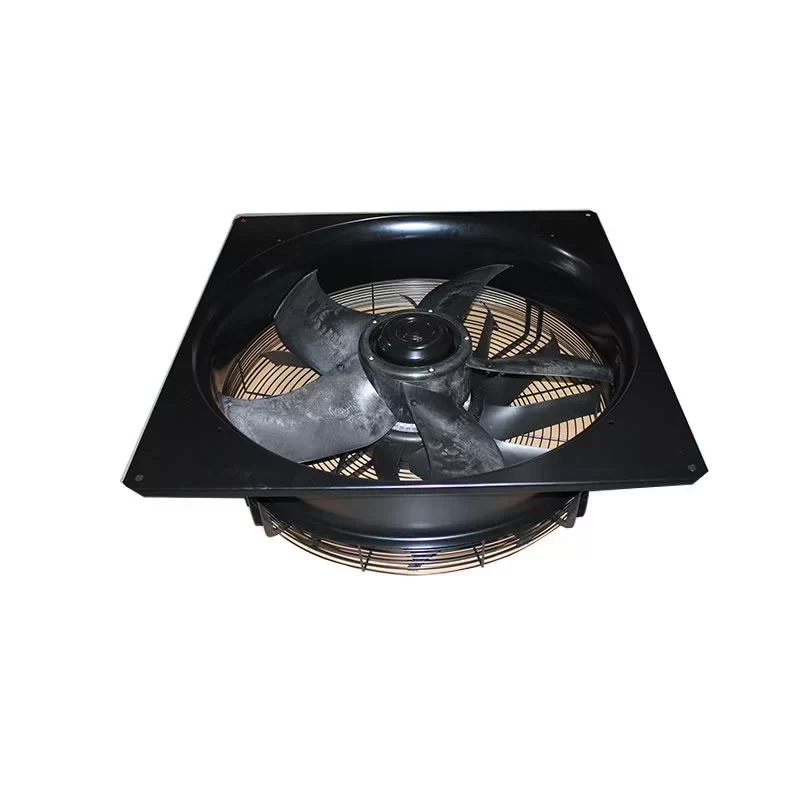

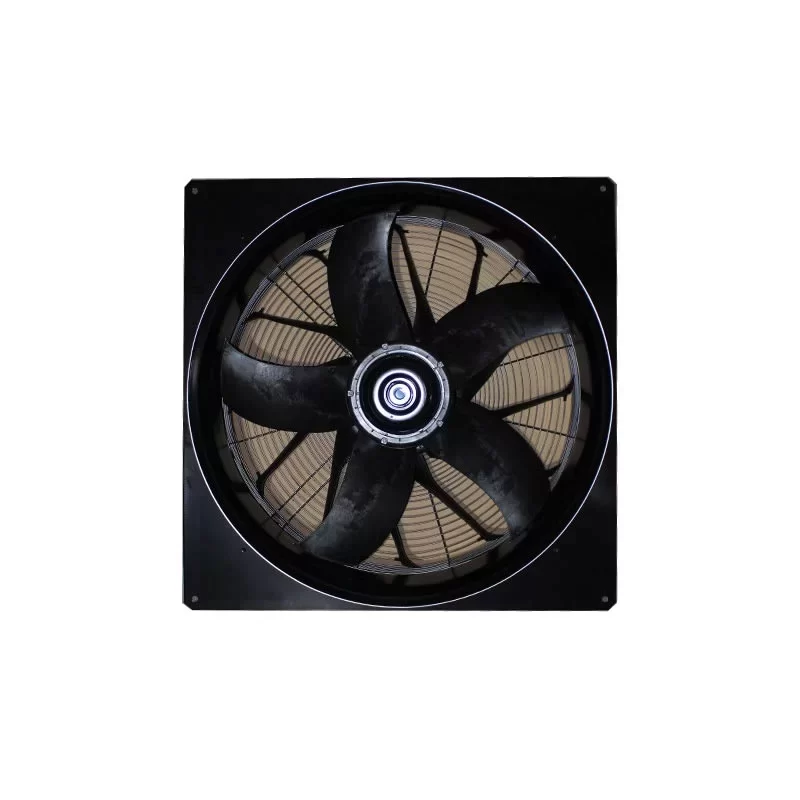

The ebmpapst W3G910-LV12-03/F01 is a high-capacity industrial EC Axial Fan powered by the high-torque M3G150-NA motor, featuring a 910 mm impeller designed for massive air movement in large-scale cooling infrastructures. Operating on a 3-phase 400 VAC supply, this unit is rated at a nominal speed of 1070 RPM with a power consumption of 3250 W and a current draw of 5.0 A. The fan is mounted within a robust 1070 x 1070 x 321 mm square wall plate assembly, providing both structural stability and optimized airflow characteristics for heavy-duty installations. Built with a 5-blade PP plastic impeller and weighing 54.6 kg, the fan delivers a maximum back pressure of 300 Pa (1.2 in. wg) while maintaining an IP55 protection rating. It represents a state-of-the-art thermal solution for data center chillers and industrial HVAC systems, combining ebmpapst’s signature EC efficiency with advanced features like soft start, motor current limitation, and an integrated PI controller.

W3G910-LV12-03/F01 Fan Parameters
Manufacturer: ebmpapst
Model Number: W3G910-LV12-03/F01
Motor Model: M3G150-NA
Motor Design: EC Motor (Electronically Commutated)
Type: EC Axial Fan
Nominal Voltage: 400 VAC (3-phase)
Voltage Range: 380 – 480 VAC
Frequency: 50/60 Hz
Dimensions: 1070 x 1070 x 321 mm
Impeller Size: 910 mm
Number of Blades: 5
Weight: 54.6 kg

[Electrical Data]
Nominal Speed: 1070 RPM
Power Consumption: 3250 W
Current Draw: 5.0 A
Control Interface: RS-485 MODBUS-RTU (V6.3), 0-10V, PWM
Voltage Output: 3.3 – 24 VDC (Pmax = 800 mW)
External Input: 15 – 50 VDC (for parameterization)
Motor Bearing: Ball Bearing
Protection Class: I (with protective earth)
Insulation Class: F
Environmental Protection: H2

[Performance & Acoustics]
Max. Air Flow: ~35000 m³/h
Max. Back Pressure: 300 Pa (1.2 in. wg)
Direction of Rotation: Clockwise (looking at rotor)
Airflow Direction: V (Exhaust over struts)
Mode of Operation: S1 (Continuous operation)

[Materials & Construction]
Housing Material: Sheet steel, galvanized and black plastic coated (RAL 9005)
Impeller Material: PP plastic
Rotor Surface: Painted black
Electronics Housing: Die-cast aluminum, painted gray
Guard Grille Material: Steel, black plastic coated (RAL 9005)
Installation Position: Shaft horizontal or rotor on bottom

[Reliability & Protection]
Degree of Protection: IP55
Min. Ambient Temperature: -40 °C (Occasional start-up permitted)
Max. Ambient Temperature: 60 °C
Technical Features: Soft start, Integrated PI controller, Alarm relay, Motor current limitation
EMC Immunity: According to EN 61000-6-2 (Industrial)
EMC Emission: According to EN 61000-6-3 (Household)
Approval: CE, UKCA, UL 1004-7, CSA C22.2 No. 77, EAC

Application
The W3G910-LV12-03/F01 is specifically utilized in large-scale commercial rooftop condensers and industrial fluid coolers where its 1070mm square wall plate and 910mm impeller provide the structural footprint and 300 Pa back pressure capability essential for overcoming high system resistance in mission-critical data center cooling towers and heavy-duty refrigeration plants requiring robust 54.6 kg hardware and seamless MODBUS integration for real-time efficiency optimization.
