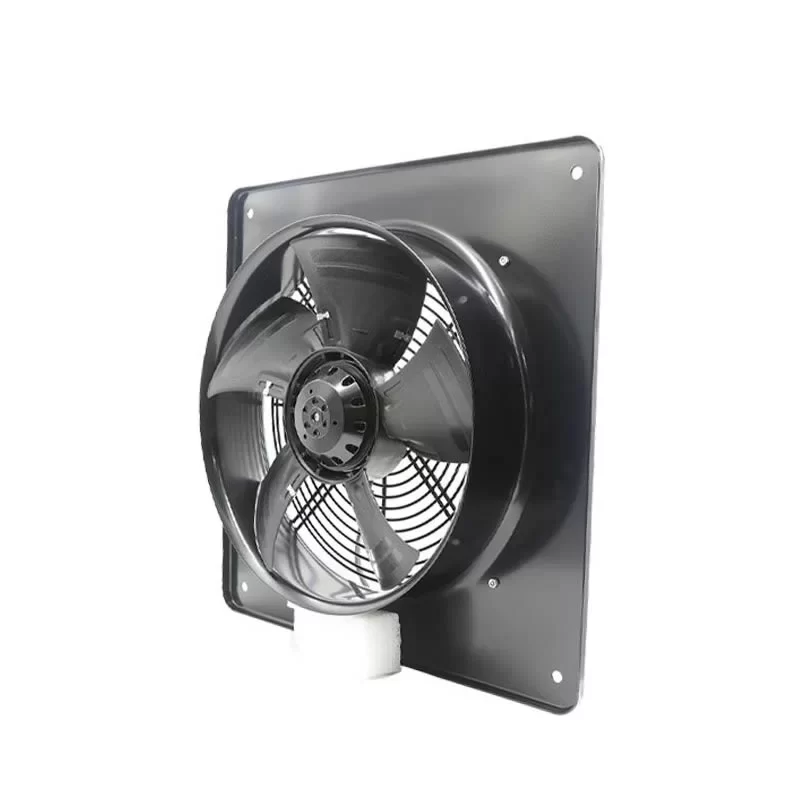

W4D300-DT04-09 ebmpapst 230/400/460V 300mm AC Axial Fan

Description

The ebmpapst W4D300-DT04-09 is a high-performance 230/400/460 V industrial AC axial fan with an impeller size of 300 mm, purpose-built to deliver elite-level thermal cooling in high-resistance airflow paths. This unit features a heavy-duty M4D068-DF external rotor motor capable of sustaining power inputs ranging from 65 W to 100 W to drive its specialized 5-blade PP plastic impeller at speeds up to 1600 RPM. Engineered specifically for air displacement in medium-scale cooling systems, it utilizes a 300 mm diameter housing to provide balanced pressure and airflow for mission-critical hardware. The mechanical design relies on precision maintenance-free ball bearings and a galvanized sheet steel frame coated with black plastic (RAL 9005) to ensure reliable continuous operation across an ambient temperature range of -25 °C to 70 °C. Featuring a versatile 3-phase electrical interface supporting Delta (230 VAC) or Star (400/460 VAC) wiring, this fan is a critical component for condenser cooling, industrial refrigeration, and power electronics thermal management where long-term durability and high aerodynamic efficiency are mandatory.

W4D300-DT04-09 Fan Parameters
Manufacturer: ebmpapst
Model Number: W4D300-DT04-09
Motor Model: M4D068-DF
Series: AC Axial Series
Fan Size: 300 mm
Type: AC Axial Fan
Dimensions: 430 x 430 x 83mm
Bearing Type: Ball Bearing
Nominal Voltage: 230 VAC (Delta) / 400 VAC (Star) / 460 VAC (Star)
Voltage Range: 220 – 480 VAC
Frequency: 50/60 Hz
Weight: 3000 g

[Electrical Data]
Input Power: 65 W (50 Hz) / 90 W (60 Hz) / 100 W (460V 60 Hz)
Nominal Current (400V): 0.16 A (50 Hz) / 0.17 A (60 Hz)
Nominal Current (230V): 0.28 A (50 Hz) / 0.29 A (60 Hz)
Nominal Current (460V): 0.17 A (60 Hz)
Nominal Speed: 1350 RPM (50 Hz) / 1530 RPM (60 Hz) / 1600 RPM (460V)
Motor Design: AC External Rotor Motor (3-Phase)
Wiring: Δ (Delta) for 230V / Y (Star) for 400V and 460V
Motor Protection: Thermal overload protector (TOP) with basic insulation
Insulation Class: Class F
Touch Current: < 0.75 mA
Termination: Lateral cable

[Performance & Acoustics]
Max. Air Flow: 1306.6 CFM (2220 m³/h / 37.0 m³/min)
Max. Static Pressure: 8.16 mmH₂O (80.0 Pa / 0.32 inAq)
Number of Blades: 5
Direction of Rotation: Counter-clockwise (Viewed toward rotor)
Airflow Direction: “V” (Exhaust over struts)
Mode of Operation: S1 (Continuous operation)

[Materials & Construction]
Fan Housing Material: Sheet steel, galvanized, black plastic coated (RAL 9005)
Blade Material: PP plastic
Guard Grille Material: Steel, black plastic coated (RAL 9005)
Rotor Surface: Painted black
Installation Position: Shaft horizontal or rotor on bottom
Condensation Drainage: Rotor side holes
Degree of Protection: IP44
Environmental Protection Class: H1

[Reliability & Safety Standards]
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 70 °C
Storage Temperature: -40 °C – 80 °C
Standard Compliance: EN 60335-1, CE
Approval Agency: UL 1004-1, CSA C22.2 No. 100

Application
The ebmpapst W4D300-DT04-09 axial fan is used in commercial refrigeration condensers, industrial heat exchangers, air conditioning units, cooling for electrical cabinets, and small-scale ventilation systems.
