Description

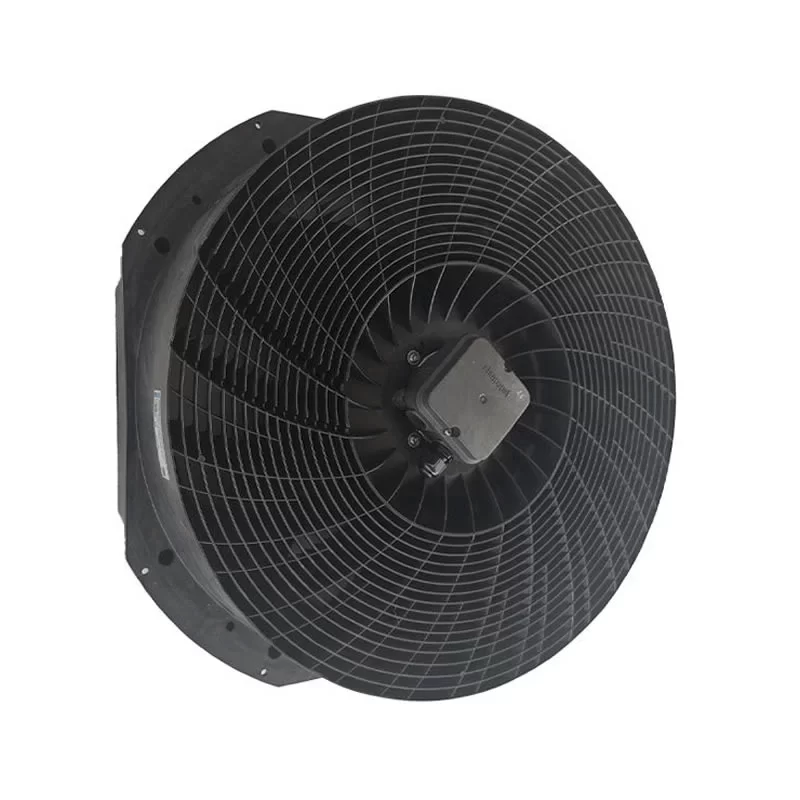

The ebmpapst W4D500-ZL09-01 is a versatile industrial AC axial fan with a nominal voltage of 400/480 VAC and dimensions of 600 x 600 x 256 mm, engineered for high-efficiency thermal management in refrigeration and industrial ventilation. Driven by a multi-phase M4D110-GF external rotor motor with power ratings from 475 W to 1090 W depending on wiring configuration (Δ/Y), this unit features a heavy-duty dual ball bearing system designed for long-term mechanical stability and continuous S1 duty. Its aerodynamic design with a 500 mm impeller, constructed from PP plastic and galvanized sheet-metal, delivers a robust airflow of 5810 m³/h at its optimum efficiency point while maintaining high static pressure capability. Built with a PP plastic fan housing and a terminal box for flexible electrical hookup, this 14.58 kg fan provides a dependable and weather-resistant cooling solution with IP54 protection and H2 environmental class for industrial condensers, dry coolers, and large-scale HVAC units at the end.
W4D500-ZL09-01 Fan Parameters
Model Number: W4D500-ZL09-01
Manufacturer: ebmpapst
Motor Model: M4D110-GF
Series: W4D Series
Type: AC Axial Fan
Impeller Size: 500 mm
Dimensions: 600 x 600 x 256 mm
Weight: 14.58 kg
Bearing Type: Ball bearing
Nominal Voltage: 400 VAC / 480 VAC (3-phase)
Voltage Range: 380 – 480 VAC
Frequency: 50 / 60 Hz

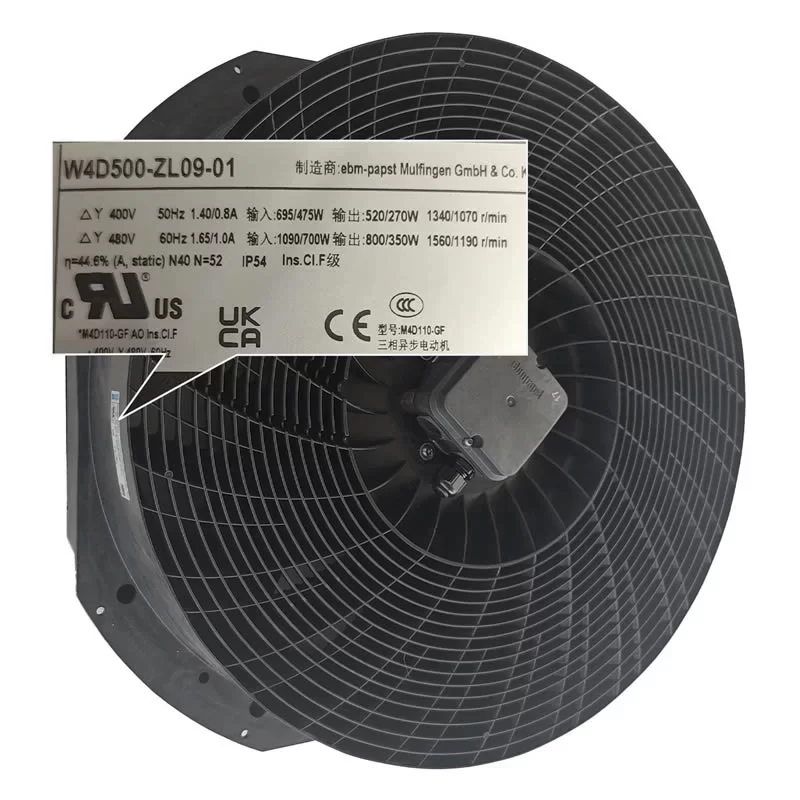

Power Consumption: 695 W (400V Δ 50Hz) / 475 W (400V Y 50Hz) / 1090 W (480V Δ 60Hz)
Nominal Current: 1.4 A (400V Δ 50Hz) / 0.8 A (400V Y 50Hz) / 1.65 A (480V Δ 60Hz)
Speed: 1340 RPM (50Hz) / 1560 RPM (60Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 5810 m³/h (@ optimum efficiency)
Actual Static Pressure: 220 Pa (Max. back pressure @ 50Hz Δ)
Overall Efficiency (ηes): 44.6 %
Motor Design: Three-phase AC external rotor motor
Motor Protection: Thermal switch auto reset (TOP) wired internally
Technical Features: Star-delta (Δ/Y) wiring; Soft start; Moisture protection
Insulation Class: Class F
Electrical Hookup: Terminal box

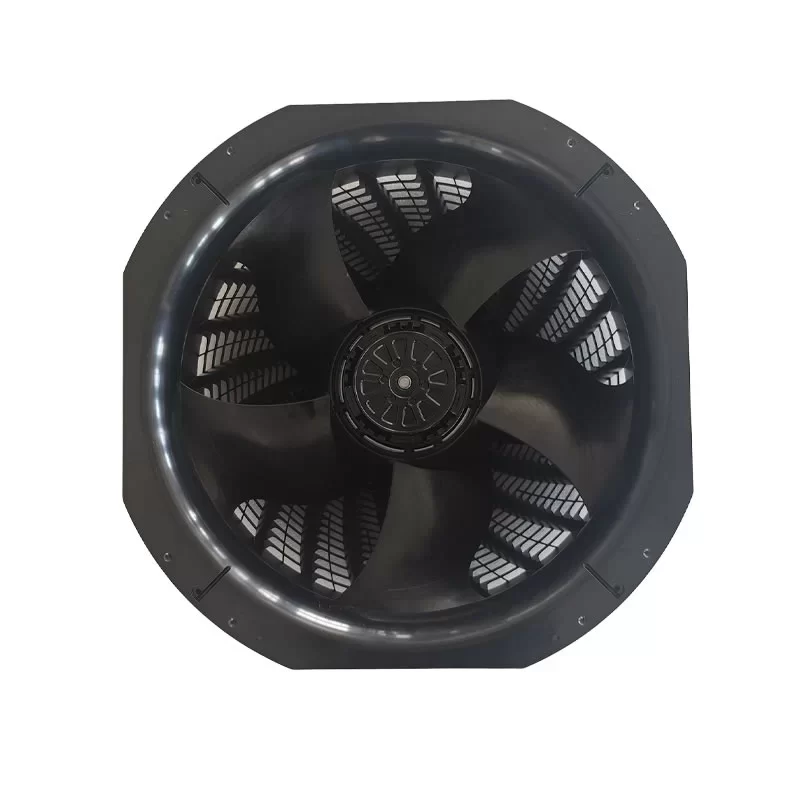

Number of Blades: 5
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: V (Exhaust over struts)
Impeller Material: PP plastic, galvanized sheet-metal plate
Housing Material: PP plastic
Terminal Box Material: PP plastic
Installation Position: Shaft horizontal or rotor on bottom
Degree of Protection: IP54
Environmental Protection: H2
Operating Temperature: -40 – +60 °C
Standard Compliance: EN 60034-1; CE
Approval Agency: CSA C22.2 No. 100; EAC; UL 1004-1
Application
The ebmpapst W4D500-ZL09-01 AC fan is primarily utilized in industrial refrigeration condensers, dry coolers, air conditioning units, and large-scale ventilation systems for heat exchangers.
