Description

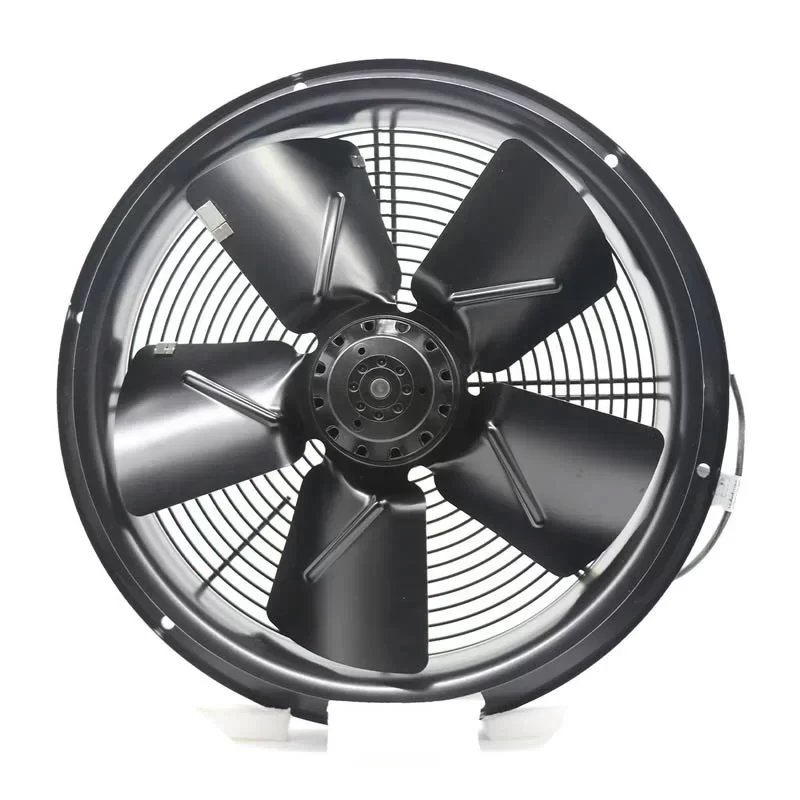

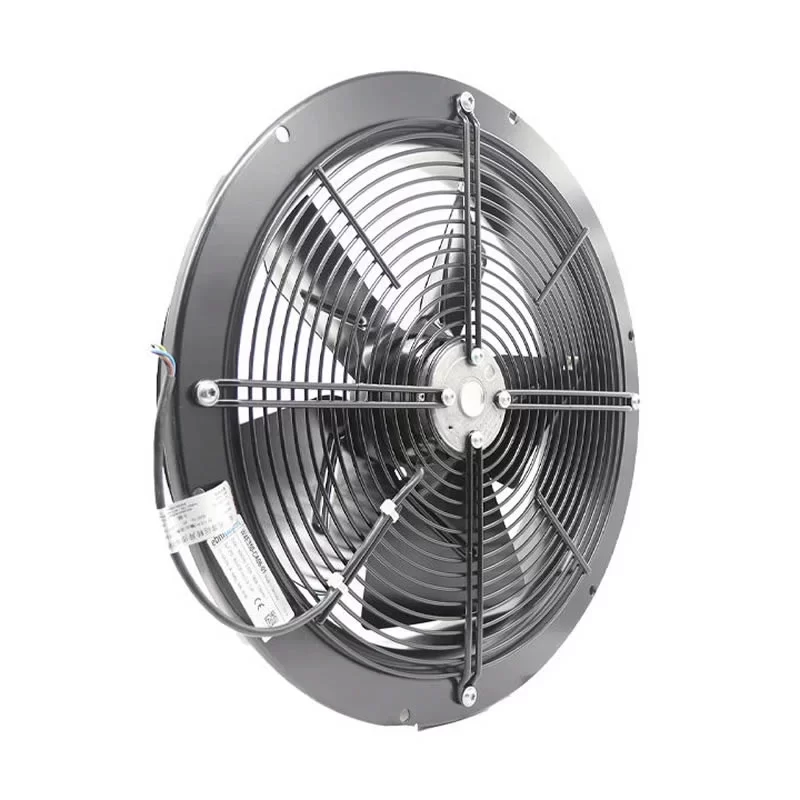

The ebmpapst W4E350-CA06-01 is a high-performance industrial AC axial fan with a nominal voltage of 230 VAC and dimensions of 460 x 460 x 84.5 mm, specifically engineered for space-constrained thermal management in commercial refrigeration and HVAC systems. Driven by a robust single-phase M4E068-EC external rotor motor with a power consumption of 140 W at 50 Hz and 195 W at 60 Hz, this unit features a heavy-duty dual ball bearing system designed for continuous S1 duty. Its aerodynamic design with a 350 mm sheet steel impeller delivers powerful air circulation in a compact form factor, reaching a rated speed of 1390 RPM at 50 Hz. Built with a galvanized sheet-steel housing and guard grille coated in black plastic (RAL 9005), this 5.7 kg fan provides a dependable and weather-resistant cooling solution with IP44 protection and H1 environmental class for commercial condensers, heat pumps, and industrial ventilation infrastructure at the end.
W4E350-CA06-01 Fan Parameters
Model Number: W4E350-CA06-01
Manufacturer: ebmpapst
Motor Model: M4E068-EC
Series: W4E Series
Type: AC Axial Fan
Impeller Size: 350 mm
Dimensions: 460 x 460 x 84.5 mm
Weight: 5.7 kg
Bearing Type: Ball bearing
Nominal Voltage: 230 VAC (Single-phase)
Voltage Range: 220 – 240 VAC
Frequency: 50 / 60 Hz
Power Consumption: 140 W (50 Hz) / 195 W (60 Hz)
Nominal Current: 0.62 A (50 Hz) / 0.86 A (60 Hz)
Speed: 1390 RPM (50 Hz) / 1550 RPM (60 Hz)
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Static Pressure: 120 Pa (Max. back pressure @ 50 Hz)

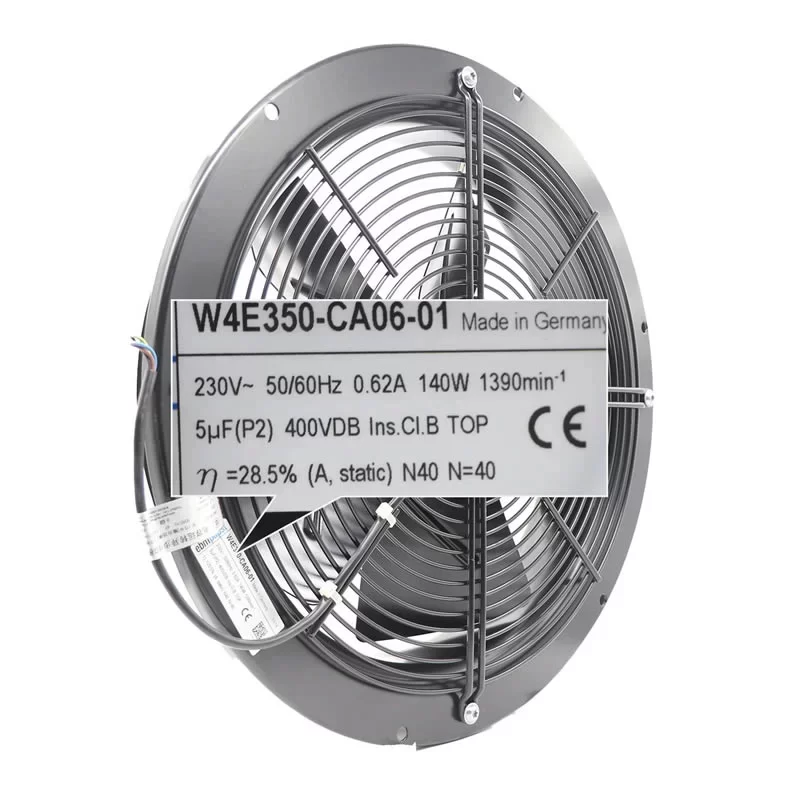

Capacitance: 5.0 µF / 400 VDB (S0)
Motor Design: Single-phase AC external rotor motor
Motor Protection: Thermal overload protector (TOP) internally connected
Insulation Class: Class B
Electrical Hookup: Lateral cable
Number of Blades: 5
Direction of Rotation: Counterclockwise, viewed toward rotor
Airflow Direction: V (Exhaust over struts)
Impeller Material: Sheet steel, painted black
Housing Material: Sheet steel, galvanized and plastic-coated (RAL 9005)
Guard Grille Material: Steel, plastic-coated (RAL 9005)
Installation Position: Shaft horizontal or rotor on bottom
Degree of Protection: IP44
Environmental Protection: H1
Operating Temperature: -25 – +50 °C (50 Hz) / -25 – +30 °C (60 Hz)
Standard Compliance: EN 60034-1; EN 60204-1; EN 60335-1
Approval Agency: CCC; EAC
Application
The ebmpapst W4E350-CA06-01 AC fan is primarily utilized in commercial refrigeration condensers, heat pumps, air conditioning units, and small-scale industrial ventilation systems.
