Description

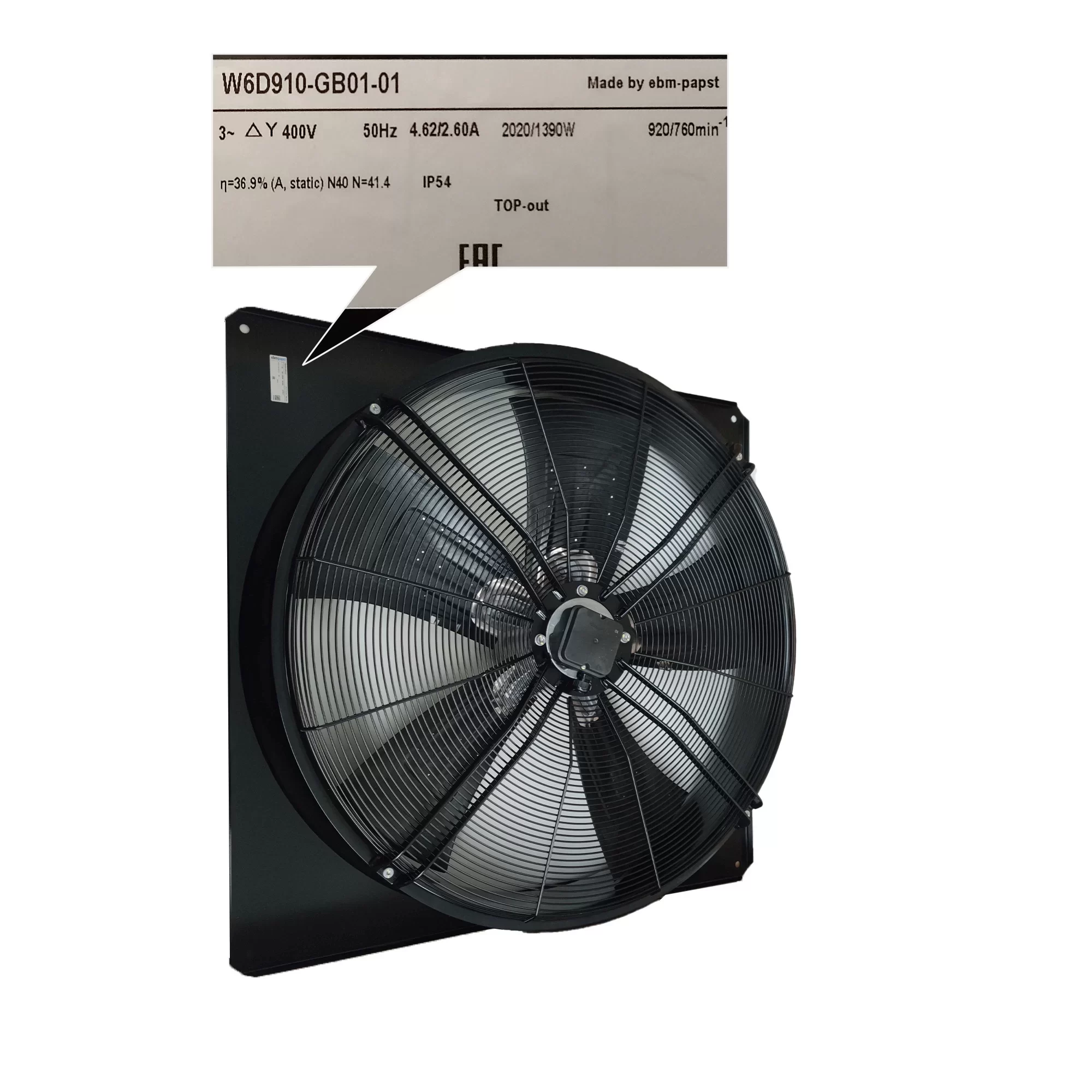

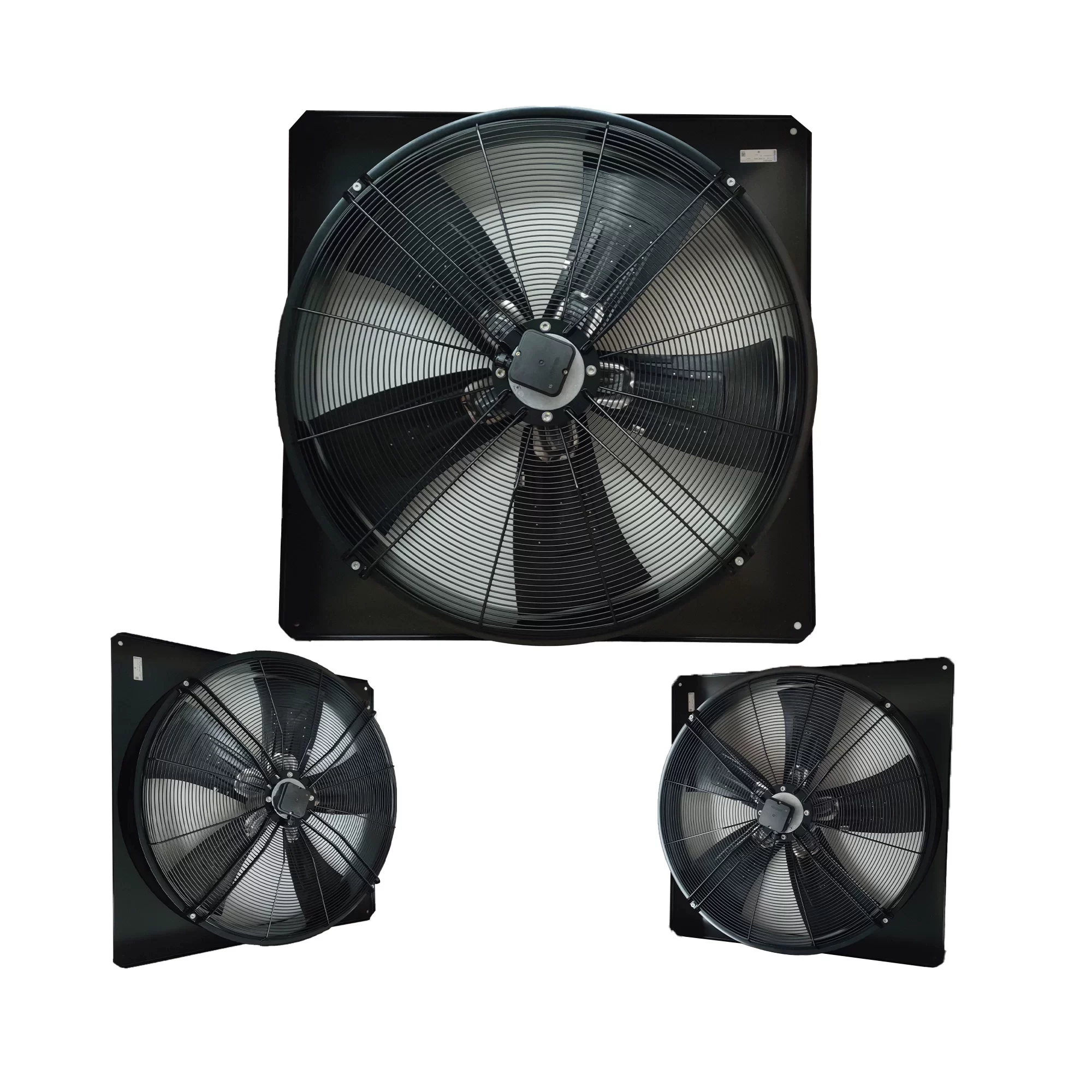

The ebmpapst W6D910-GB01-01 is an AC Axial Fan with a three-phase motor measuring 910mm in diameter. It operates on 400VAC at 50Hz, with performance varying based on the motor connection. When configured for a Y (star) connection, it draws 2.6A of current, consumes 1390W of power, and achieves a speed of 760 RPM. With a Δ (delta) connection, the fan draws 4.62A, consumes 2020W of power, and runs at 920 RPM. The fan features a durable ball bearing system, a motor with F insulation class, and a protection level of IP54. It has a total mass of 52.4 kg, and its approvals include VDE.
W6D910-GB01-01 Fan Parameters
Model: W6D910-GB01-01
Manufacturer: ebmpapst
Type: AC Axial Fan with Three-Phase Motor
Motor: M6D138-NA
Dimensions: 910 mm diameter
Mass: 52.4 kg
Number of Blades: 5
Blade Angle: -5°
Direction of Airflow: “V”
Direction of Rotation: Clockwise, seen on rotor
Insulation Class: “F”
Humidity Class: F3-1
Protection Class: I (if protective earth is connected by customer)
Degree of Protection: IP54
Motor Bearing: Ball bearing
Touch Current: <= 3.5 mA
Motor Protection: Thermal overload protector (TOP) brought out
Electrical Leads: Via terminal box
Cable Exit: Axial
Material of Terminal Box: PP plastic
Surface of Rotor: Cast in aluminium
Material of Blades: Aluminium sheet insert, sprayed with PP plastic
Material of Wall Ring: Sheet steel, pre-galvanised and coated in black plastic (RAL 9005)
Material of Guard Grille: Steel, coated in black plastic (RAL9005)
Mounting Position: Any
Condensate Discharge Holes: On rotor and stator sides
Operation Mode: S1
Min. Permissible Ambient Motor Temp: -40 °C
Max. Permissible Ambient Motor Temp: +80 °C
Product Conforming to Standard: EN 60034; EN 61800-5-1; CE
Approval: VDE
50Hz Performance (Y-connection)
Nominal Voltage: 400 VAC
Connection: Y
Speed: 760 min-1
Power Input: 1390 W
Current Draw: 2.6 A
Max. Back Pressure: 105 Pa
Starting Current: 6.2 A
50Hz Performance (Δ-connection)
Nominal Voltage: 400 VAC
Connection: Δ
Speed: 920 min-1
Power Input: 2020 W
Current Draw: 4.62 A
Max. Back Pressure: 160 Pa
Starting Current: 18.6 A
Application: Ventilation and air handling applications.
