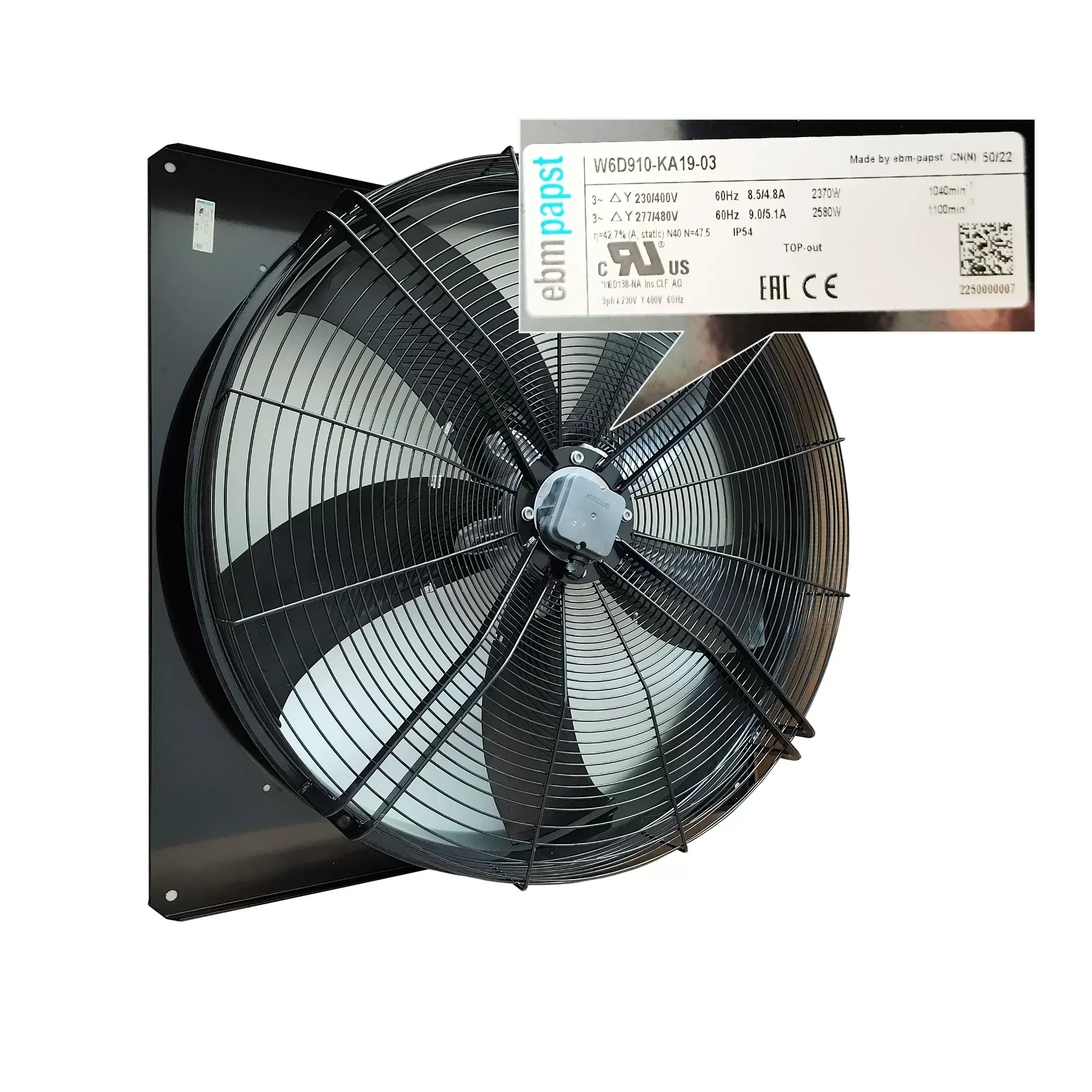

W6D910-KA19-03 ebmpapst AC axial fan

Description

The ebmpapst W6D910-KA19-03 is a high-performance AC axial fan measuring 910mm in diameter, engineered for substantial air movement in demanding environments. It operates on versatile 3-phase 230/400/277/480 VAC at 50/60 Hz, with specific current, power, and speed ratings detailed in its parameters. This robust fan delivers a powerful airflow of up to 18755 m³/h, utilizing durable ball bearings and connecting via a terminal box. Its IP54 ingress protection, sheet steel housing, and plastic (PP) impeller ensure reliability in industrial settings. Equipped with thermal overload protection and protection class I, the W6D910-KA19-03 is an ideal solution for large-scale cooling applications, such as air conditioning systems and cooling towers.

W6D910-KA19-03 Fan Parameters
Model: W6D910-KA19-03
Manufacturer: ebmpapst
Type: AC Axial Fan
Fan Diameter: 910 mm
Rated Voltage: 3~ 230/400/277/480 VAC
Frequency: 50/60 Hz
Rated Current:
50 Hz: 8.2 A
60 Hz (230/400V): 8.5 A / 4.8 A
60 Hz (277/480V): 9.0 A / 5.1 A
Power Consumption:
50 Hz: 1920 W
60 Hz (230/400V): 2370 W
60 Hz (277/480V): 2580 W
Speed:
50 Hz: 2550 RPM
60 Hz (230/400V): 1040 RPM
60 Hz (277/480V): 1100 RPM
Airflow: 18755 m³/h
Max. Back Pressure: 180 Pa (at 50 Hz) / 125 Pa (at 60 Hz)
Bearing Type: Ball Bearing
Termination: Terminal box
Motor Type: M6D138-NA
Airflow Direction: V
Direction of Rotation: Clockwise, viewed toward rotor
Ingress Protection: IP54
Insulation Class: F
Motor Protection: Thermal overload protector (TOP)
Protection Class: I (with customer connection of protective earth)
Conformity: EN 60034-1
Approval: EAC, UL 1004-1, CSA C22.2 No. 100
Operating Temperature: -40 to 65°C
Installation Position: Any
Application: Air conditioning, cooling towers, industrial cooling systems.
Weight: 54.5 kg
