Description

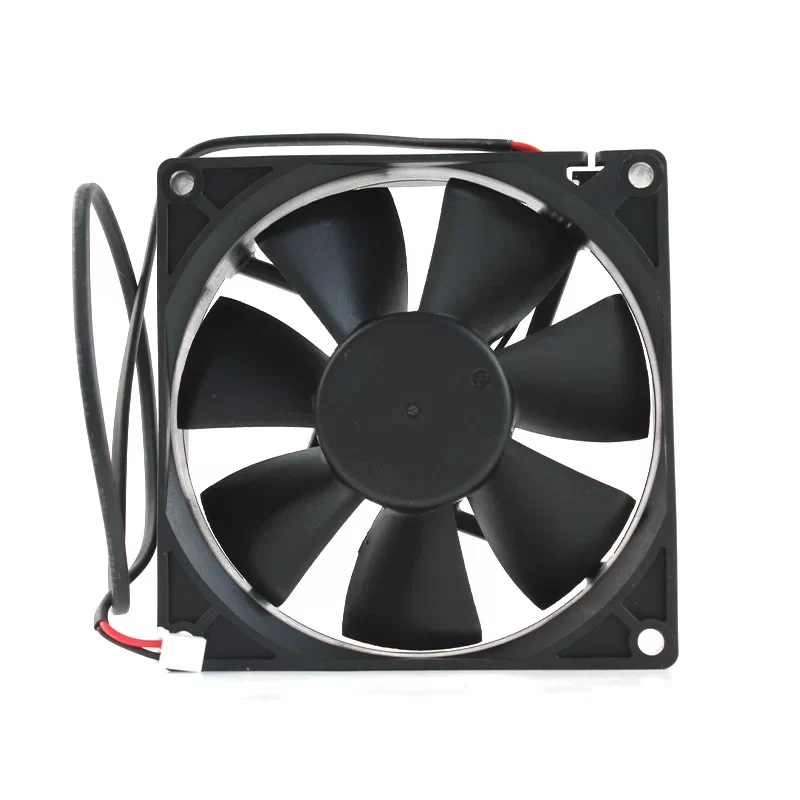

The YH-XQF X9225D24MB is a 24VDC DC Axial Fan with dimensions of 92 x 92 x 25 mm, specifically optimized for thermal management in industrial frequency converters (VFDs) and heavy-duty truck electrical systems. This 92 mm unit is driven by a brushless DC motor with maintenance-free ball bearings and a simplified 2-wire lead wire connection. Operating on a 24 VDC supply (Nominal Voltage Range: 14.0 – 27.6 VDC), it delivers a Max. Power Consumption of 4.8 W and a Max. Current Draw of 0.20 A at a rated speed of 3200 RPM. This unit provides a Max. Air Flow of 58.0 CFM (98.5 m³/h / 1.64 m³/min) and a Max. Static Pressure of 5.40 mmH₂O (53.0 Pa / 0.21 inAq). Featuring a rugged PBT thermoplastic housing and impeller (UL 94V-0), it ensures high-performance cooling for sensitive power electronics and maintains an extended service life in continuous S1 environments at the end.
X9225D24MB Fan Parameters
Model Number: X9225D24MB
Manufacturer: YH-XQF
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Weight: 95 g
Bearing Type: Ball bearing
Nominal Voltage: 24 VDC
Voltage Range: 14.0 – 27.6 VDC
Current Draw: 0.20 A
Max. Power Consumption: 4.8 W
Rated Speed: 3200 RPM
Max. Air Flow: 58.0 CFM (98.5 m³/h / 1.64 m³/min)
Max. Static Pressure: 5.40 mmH₂O (53.0 Pa / 0.21 inAq)
Noise Level: 38.0 dB(A)
Impeller Material: Thermoplastic PBT (UL 94V-0)
Housing Material: Thermoplastic PBT (UL 94V-0)
Direction of Rotation: Counter-clockwise (viewed toward rotor)
Direction of Airflow: Suction over struts
Insulation Class: “A”
Motor Protection: Polarity and locked rotor protection
Connection: 2-Wire Lead Wires
Mode: S1
Protection Class: III
Operating Temperature: -10 to +70 °C
Storage Temperature: -40 to +80 °C
Standard Compliance: CE; RoHS
Application
The YH-XQF X9225D24MB fan is the primary cooling component for industrial frequency converters (VFD), high-power inverters, and truck electrical cabinets requiring efficient 24V DC axial airflow in a 92mm form factor.
