Description

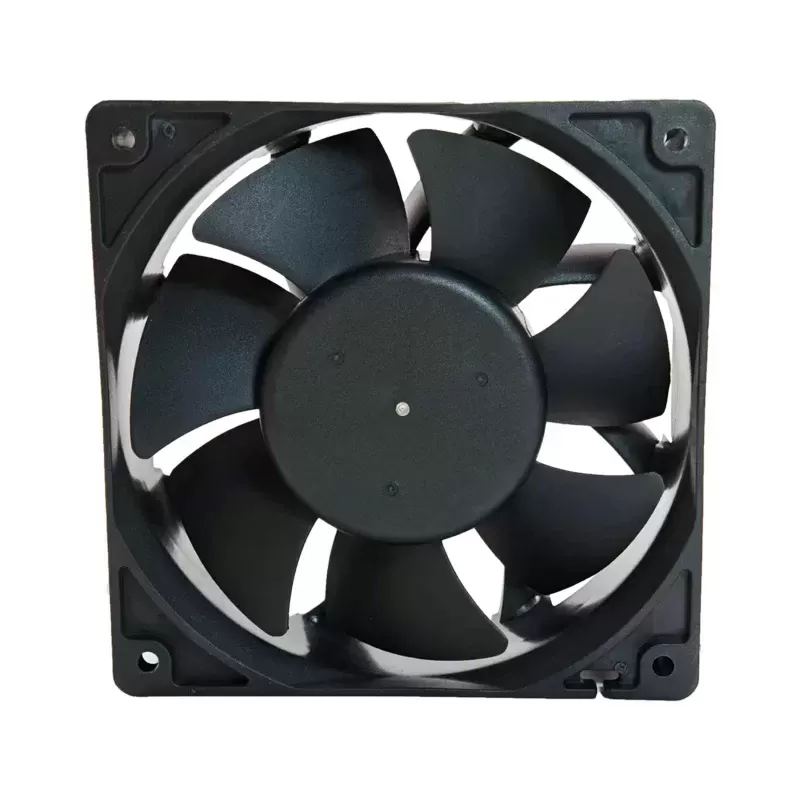

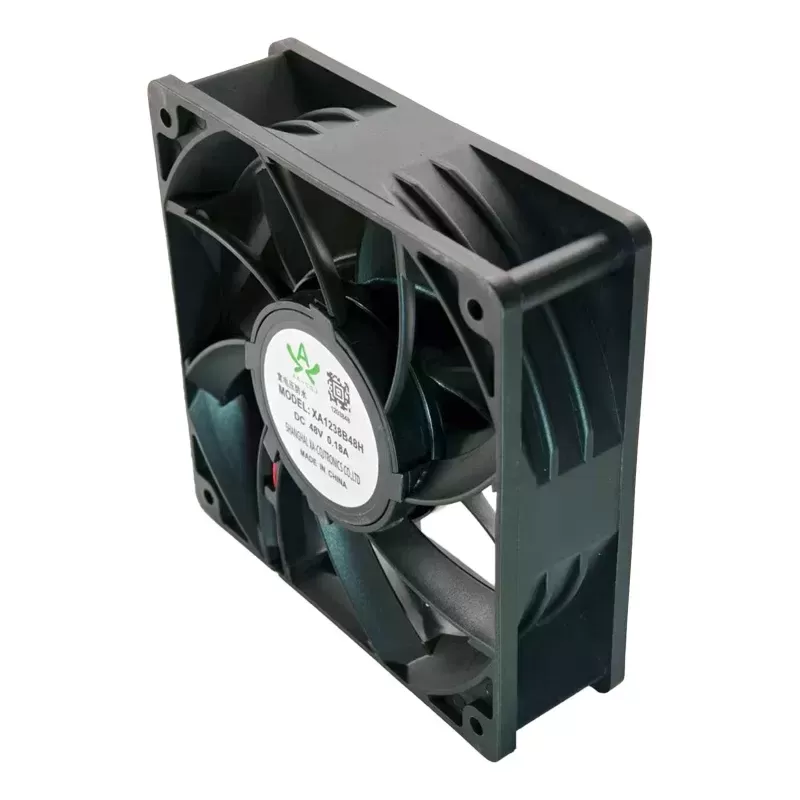

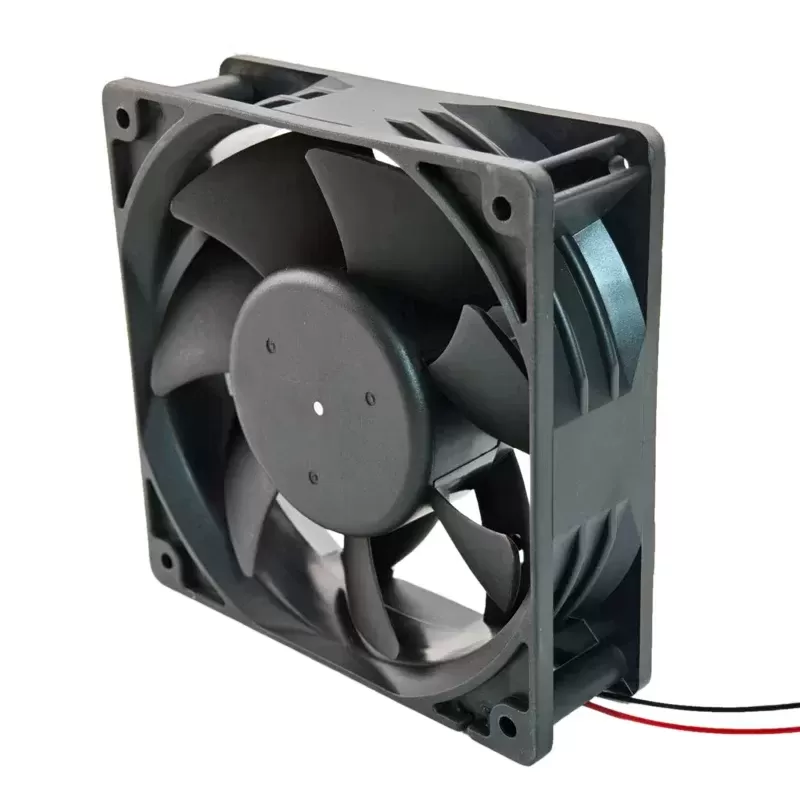

The XA-CQJ XA1238B48H is a DC axial fan measuring 120x120x38mm. It operates on 48 VDC, drawing 0.48 A of current, with a power consumption of 23.04 W. Constructed with a plastic frame and blades, this fan is IP68 waterproof, making it highly resistant to dust and immersion in water. It connects via 2-wire Leads. Further specific performance details such as speed, airflow, and noise level for this exact model and manufacturer are not publicly available. This fan is designed for demanding applications such as commercial humidifiers and other uses requiring robust water and dust protection.
XA1238B48H Fan Parameters
Model: XA1238B48H
Manufacturer: XA-CQJ
Type: DC Axial Fan
Dimensions: 120x120x38 mm
Rated Voltage: 48 VDC
Rated Current: 0.48 A
Power Consumption: 23.04 W
Termination: 2-wire Leads
IP Rating: IP68
Material Frame: Plastic
Material Blade: Plastic
Application: Commercial humidifiers, applications requiring water and dust protection.
