Description

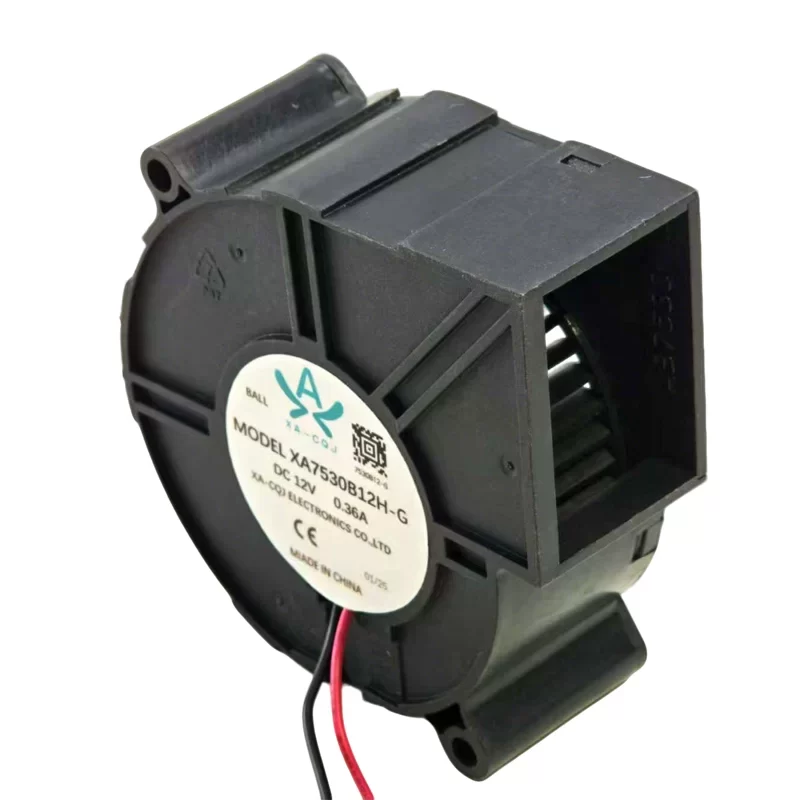

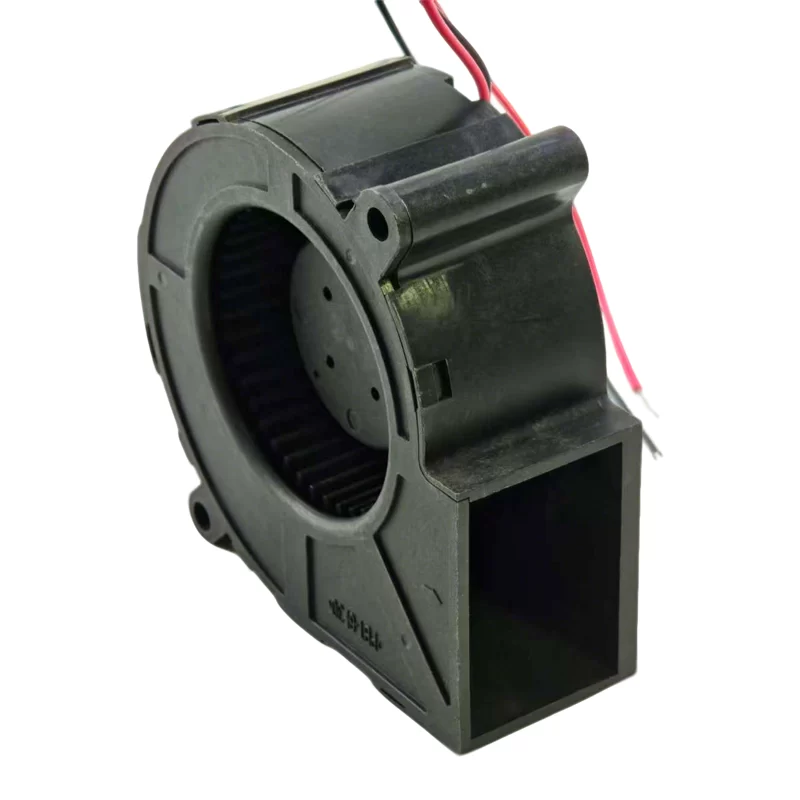

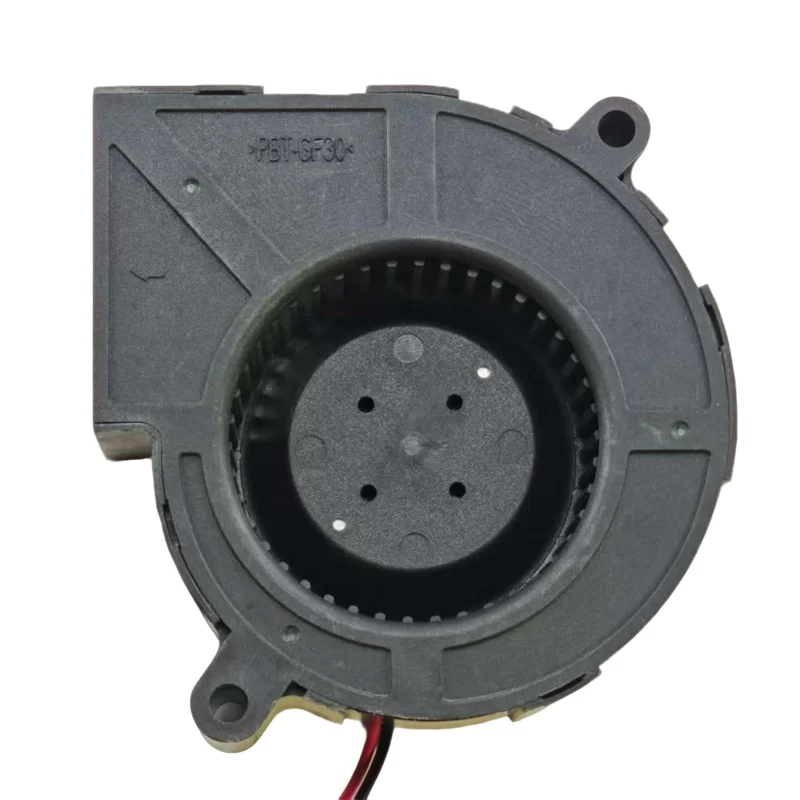

The XA-CQJ XA7530B12H-G is a DC blower fan with dimensions of 70 x 70 x 30 mm. It operates on 12V DC, drawing 0.36 A of current and consuming 4.32 W of power. This fan delivers an airflow of 16.5 CFM (28.0 m³/h) with a static pressure of 1.0 inch H₂O (249 Pa). It runs at a speed of 4800 RPM, producing a noise level of 53.0 dB(A). The fan uses ball bearings for reliability and is terminated with two-wire leads. It operates within a temperature range of -10 °C to 60 °C.
XA7530B12H-G Fan Parameters
Manufacturer: XA-CQJ
Model: XA7530B12H-G
Fan Type: DC Blower
Dimensions: 70 x 70 x 30 mm
Rated Voltage: 12V DC
Current Rating: 0.36 A
Power Consumption: 4.32 W
Airflow: 16.5 CFM (28.0 m³/h)
Static Pressure: 1.0 inch H₂O (249 Pa)
Speed: 4800 RPM
Noise Level: 53.0 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10 °C ~ 60 °C
Application
The XA7530B12H-G blower fan is designed for applications requiring concentrated airflow and higher static pressure, such as in cooling electronic enclosures, industrial equipment, and ventilation systems where directed airflow is essential.
