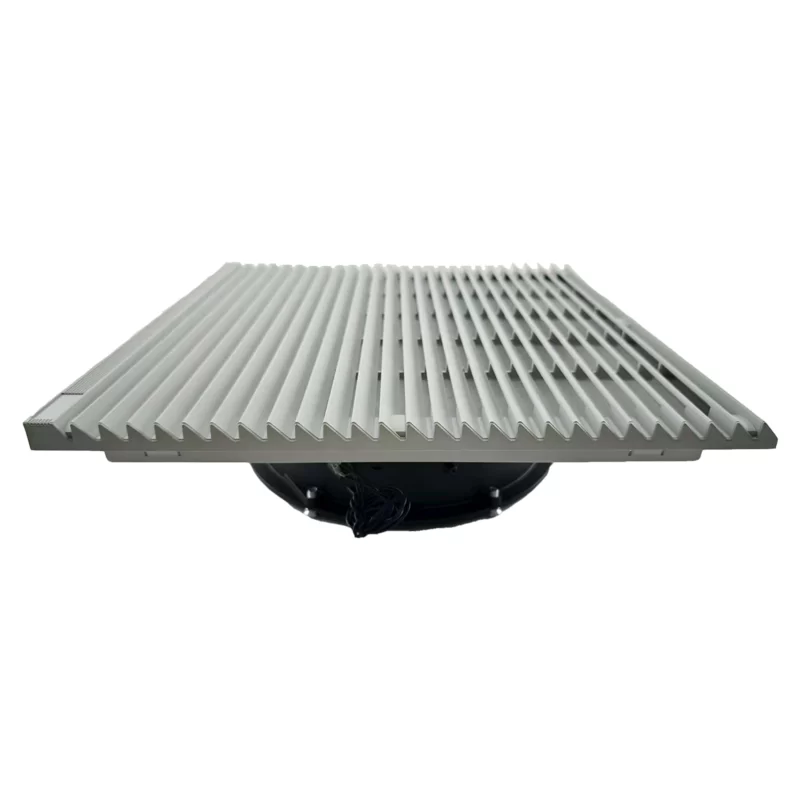

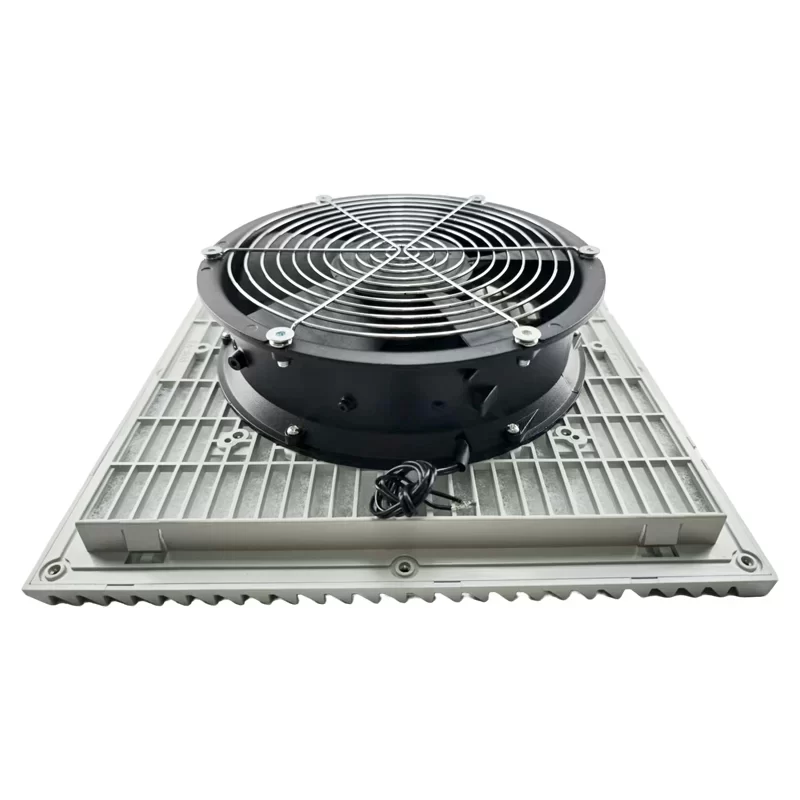

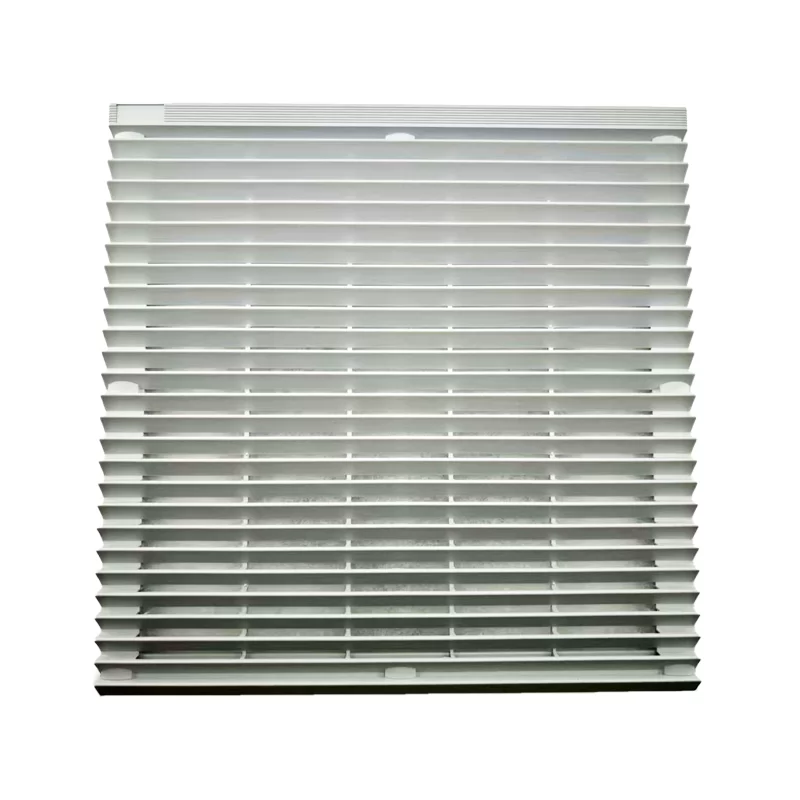

XA806-220B2H XA-CQJ 220V AC Axial Fan

Description

The XA-CQJ XA806-220B2H is an AC axial fan with dimensions of 80 x 80 x 25 mm. It operates on 220V AC power, drawing 0.08 A of current and consuming 12 W of power. This fan delivers an airflow of 26 CFM (44.2 m³/h) with a static pressure of 0.17 inch H₂O (42 Pa). It runs at a speed of 2600 RPM, producing a noise level of 36.6 dB(A). The fan utilizes ball bearings for reliability and is terminated with two-wire leads. It operates within a temperature range of -20 °C to 70 °C.

XA806-220B2H Fan Parameters
Manufacturer: XA-CQJ
Model: XA806-220B2H
Fan Type: AC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 220V AC
Current Rating: 0.08 A
Power Consumption: 12 W
Airflow: 26 CFM (44.2 m³/h)
Static Pressure: 0.17 inch H₂O (42 Pa)
Speed: 2600 RPM
Noise Level: 36.6 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -20 °C ~ 70 °C
Weight: 215 g

Application
The XA806-220B2H fan is suitable for applications requiring consistent airflow and cooling in AC-powered systems, such as industrial control panels, medical equipment, telecommunication enclosures, and other electronic devices.
