Description

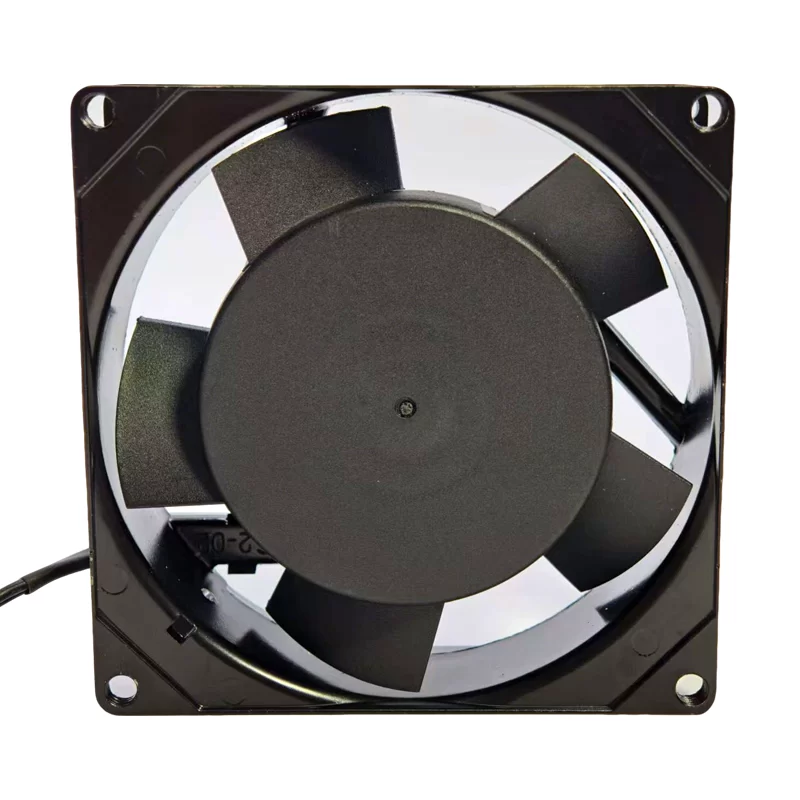

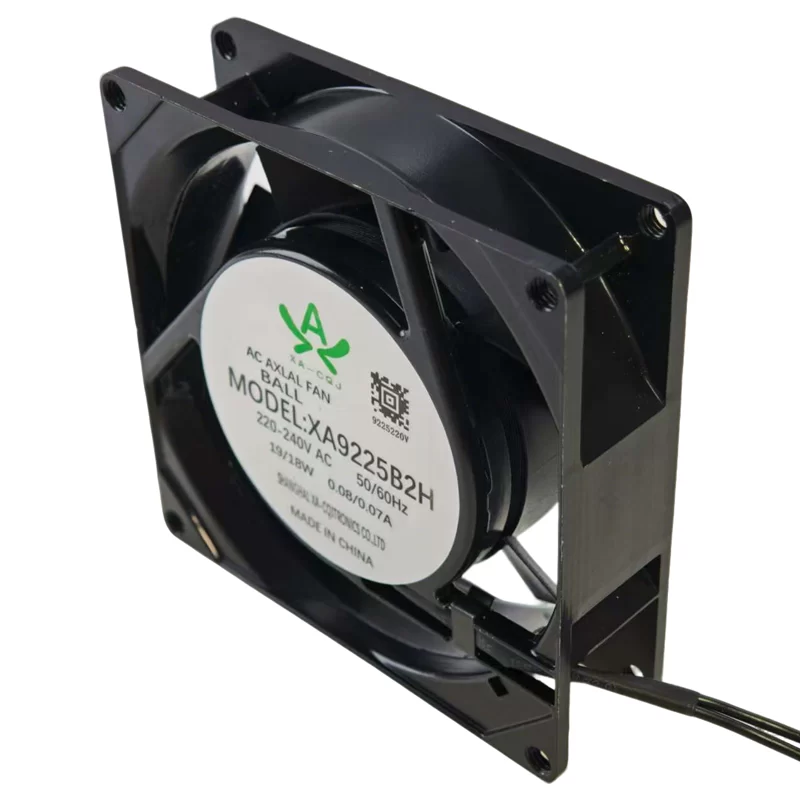

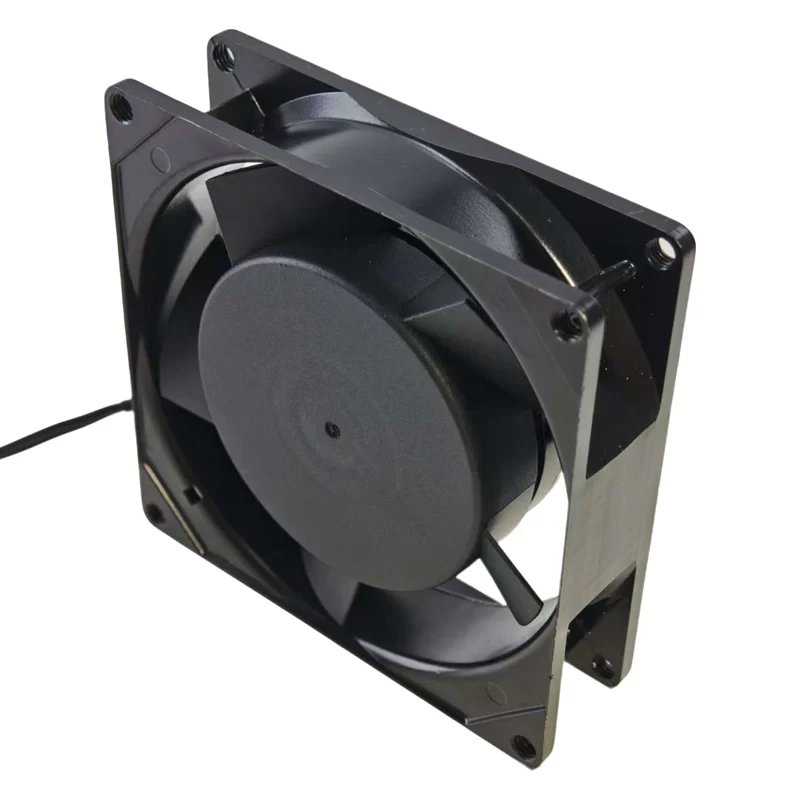

The XA-CQJ XA9225B2H is a 220-240VAC AC axial fan with measuring 92 x 92 x 25 mm. It is designed for operation at two frequencies, 50Hz and 60Hz, with current draw and power consumption varying accordingly. At 50Hz, it draws 0.08A of current and consumes 19W of power. When running at 60Hz, it draws 0.07A of current and consumes 18W of power. This fan utilizes durable ball bearings, features plastic housing and impeller, and is terminated with two wire leads. It is ideal for general cooling and ventilation in various electronic equipment and small enclosures requiring 220-240V AC power.
XA9225B2H Fan Parameters
Manufacturer: XA-CQJ
Model: XA9225B2H
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 220-240 VAC
Operating Frequency: 50 Hz / 60 Hz
Performance at 50 Hz:
Current Rating: 0.08 A
Power Consumption: 19 W
Performance at 60 Hz:
Current Rating: 0.07 A
Power Consumption: 18 W
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Application: This XA-CQJ AC axial fan is suitable for general cooling and ventilation in various electronic equipment and small enclosures requiring 220-240V AC power.
