Description

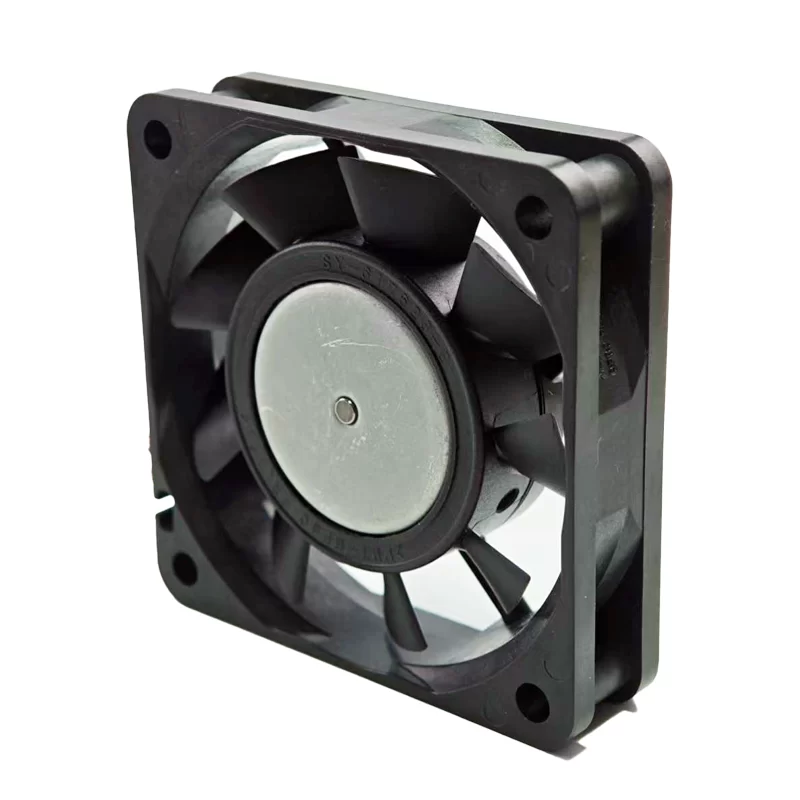

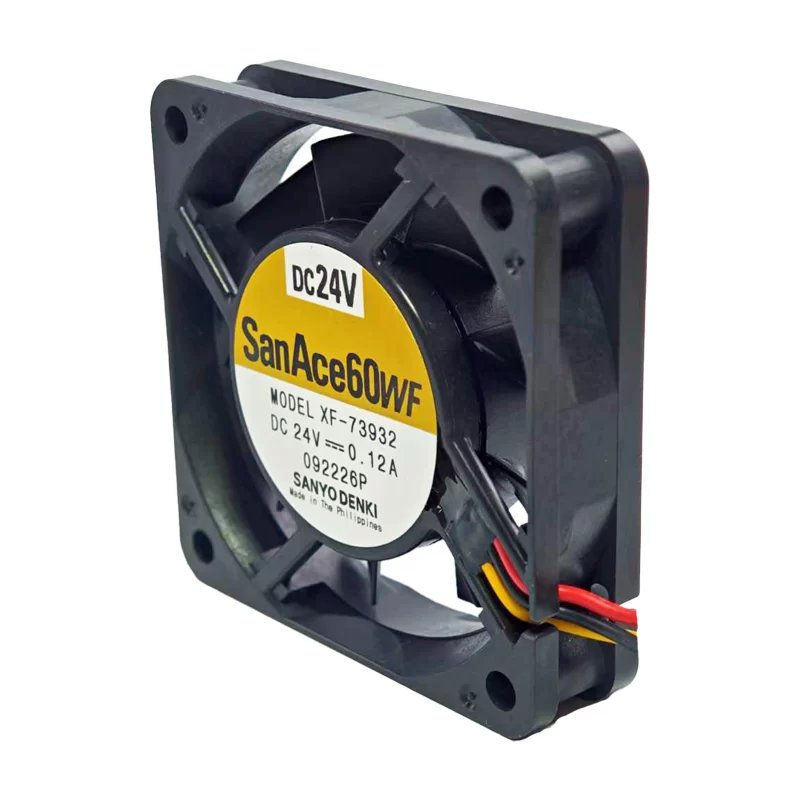

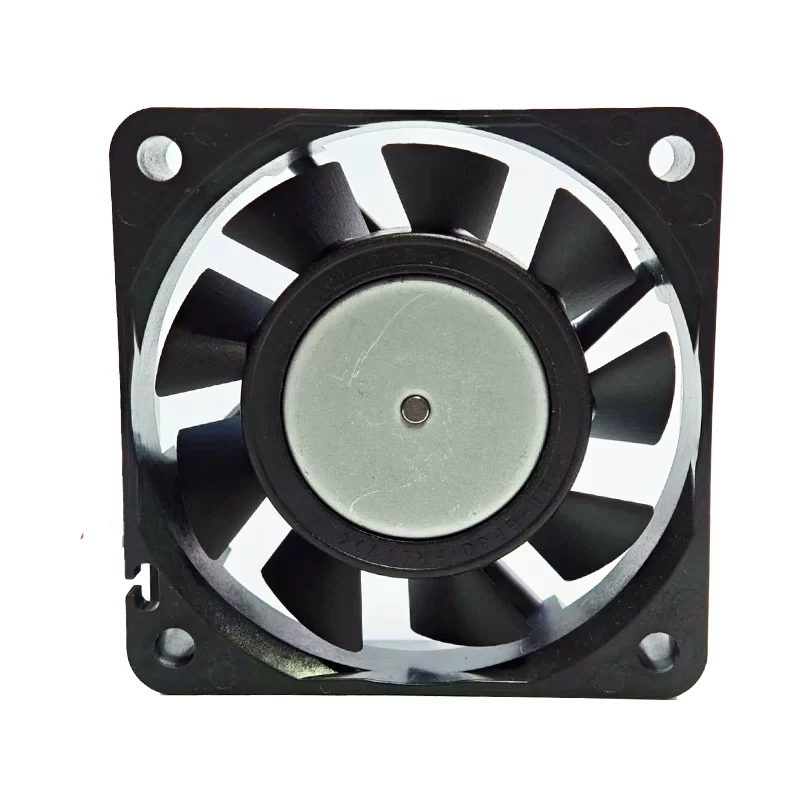

The XF-73932 Sanyo Denki is a compact 60x60x15mm DC axial fan from the San Ace 60WF oil-proof series. It’s engineered for reliable performance in environments exposed to oil mist and other contaminants. Operating on 24 VDC within a typical voltage range of 20.4–27.6 VDC, this fan draws 0.12A of current. It achieves a rotational speed of approximately 6800 min-1, delivering an airflow of 0.52 m³/min (18.3 CFM or 31.2 m³/h). With a noise level of 44 dB(A) and utilizing ball bearings, it ensures relatively quiet operation. This model typically features a 3-wire lead termination (including a pulse sensor for speed monitoring). Its robust, oil-proof construction makes it an excellent choice for machine tools, industrial equipment, and similar demanding applications.
XF-73932 Fan Parameters
Model Number: XF-73932
Manufacturer: Sanyo Denki
Series: San Ace 60WF (Oil Proof Fan)
Type: DC Axial Fan
Dimensions: 60mm x 60mm x 15mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4–27.6 VDC
Rated Current: 0.12A
Input Power: 2.88 W
Speed: 6800 min-1
Airflow: 0.52 m³/min (18.3 CFM or 31.2 m³/h)
Static Pressure: 95 Pa (0.38 inch H2O)
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic
Termination: 3-Wire Leads (with Pulse Sensor)
Expected Life: 40,000 hours @ 60°C (70,000 hours @ 40°C)
Operating Temperature: -20°C to +70°C
Weight: 62 g
Protection Features: Oil-proof design
Certifications: UL, others may apply
Application: Machine tools, industrial equipment, automation systems, applications exposed to oil mist or requiring robust environmental protection.
