YAD9238B12M 12V DC Axial Fan

Description

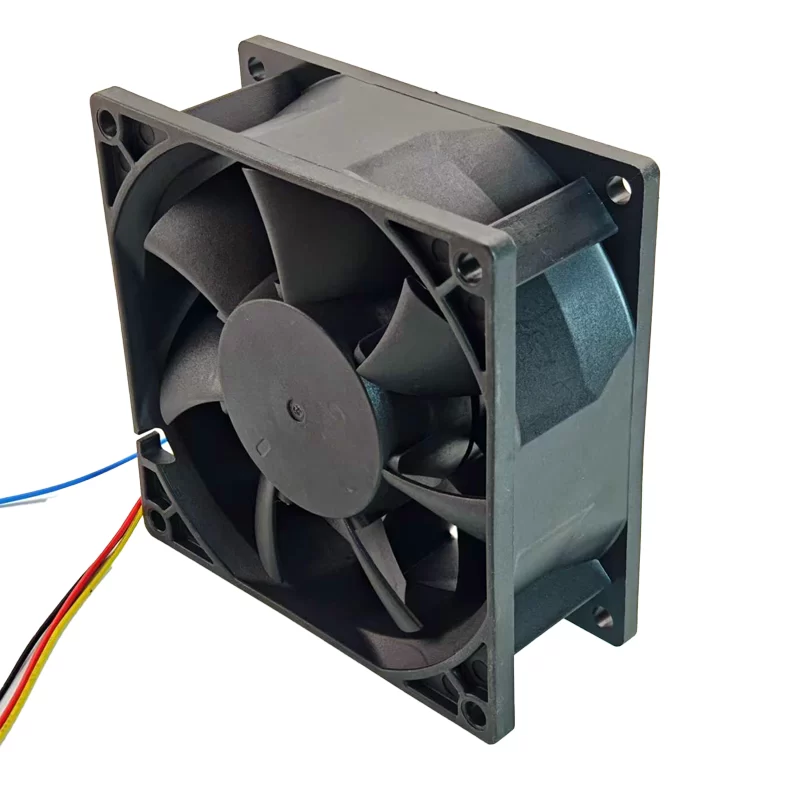

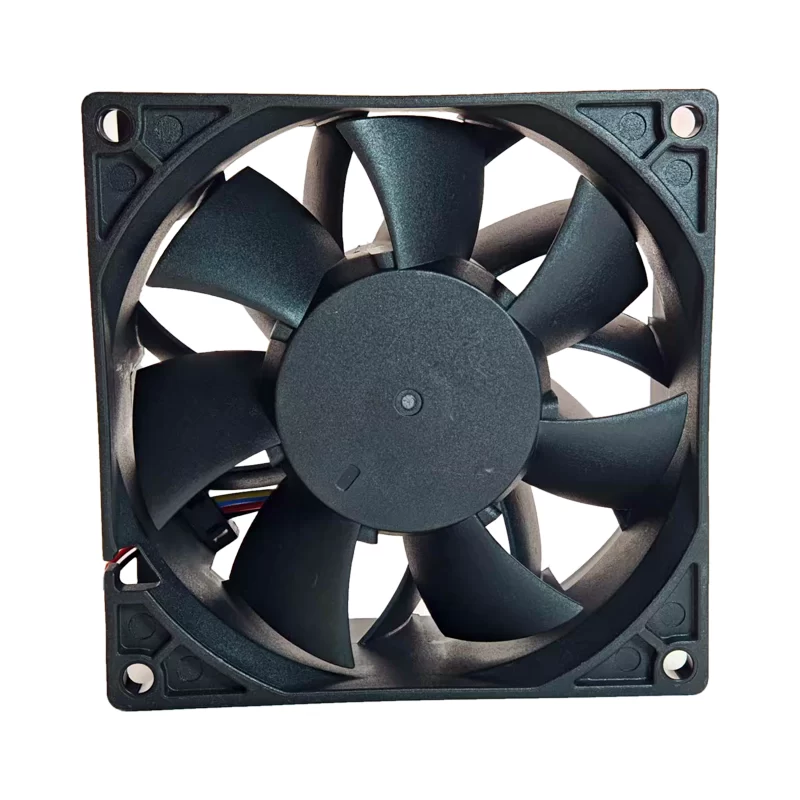

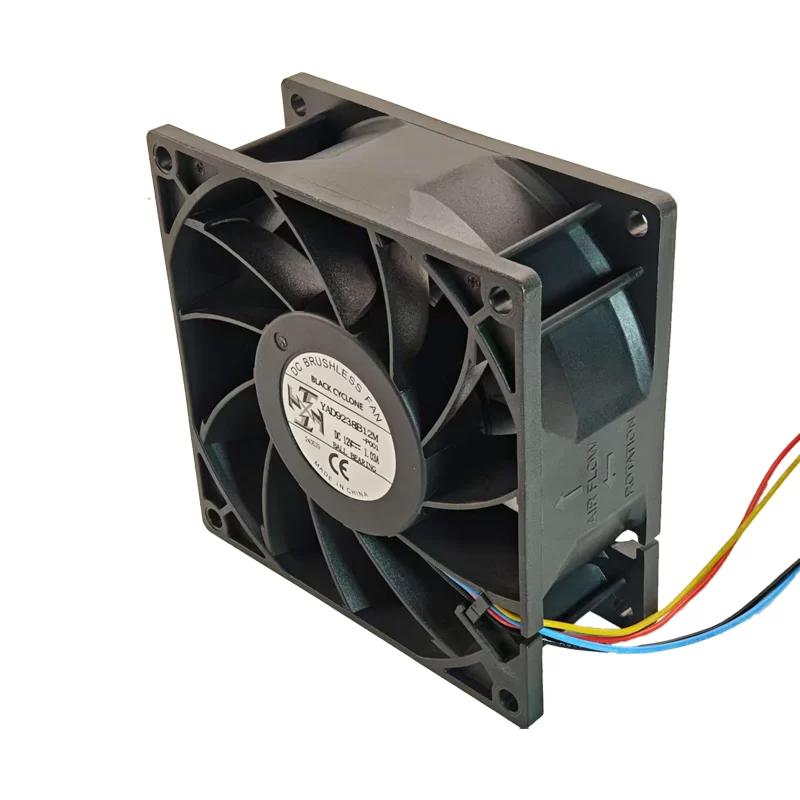

The BLACK CYCLONE YAD9238B12M is a 12V DC Axial Fan with dimensions of 92x92x38mm. It has a current draw of 1.03A and features four wires for connection. The fan is equipped with seven blades and both its housing and impeller are made of plastic.

YAD9238B12M Fan Parameters
Model: YAD9238B12M
Manufacturer: BLACK CYCLONE
Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Nominal Voltage: 12 V DC
Current Draw: 1.03 A
Termination: 4-wire leads
Number of Blades: 7
Material Housing: Plastic
Material Impeller: Plastic
Application: Suitable for high-performance electronics cooling and industrial applications.
