YDM1225S24 YCCFAN 24V DC Axial Fan

Description

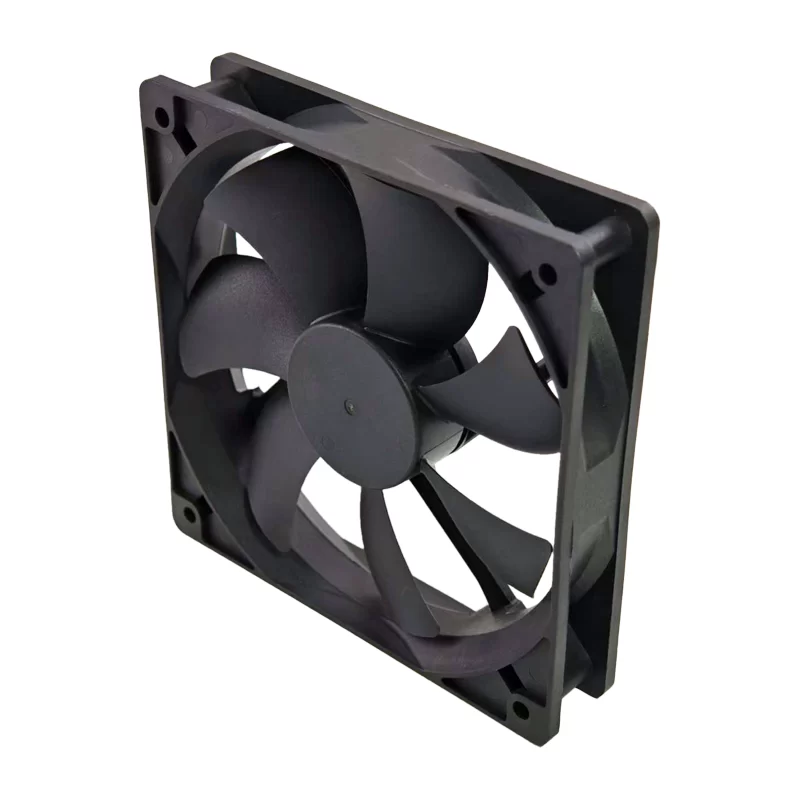

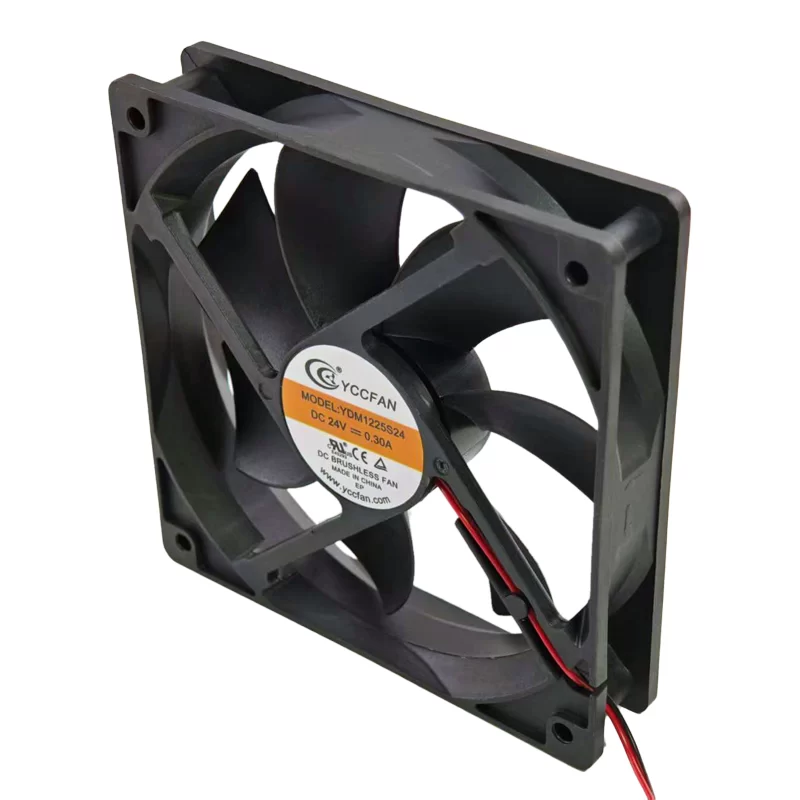

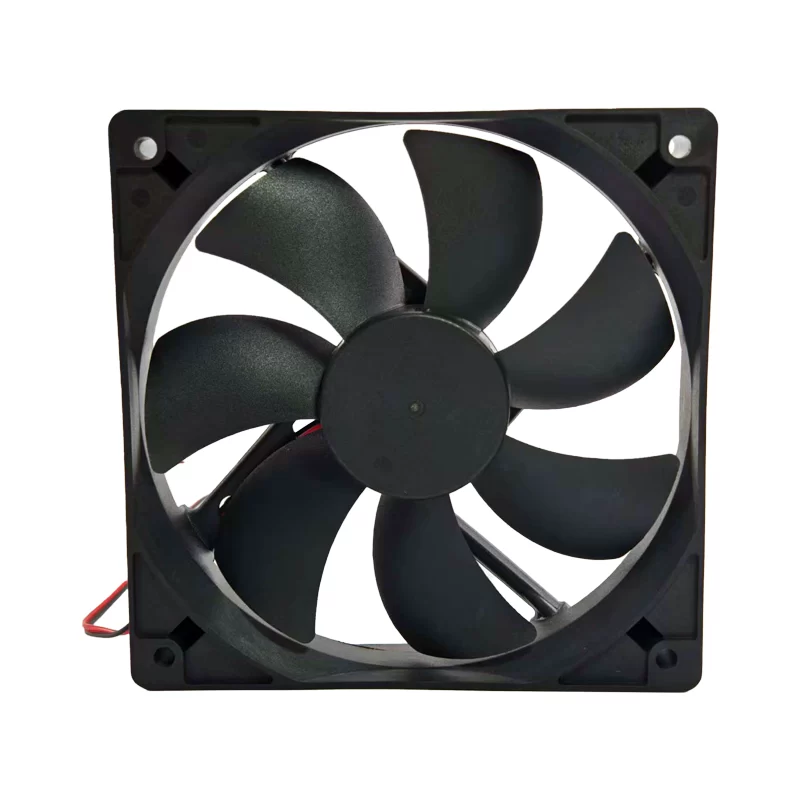

The YCCFAN YDM1225S24 is a 24V DC Axial Fan with dimensions of 120x120x25mm. It draws 0.3A (7.2W), spins at 3000RPM, and delivers an airflow of 148.2m³/h (87.25CFM) with a static pressure of 61.50Pa (0.247IN H2O), while producing a noise level of 40.12dB(A). This fan features plastic blades and its frame is also constructed from plastic. It comes with a 2-wire termination. It is suitable for various cooling applications in electronics, industrial equipment, and general ventilation systems.

YDM1225S24 Fan Parameters
Model: YDM1225S24
Manufacturer: YCCFAN
Type: DC Axial Fan
Dimensions: 120 x 120 x 25 mm
Nominal Voltage: 24 V DC
Rated Current: 0.3 A
Power Consumption: 7.2 W
Speed: 3000 RPM
Airflow: 148.2 m³/h (87.25 CFM)
Static Pressure: 61.50 Pa (0.247 IN H2O)
Noise Level: 40.12 dB(A)
Frame Material: Plastic
Impeller Material: Plastic
Termination: 2-wire leads
Application: Suitable for cooling in electronics, industrial equipment, and general ventilation systems.
