Description

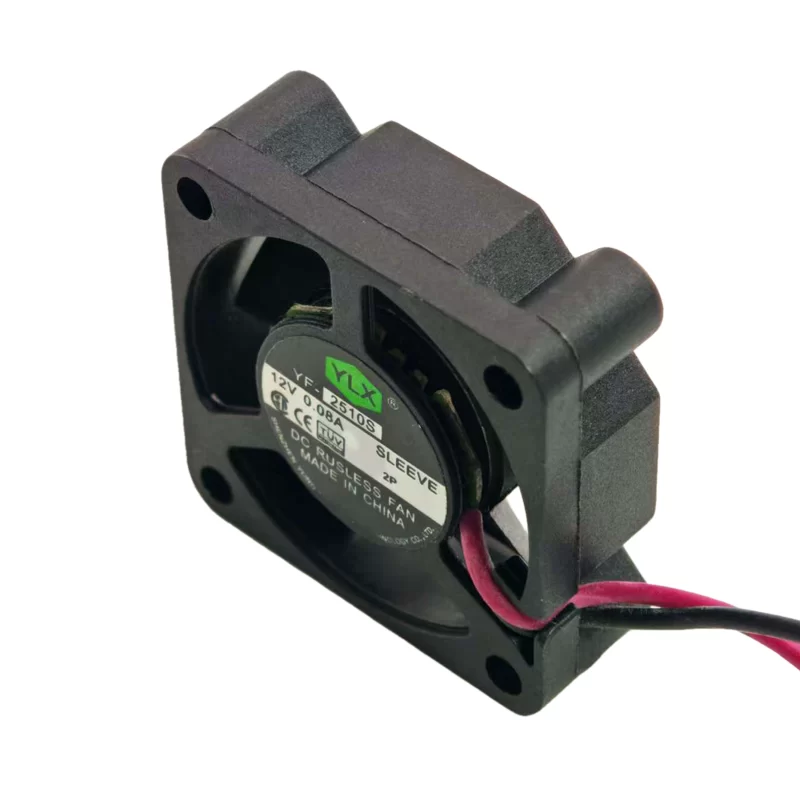

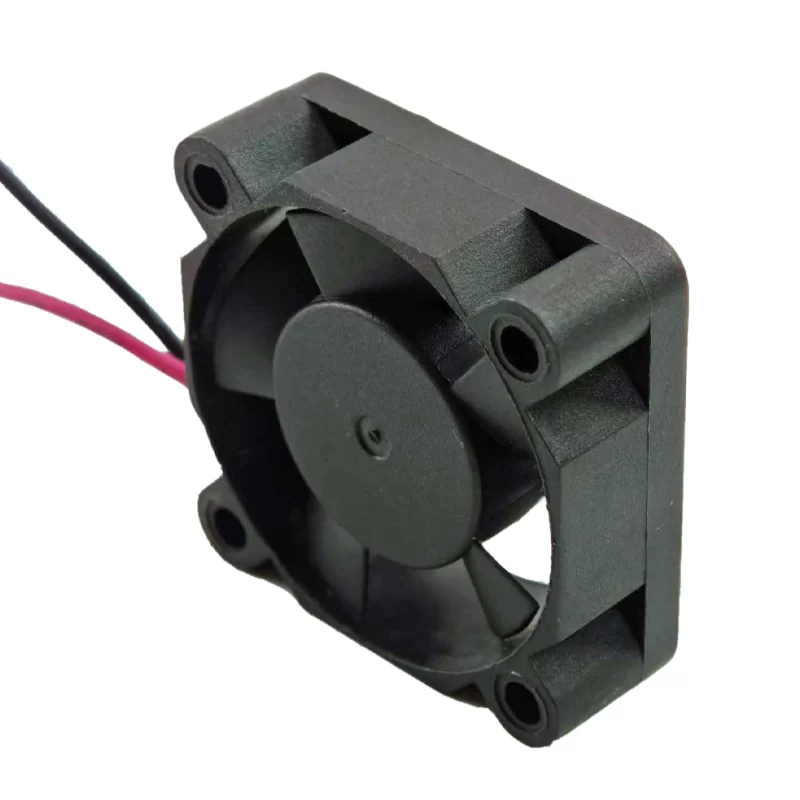

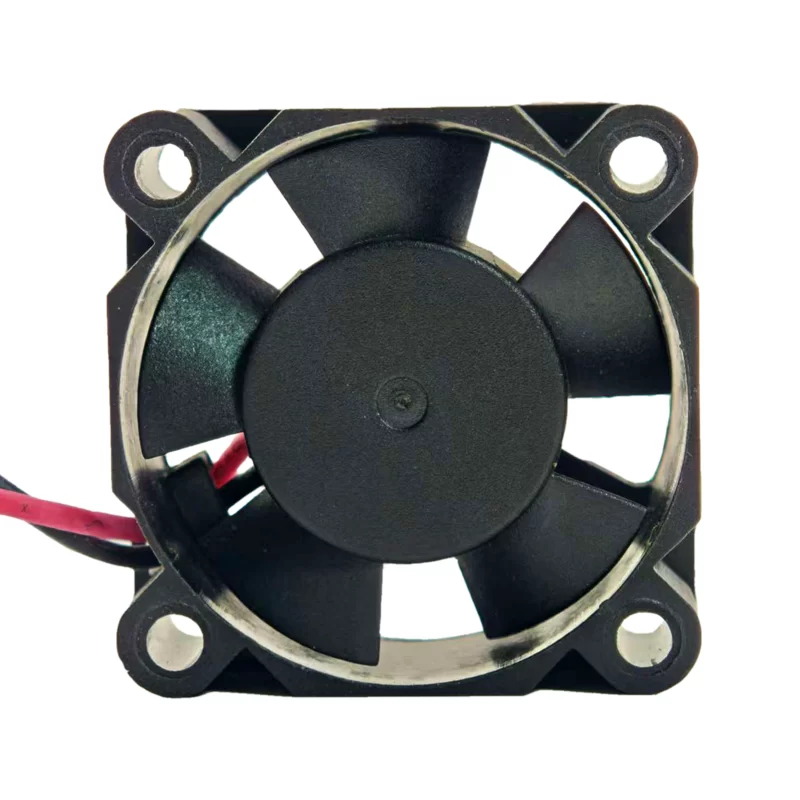

The YLX YF-2510S is a miniature DC Axial Fan measuring 30 x 30 x 10 mm and operating on 12 V DC. Drawing 0.08 A for 0.96 W of power, it features a Sleeve bearing and 5 blades. It generates an airflow of 6.46 m3 /h (3.8 CFM) with 54 Pa of static pressure at 10500 RPM, while maintaining a quiet 27 dBA noise level. Constructed from UL94-V0 plastic and featuring a 2-wire termination, this fan is ideal for low-profile applications requiring efficient, focused cooling.
YF-2510S Fan Parameters
Model: YF-2510S
Manufacturer: YLX
Type: DC Axial Fan
Nominal Voltage: 12 V DC
Current Draw: 0.08 A
Power Consumption: 0.96 W
Airflow: 6.46 m3/h
Airflow in CFM: 3.8 CFM
Static Pressure: 54 Pa
Speed: 10500 RPM
Noise Level: 27 dBA
Dimensions: 30 x 30 x 10 mm
Bearing Type: Sleeve
Weight: 9 g
Number of blades: 5
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)
Termination: 2 Wires lead
AC/DC: DC
Application
The YF-2510S is a micro-axial fan designed for specialized thermal management where space is severely restricted. It is ideal for focused cooling in areas such as miniature electronic devices, 3D printer hot ends, and compact heat sink ventilation.
