Description

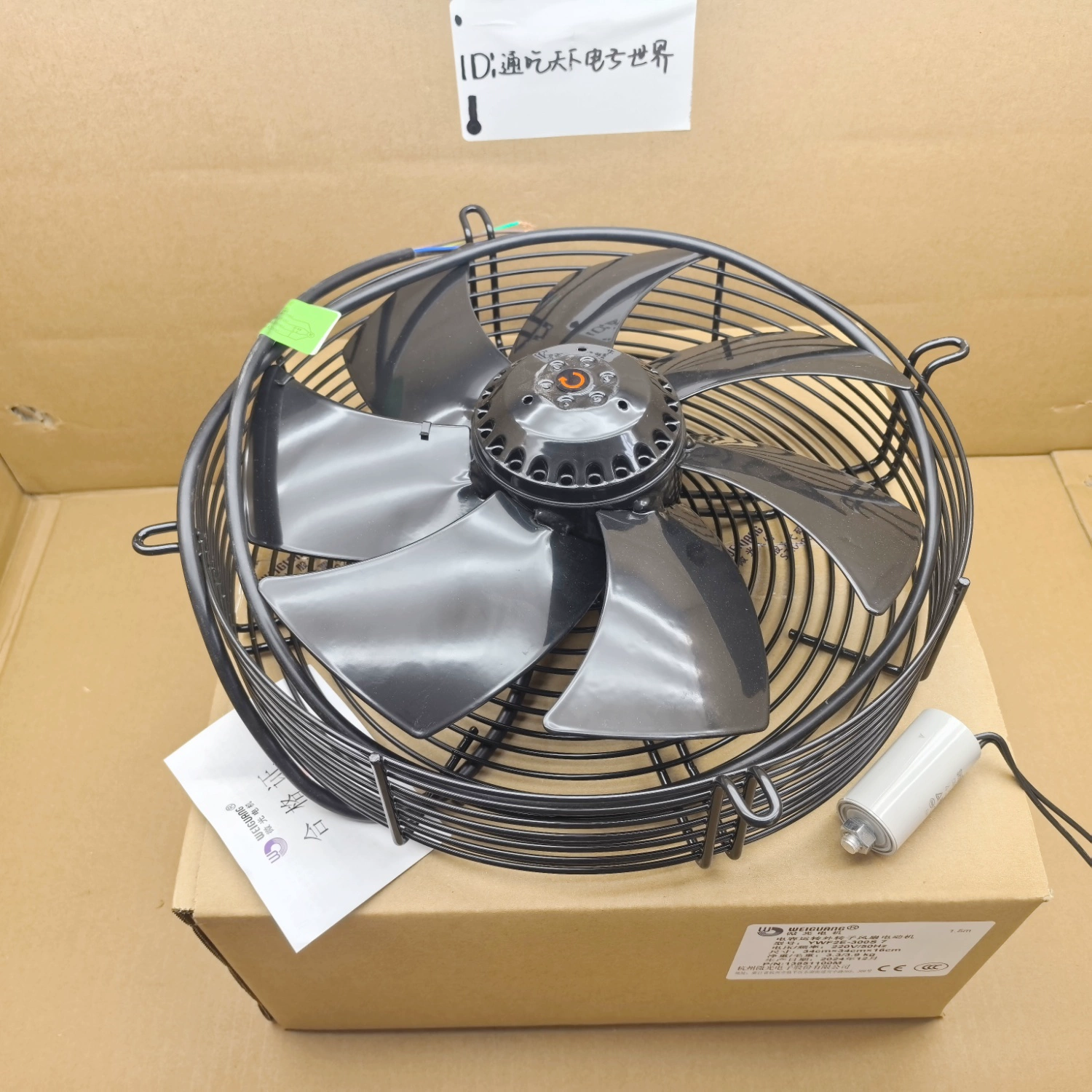

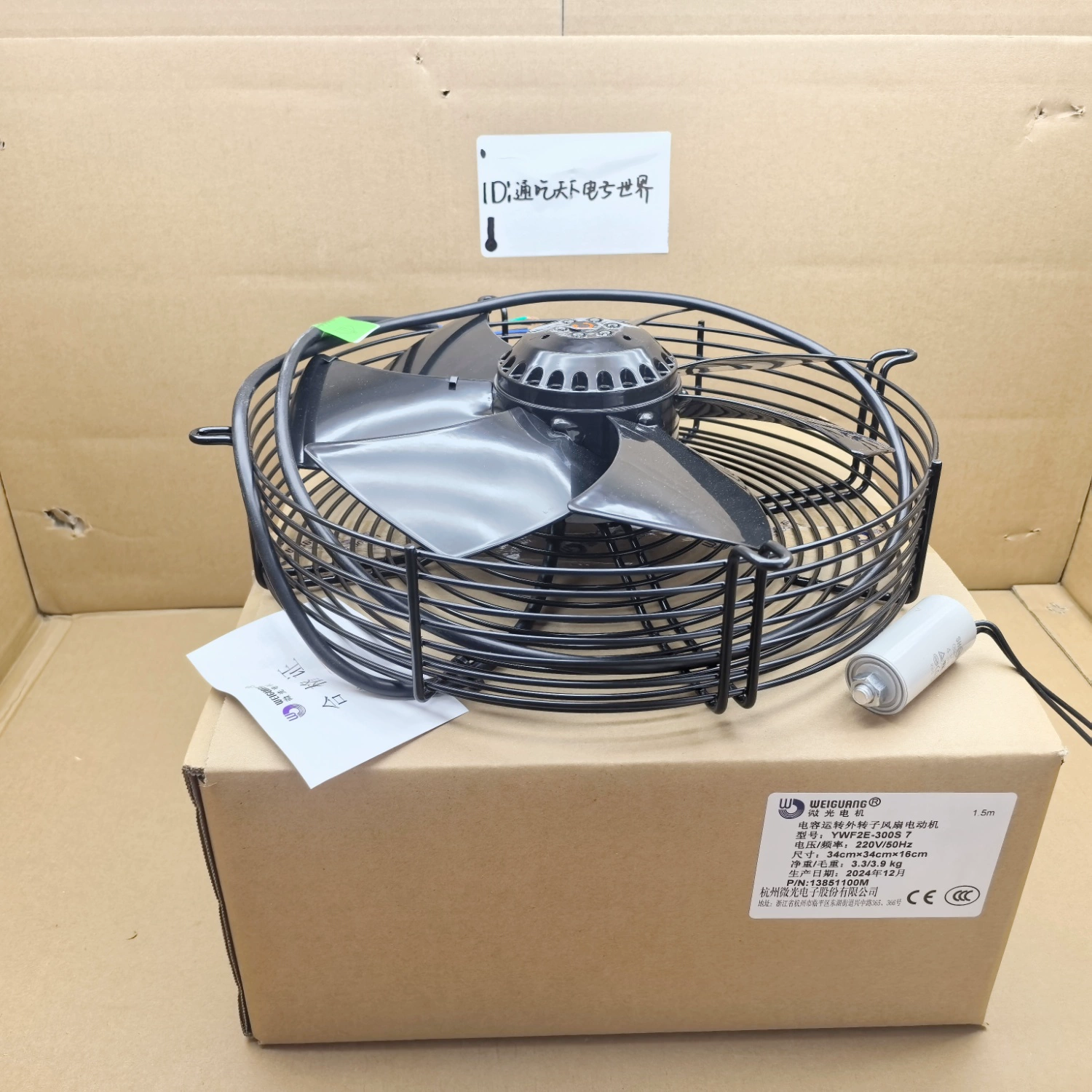

The Weiguang YWF2E-300S is an AC Axial Fan with a diameter of 300 mm. It operates on a single-phase nominal voltage of 220 V ~ 240 VAC at 50/60 Hz. The fan achieves speeds of 2300/2250 RPM, consuming 145/180 W of power and drawing 0.66/0.85 A of current. It delivers a maximum air flow of 2330/2343 m³/h (1371.7/1379.3 CFM) and generates a maximum static pressure of 80 Pa (0.32 inAq). The fan features an IP54 protection rating and F-class insulation, making it suitable for high-flow commercial refrigeration and ventilation systems.
YWF2E-300S Fan Parameters

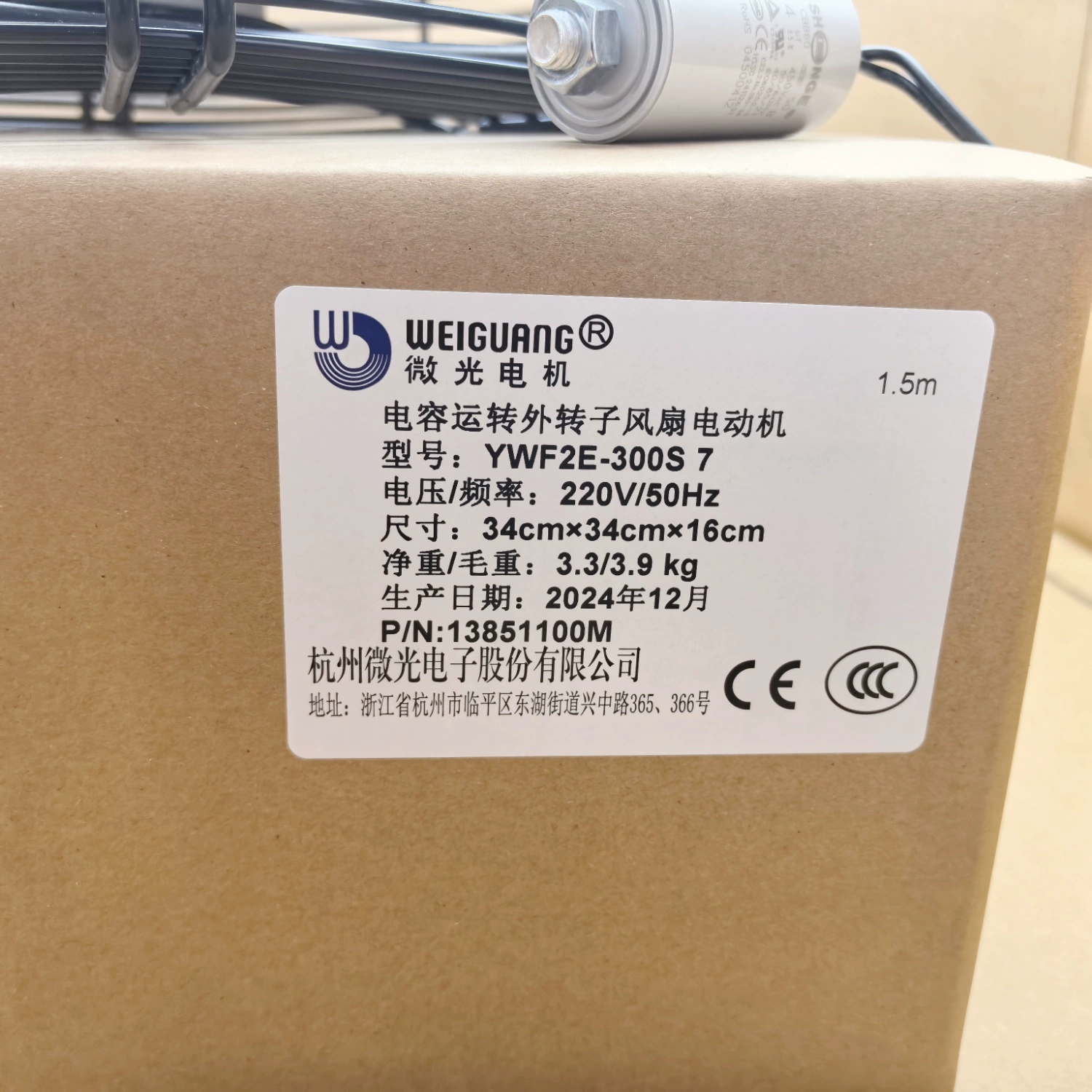

Model: YWF2E-300S
Manufacturer: Weiguang
Type: AC Axial Fan (External Rotor Motor)

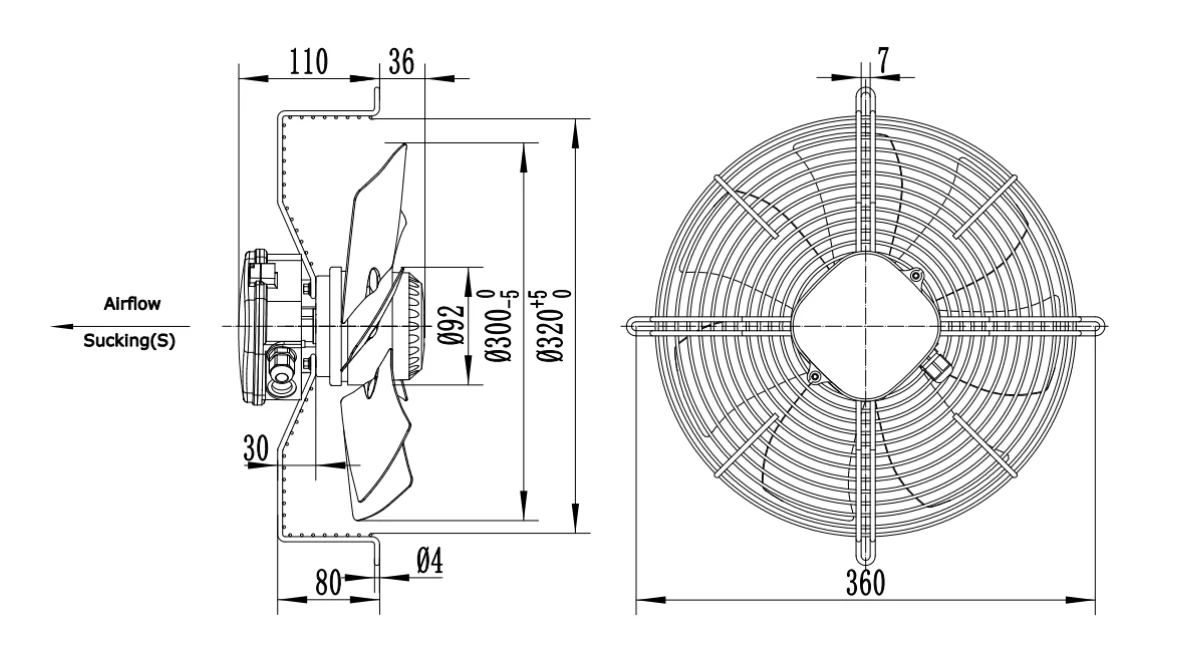

Dimensions (Diameter): 300 mm
Nominal Voltage: 220 V ~ 240 VAC
Voltage Type: 1~ AC
Frequency: 50/60 Hz
Speed: 2300/2250 RPM
Power Consumption: 145/180 W
Max. Current Draw: 0.66/0.85 A
Max. Airflow: 2330/2343 m³/h (1371.7/1379.3 CFM)
Max. Static Pressure: 80 Pa (0.32 inAq)
Noise Level: 68 dB(A)
Weight (Net): 3.3 kg
Packaging Dimensions: 34 x 34 x 16 cm
Impeller Material: SPCC
Rotor Material: Die-cast Aluminum
Motor Type: External Rotor Induction Motor
Airflow Direction: Suction/Blowing
Degree of Protection: IP54
Degree of Insulation: F
Storage Temperature: -40 °C / +80 °C
Min. Ambient Temperature: -30 °C
Max. Ambient Temperature: 60 °C
Approvals: CCC, CE, UL
ApplicationThe YWF2E-300S Axial Fan is primarily used in commercial and industrial refrigeration equipment that requires dual-frequency operation capability. Its high-volume airflow and robust IP54 rating are ideal for condensers, evaporators, cold storage fans, supermarket display cabinets, and general air-conditioning systems.
