Description

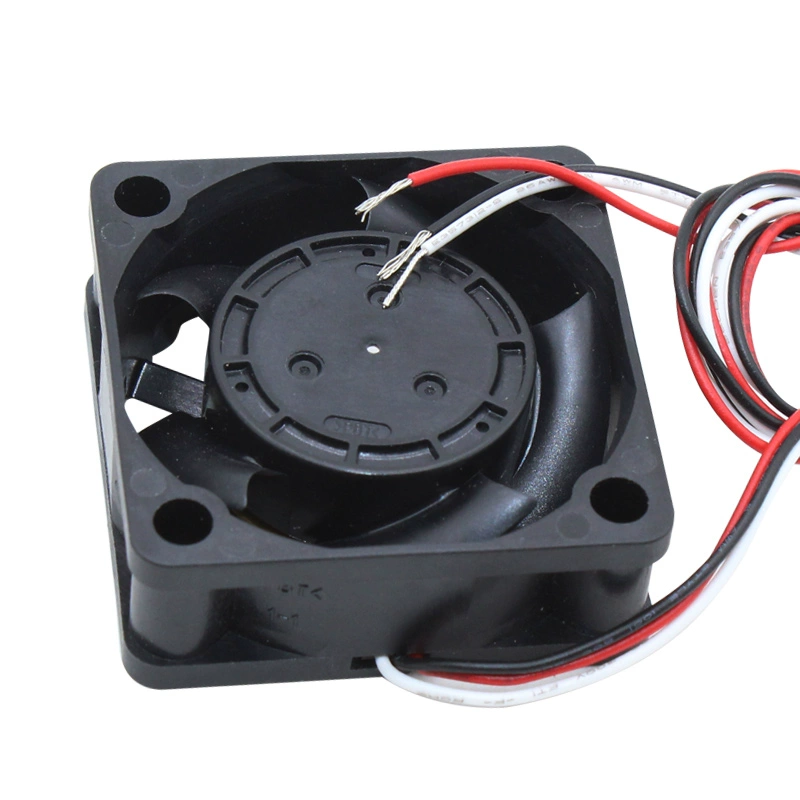

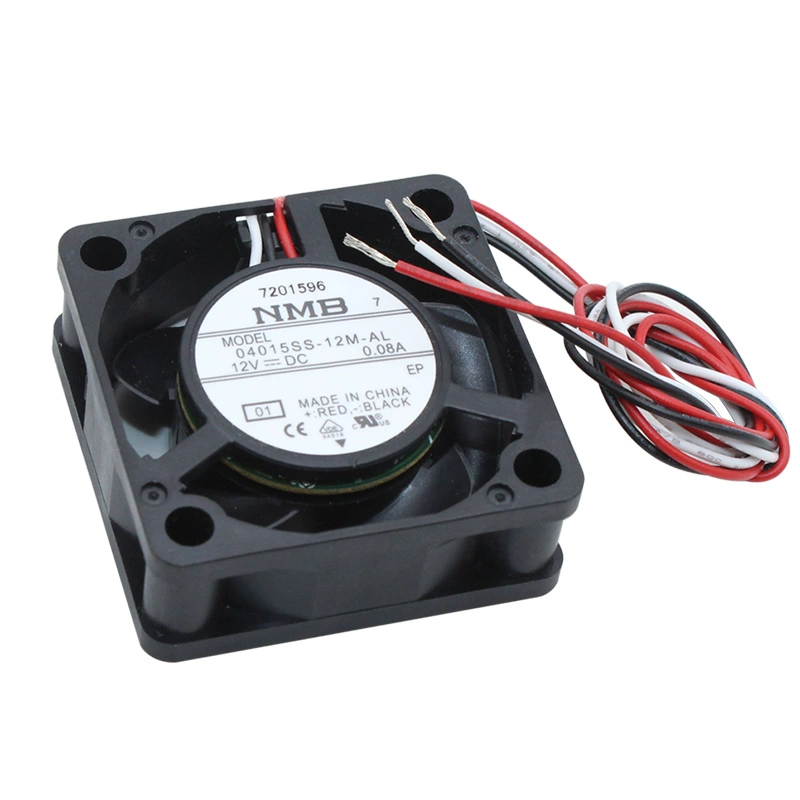

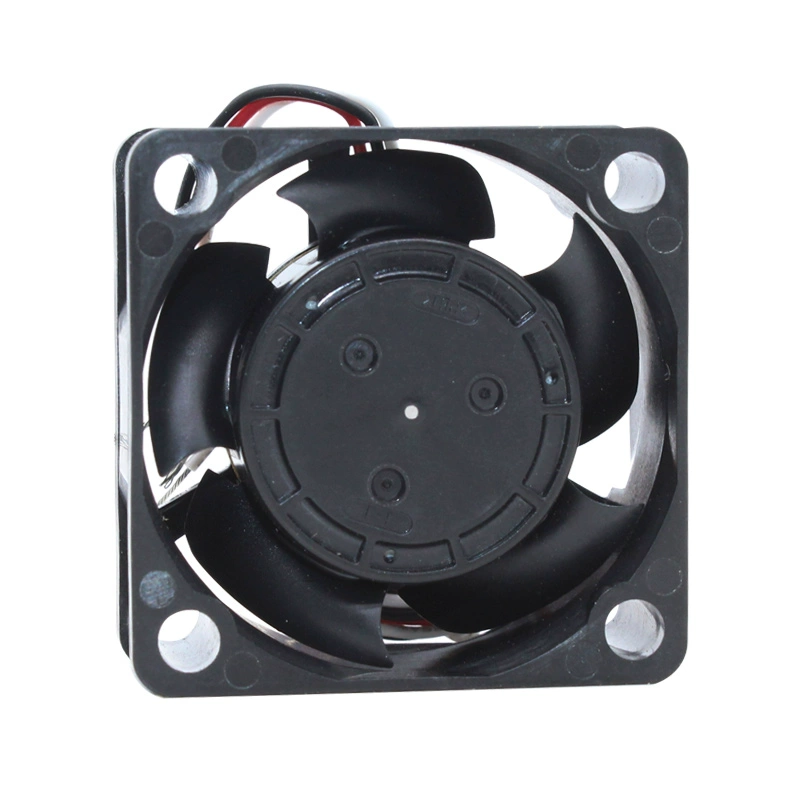

The NMB 04015SS-12M-AL-01 is a compact and efficient 12V DC axial cooling fan from NMB Technologies, measuring 40x40x15mm. Designed for effective thermal management in space-constrained applications, this fan operates at 0.08A (0.96W) to deliver a balanced performance. It spins at 5200 RPM, providing an airflow of 7.8 CFM and a static pressure of 0.13 inch-H2O, making it suitable for moderate cooling needs. Featuring durable ball bearings, it boasts a reliable life expectancy of 60,000 hours at 40°C. With its 3-wire lead, it includes a tachometer output for convenient speed monitoring, ensuring dependable operation in a variety of electronic devices at a quiet 28.0 dBA noise level.
Model Number: 04015SS-12M-AL-01
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 10.2V to 13.8V DC
Rated Current: 0.08A
Rated Power: 0.96W
Speed: 5200 RPM
Airflow: 7.8 CFM (Cubic Feet per Minute) / 0.22 m³/min
Static Pressure: 0.13 inch-H2O (approximately 32.3 Pa)
Noise Level: 28.0 dBA
Dimensions: 40mm (Length) x 40mm (Height) x 15mm (Depth/Thickness)
Connector: 3-Wire Leads (Red: +, Black: -, Yellow/White: Tachometer output)
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 40°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (UL 94V-0 rated)
Impeller Material: Plastic (UL 94V-0 rated)
Features: Auto Restart, Speed Sensor (Tachometer Output), Polarity Protection
