Description

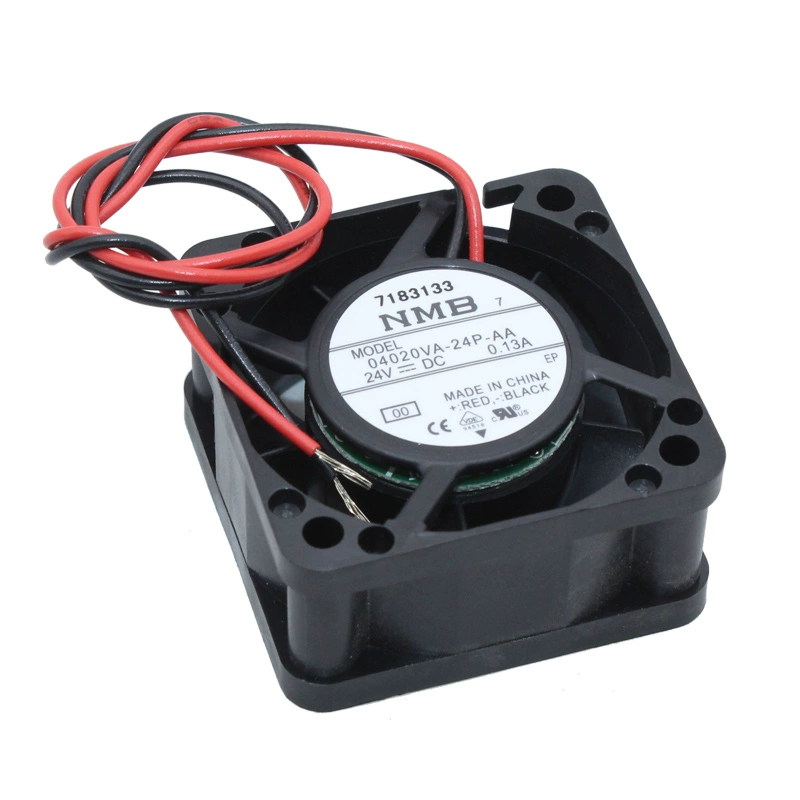

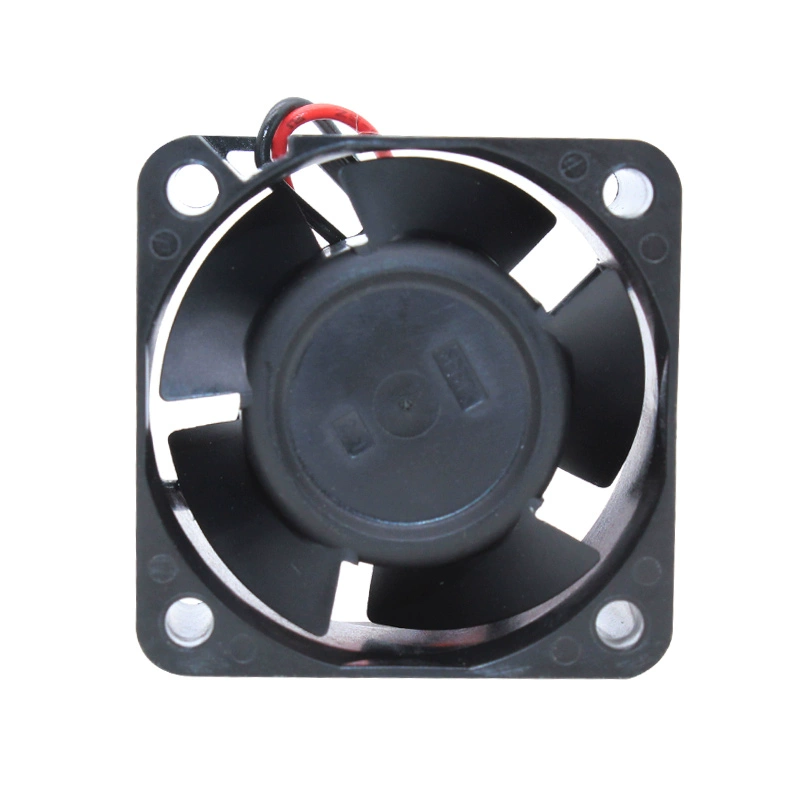

The NMB 04020VA-24P-AA-00 is a very high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 40mm x 40mm x 20mm. Operating at a rated current of 0.13A (3.12W), this fan is engineered for extremely efficient and robust cooling in highly compact electronic devices and challenging environments. It achieves a high speed of 11,000 RPM, delivering 13.4 CFM of airflow and a significant static pressure of 0.55 inch-H2O, with a noise level of 41.0 dBA. Equipped with durable ball bearings, it ensures a long operational life of 100,000 hours at 25°C. The fan utilizes 2-wire leads, offering straightforward power connection, along with auto-restart and polarity protection. Its IP69K rating provides excellent protection against dust and high-pressure, high-temperature washdowns, making it ideal for harsh industrial applications demanding maximum cooling performance.
Model Number: 04020VA-24P-AA-00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 20mm
Rated Voltage: 24V DC
Rated Current: 0.13A
Rated Power: 3.12W
Speed: 11,000 RPM
Airflow: 13.4 CFM / 0.38 m³/min
Static Pressure: 0.55 inch-H2O / 136 Pa
Noise Level: 41.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic (Black UL94V-0)
Impeller Material: Plastic (Black UL94V-0)
Features: Auto Restart, Polarity Protection, IP69K Rating
