Description

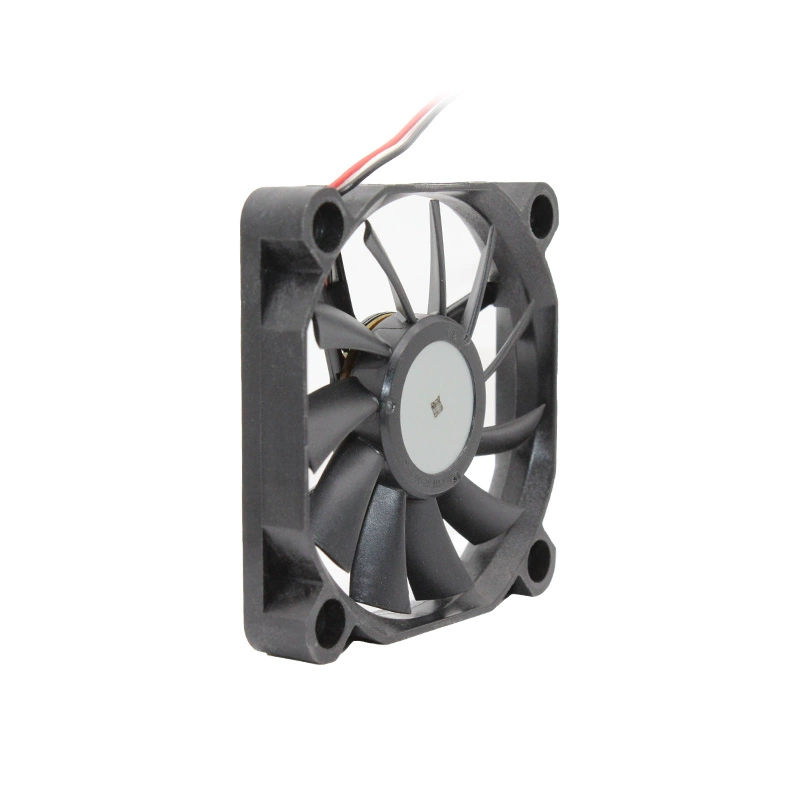

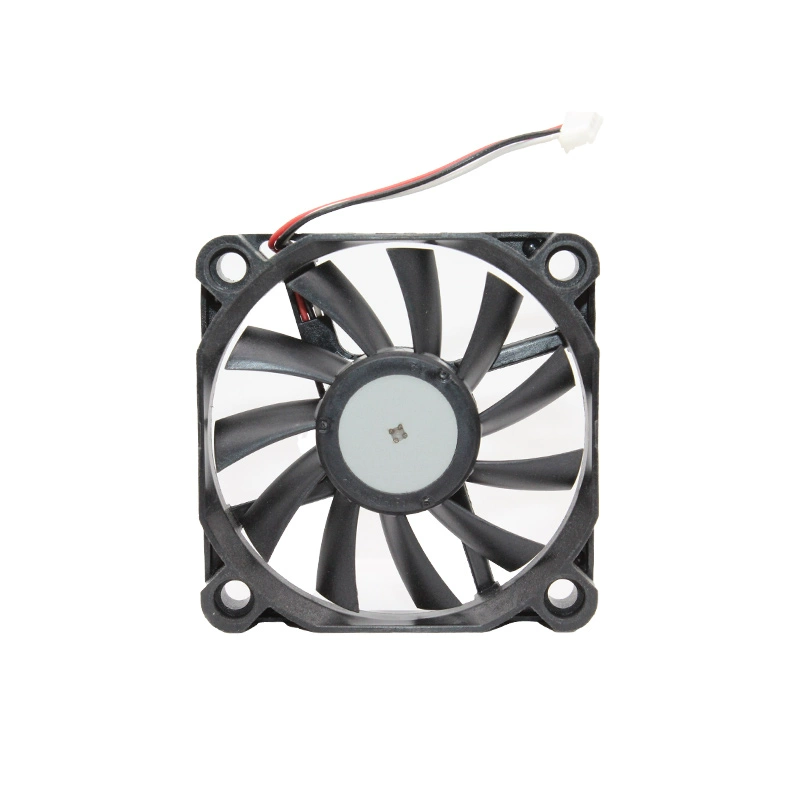

The NMB-MAT 06010KA-12L-AT-01 is a slim and efficient DC Axial Cooling Fan from NMB Technologies, designed for applications where space is at a premium. Operating on 12V DC power, it draws 0.13A of current, resulting in a modest 1.56W power consumption. With its ultra-thin 60mm x 60mm x 10mm dimensions, this fan spins at 3600 RPM, delivering 13.7 CFM of airflow and a static pressure of 16.7 Pa. It maintains a low noise level of 29 dBA, making it suitable for noise-sensitive environments. Equipped with a 3-wire connector and built with a durable ball bearing, the 06010KA-12L-AT-01 provides reliable and efficient cooling for compact electronic chassis, small appliances, and similar devices, further enhanced by its locked rotor sensor for system monitoring.
06010KA-12L-AT-01 NMB 6010 DC 12V 0.13A 6CM Ultra-thin silent chassis fan
Manufacturer: NMB Technologies
Model Number: 06010KA-12L-AT-01
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Rated Current: 0.13A
Rated Power: 1.56W
Speed: 3600 RPM
Airflow: 13.7 CFM
Static Pressure: 16.7 Pa or 0.070 inH2O
Noise Level: 29 dBA
Dimensions: 60mm x 60mm x 10mm
Connector: 3-Wire
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Features: Locked Rotor Sensor
