Description

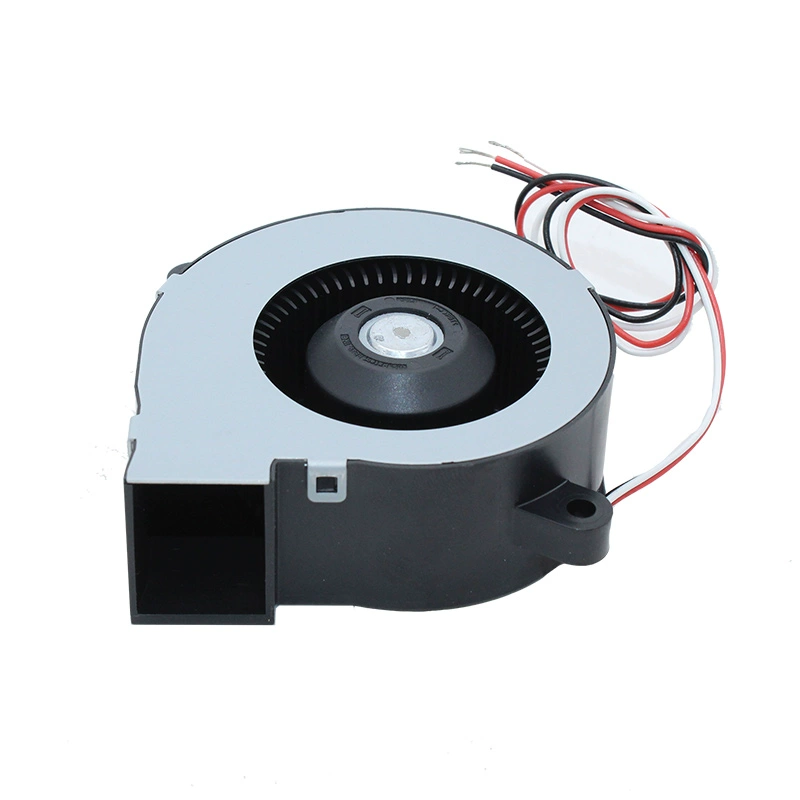

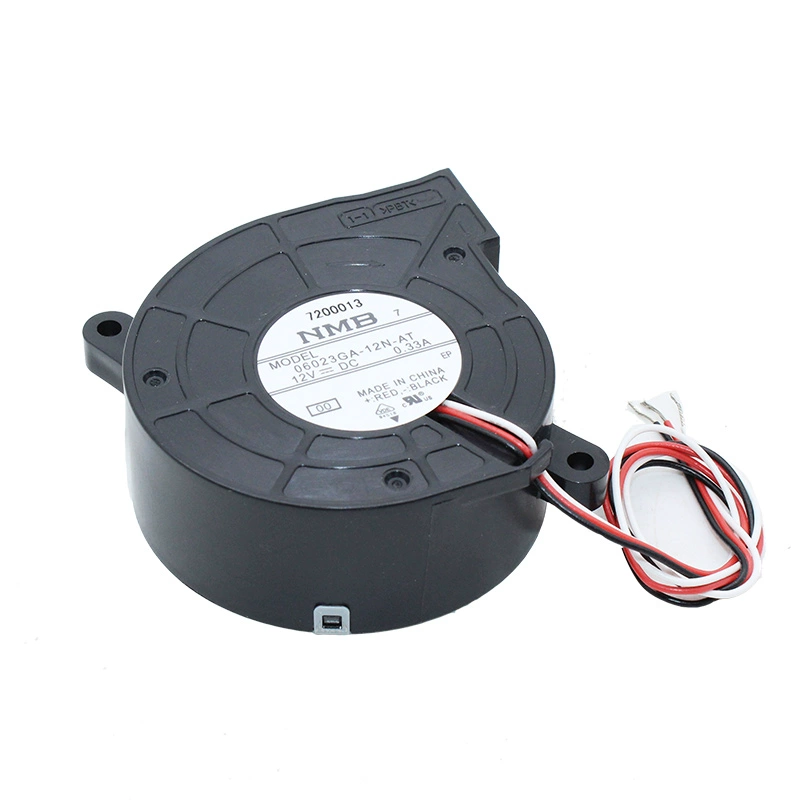

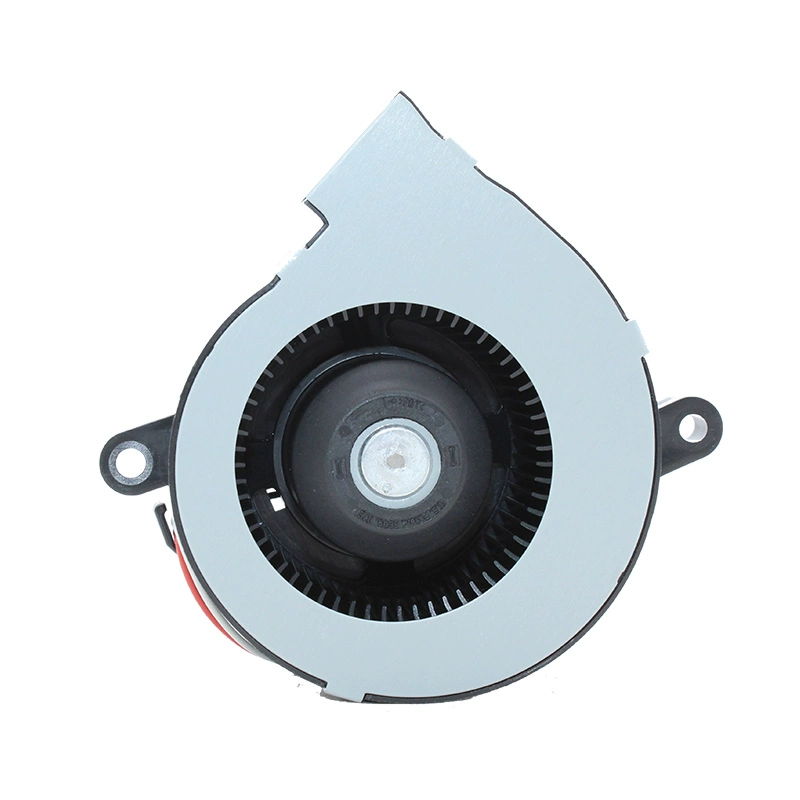

The NMB 06023GA-12N-AT-00 is a compact 12V DC centrifugal blower fan, measuring 60mm x 60mm x 23mm. Operating at a rated current of 0.33A (3.96W), this fan is engineered for applications requiring directed airflow and higher static pressure, such as cooling specific components within projectors, small enclosures, or certain industrial equipment. It achieves a rotational speed of 5000 RPM, delivering approximately 8.5 CFM of airflow with a static pressure typically around 0.803 inch-H2O (200 Pa). Its noise level is 41.0 dBA. Equipped with ball bearings, it ensures a long operational life of 50,000 hours at 25°C. The fan typically utilizes 3-wire leads, which include a tachometer output for speed monitoring, along with auto-restart and polarity protection, ensuring reliable performance in targeted cooling scenarios.
Model Number: 06023GA-12N-AT-00
Manufacturer: NMB Technologies Corporation
Type: DC Centrifugal Blower Fan
Dimensions: 60mm x 60mm x 23mm
Rated Voltage: 12V DC
Operating Voltage: 6V to 13.2V DC
Rated Current: 0.33A
Rated Power: 3.96W
Speed: 5000 RPM
Airflow: 8.5 CFM / 0.24 m³/min
Static Pressure: 0.803 inch-H2O / 200 Pa
Noise Level: 41.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Tachometer Output, Auto Restart, Polarity Protection
