Description

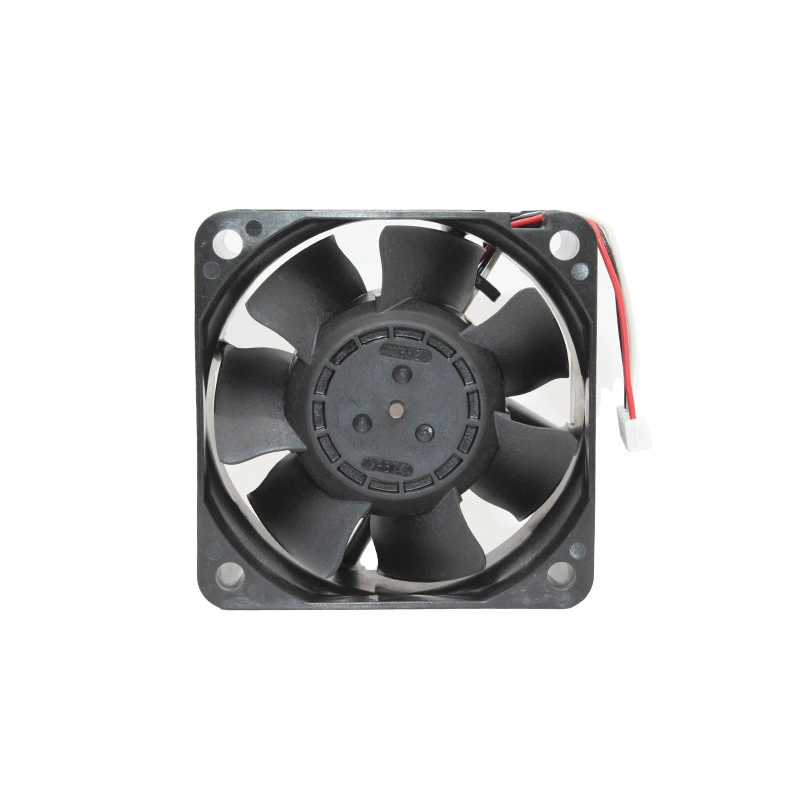

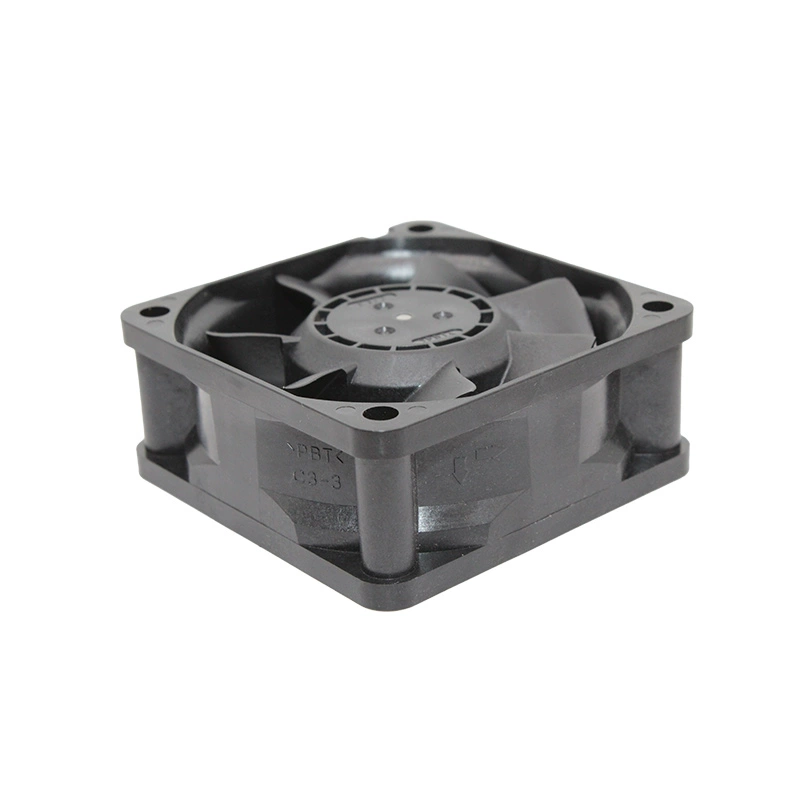

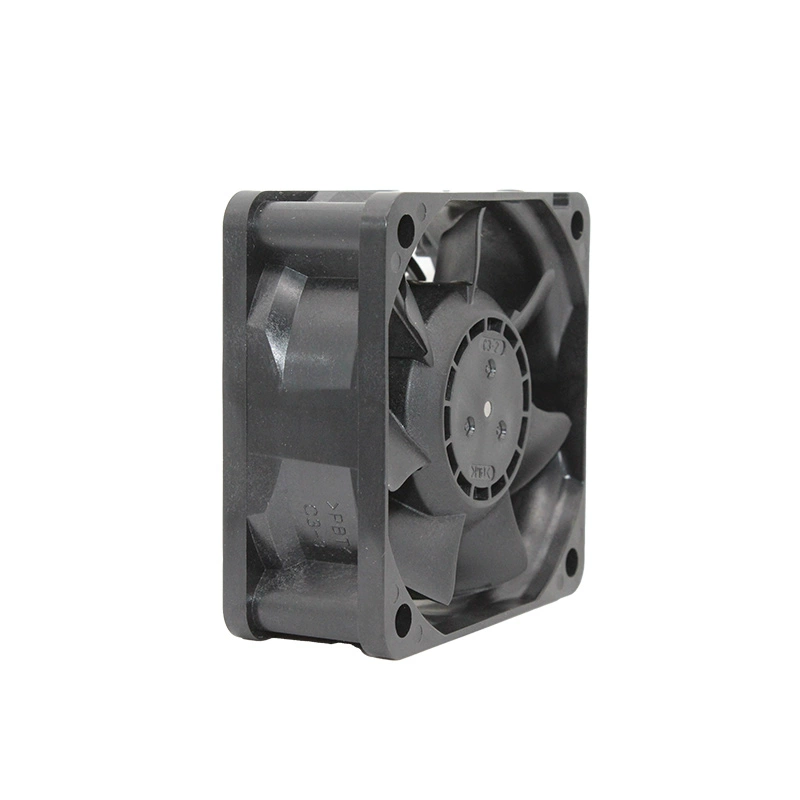

The NMB-MAT 06025SS-24Q-AL is a reliable DC Axial Cooling Fan from NMB Technologies, commonly used in various electronic devices that require efficient and relatively quiet cooling. Operating on 24V DC power, it draws 0.17A of current, resulting in a 4.08W power consumption. Measuring 60mm x 60mm x 25mm, this fan spins at 5300 RPM, delivering 25 CFM of airflow and a static pressure of 73 Pa. With a noise level of 36 dBA, it strikes a good balance between cooling performance and acoustic comfort. The fan features a sleeve bearing for smooth operation and typically comes with a 3-wire connector, providing a long life expectancy of 50,000 hours at 40°C. It is widely used in applications like power supplies, industrial control equipment, and other systems requiring consistent airflow in a standard form factor.
06025SS-24Q-AL NMB 6025 24V 0.17A Three-wire Yaskawa inverter Fanuc fan
Manufacturer: NMB Technologies
Model Number: 06025SS-24Q-AL
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Rated Current: 0.17A
Rated Power: 4.08W
Speed: 5300 RPM
Airflow: 25 CFM
Static Pressure: 73 Pa or 0.29 inH2O
Noise Level: 36 dBA
Dimensions: 60mm x 60mm x 25mm
Connector: 3-Wire
Bearing Type: Sleeve Bearing
Life Expectancy: 40,000 hours at 60°C or 50,000 hours at 40°C
