Description

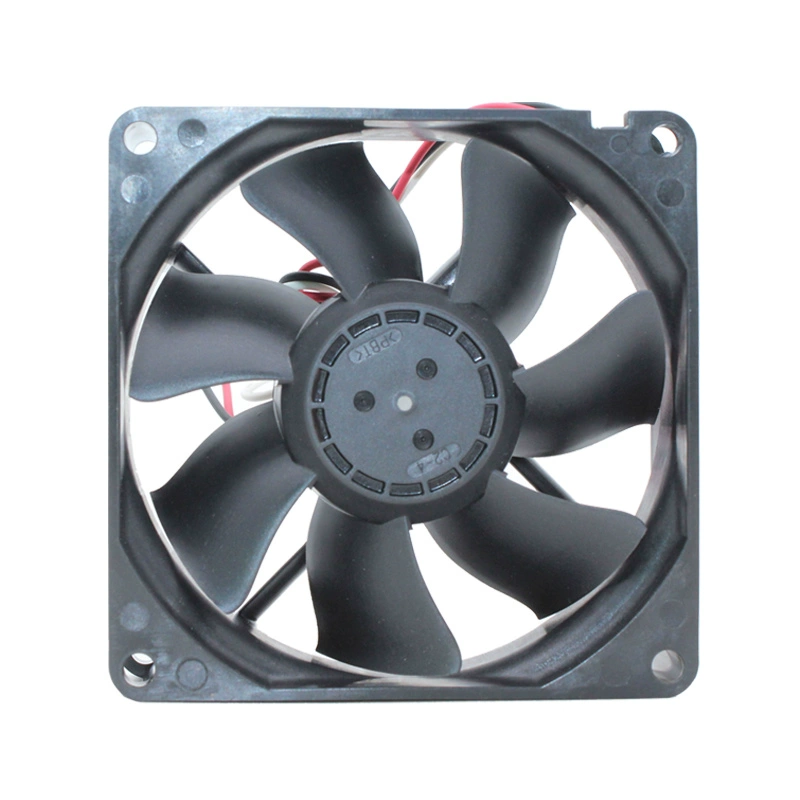

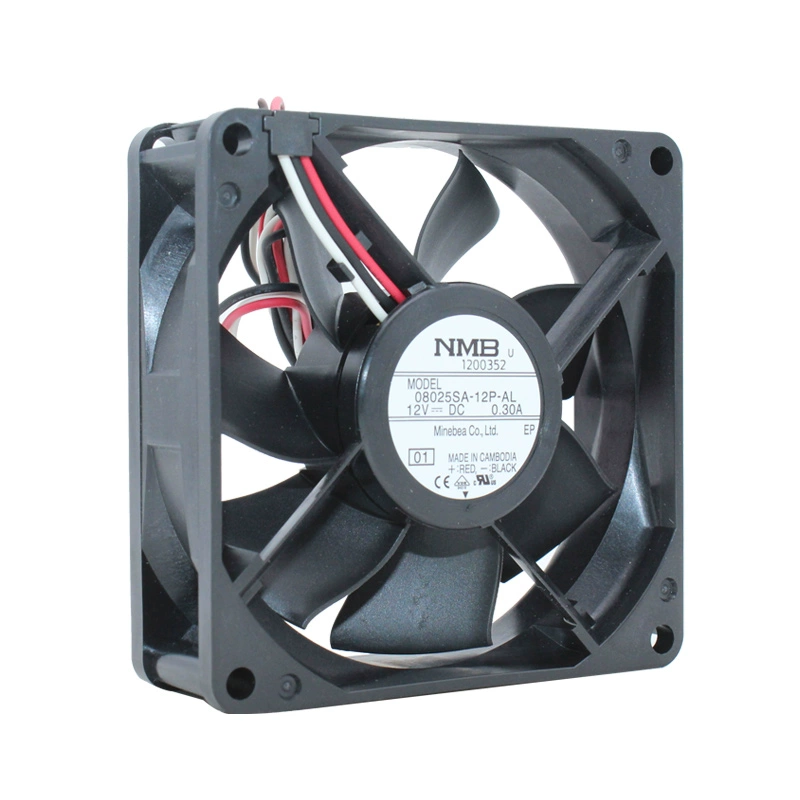

The NMB 08025SA-12P-AL-01 is a reliable 12V DC axial cooling fan. Measuring 80mm x 80mm x 25mm, this fan is designed for general-purpose cooling in various electronic systems, computers, and appliances where quiet and efficient airflow is needed. It operates at a rated voltage of 12V DC and draws a current of 0.30A, resulting in a power consumption of 3.60W. This allows it to achieve a rotational speed of 3500 RPM, delivering an airflow of 46.9 CFM and a static pressure of 0.201 inch-H2O. Its noise level is 34.0 dBA. The fan features durable ball bearings for an operational lifespan of 40,000 hours at 60°C. It comes with 3-wire leads for power, ground, and a locked rotor sensor output for status monitoring, along with auto-restart functionality.
Model Number: 08025SA-12P-AL-01
Manufacturer: NMB Technologies Corporation
Series: SA Series
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 12V DC
Operating Voltage Range: 6V to 13.8V DC
Rated Current: 0.30A
Rated Power: 3.60W
Speed: 3500 RPM
Airflow: 46.9 CFM (1.33 m³/min)
Static Pressure: 0.201 inch-H2O (50.1 Pa)
Noise Level: 34.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Locked Rotor Sensor (Alarm Output)
Operating Temperature: -10°C to +70°C
Weight: 80g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
