Description
The NMB 09225SA-12L-AT-D2 is a quiet and reliable DC Axial Cooling Fan from NMB Technologies, designed for general-purpose thermal management in electronic devices. Operating on 12V DC power, it draws 0.10A of current, resulting in a 1.2W power consumption. Measuring 92mm x 92mm x 25mm, this fan is suitable for applications where low noise is desired without sacrificing essential cooling. It rotates at a speed of 2400 RPM, delivering an airflow of 39.9 CFM and a static pressure of 0.12 inch-H2O. With a low noise level of 25 dBA, it provides quiet operation. Equipped with 3-wire leads, it provides tachometer output for speed monitoring and utilizes durable ball bearings. The fan boasts a long life expectancy of 100,000 hours at 25°C and includes auto restart for enhanced reliability. It operates efficiently within a temperature range of -10°C to 70°C.

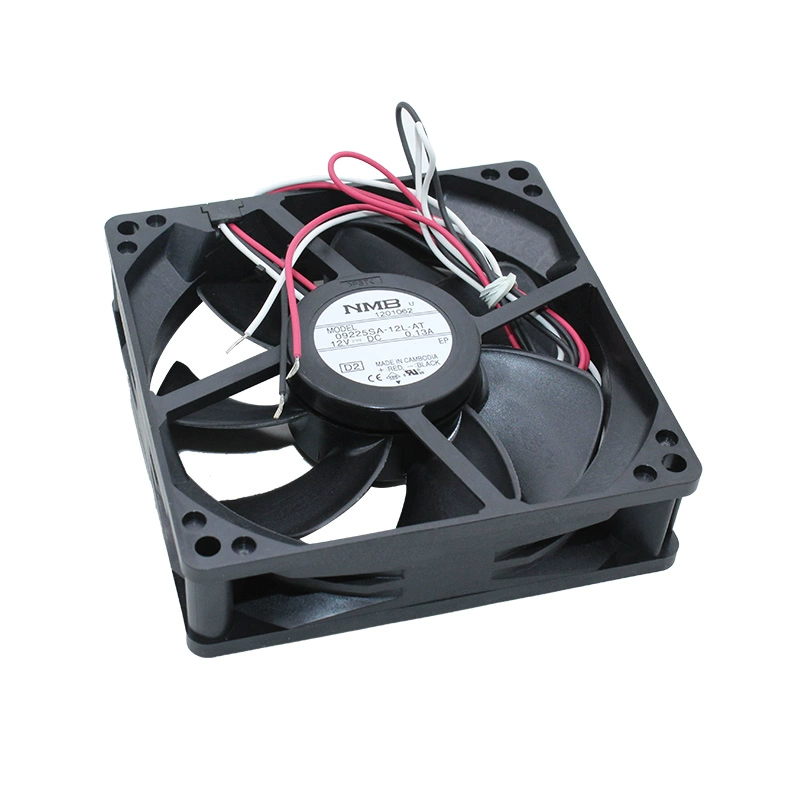

09225SA-12L-AT-D2 Original NMB 09225SA-12L-AT 9025 0.13A cooling fan 12V 9CM cooling fan
Model Number: 09225SA-12L-AT-D2
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.10A
Rated Power: 1.2W
Speed: 2400 RPM
Airflow: 39.9 CFM (1.13 m³/min)
Static Pressure: 0.12 inch-H2O (29 Pa)
Noise Level: 25 dBA
Dimensions: 92mm x 92mm x 25mm
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10) or 40,000 hours at 60°C (L10)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic UL94V-0
Impeller Material: Plastic UL94V-0
Features: Tachometer Output (Speed Sensor), Auto Restart
