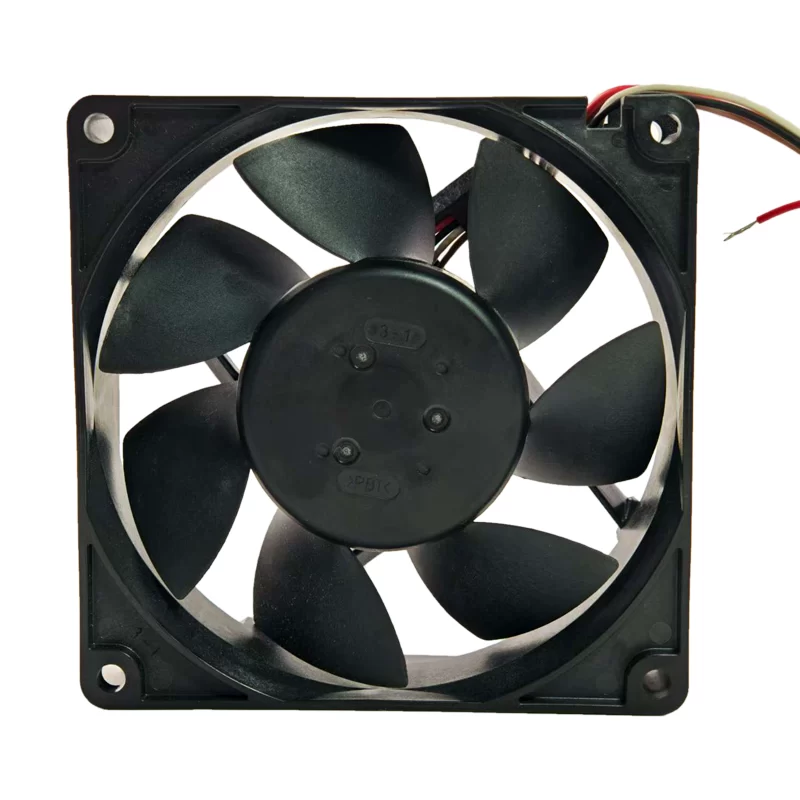

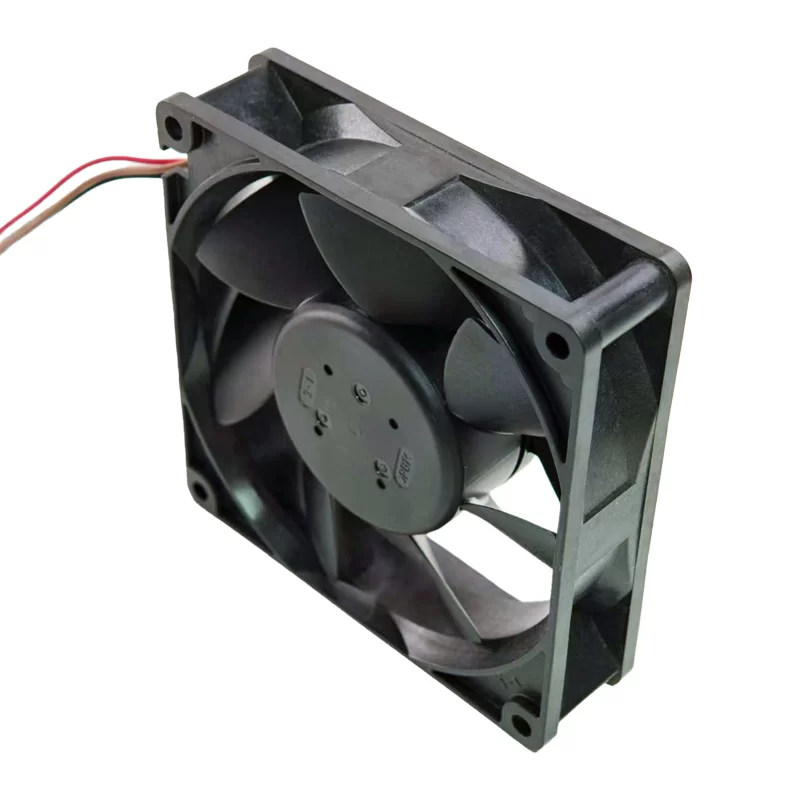

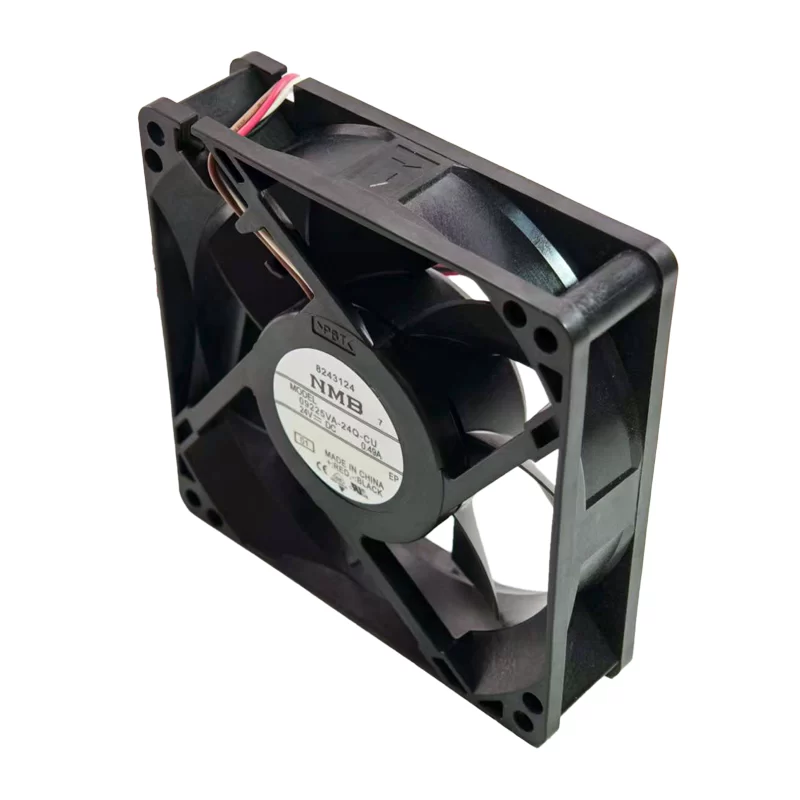

09225VA-24Q-CU-01 NMB 24V DC Axial Fan

Description

The NMB 09225VA-24Q-CU-01 is a powerful DC Axial Fan designed for effective thermal management in demanding systems. Measuring 92 x 92 x 25 mm, the fan operates with a nominal voltage of 24 V DC. The fan has a current rating of 0.38 A with a label current of 0.49 A, and an input power of 9.12 W. It is built with a reliable Ball Bearing system to achieve a high rotational speed of 5600 RPM. This fan provides a high airflow of 96.4 CFM (approximately 2.73 m3/min) and a high maximum static pressure of 0.6 inH2O (approximately 150 Pa) to overcome high system impedance. The fan is equipped with four wire leads, typically providing PWM control and a TACH signal output for precise speed management and monitoring. It generates a noise level of 51 dB(A).

09225VA-24Q-CU-01 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 09225VA-24Q-CU-01
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 V DC
Current Rating: 0.38 A
Label Current: 0.49 A
Input Power: 9.12 W
Rated Speed: 5600 RPM
Airflow: 96.4 CFM
Static Pressure: 0.6 inH2O
Noise Level: 51 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Mass: 135 g
Frame Material: Plastic (UL94V-0)
Impeller Material: Plastic (UL94V-0)

Application
The 09225VA-24Q-CU-01 fan’s combination of high airflow and static pressure specifications makes it an excellent choice for critical cooling applications in high-density server enclosures, network telecommunications equipment, industrial control panels, inverter fans (for variable frequency drives), and other systems that require powerful, controlled forced-air cooling in restricted spaces.
