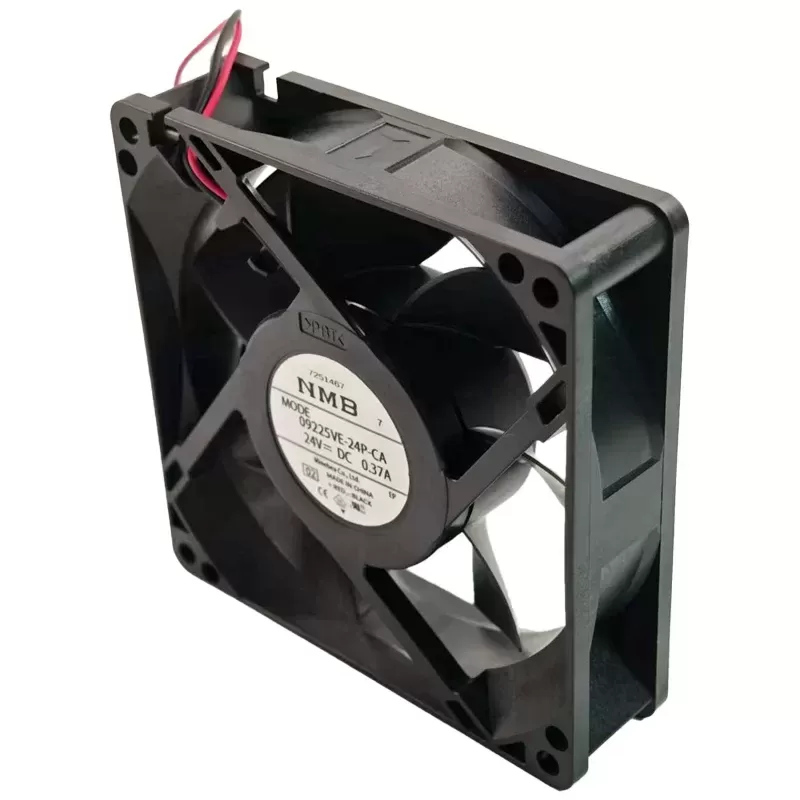

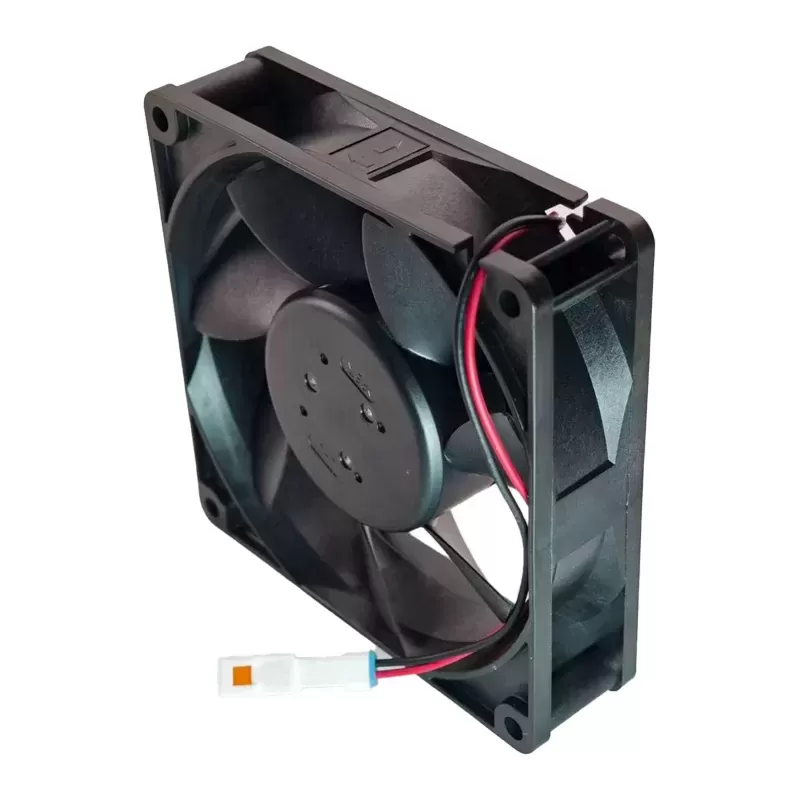

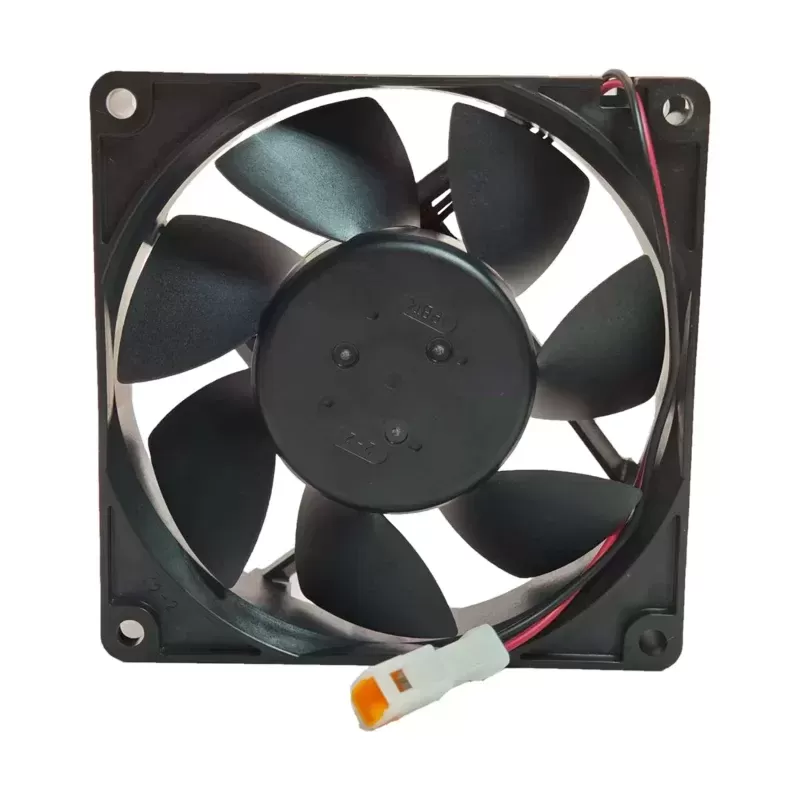

09225VE-24P-CA-02 NMB 24V DC 0.37A axial fan

Description

The NMB 09225VE-24P-CA-02 is a high-performance DC axial fan measuring 92x92x25mm. It operates on 24 VDC, drawing 0.37 A of current, with a power consumption of 8.88 W. This fan achieves a speed of 4500 RPM, providing a strong airflow of 81.2 CFM (2.3 m³/min) with a static pressure of 0.65 inch H2O. The noise level is 49 dB(A). It features ball bearings for enhanced durability and includes an Auto Restart function and a Tachometer for speed monitoring. It connects via 3-wire Leads. This fan is designed for demanding applications such as server cooling, telecom equipment, and other systems requiring efficient and controlled cooling in confined spaces.

09225VE-24P-CA-02 Fan Parameters
Model: 09225VE-24P-CA-02
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92x92x25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 14-27.6 VDC
Rated Current: 0.37 A
Power Consumption: 8.88 W
Speed: 4500 RPM
Airflow: 81.2 CFM (2.3 m³/min)
Static Pressure: 0.65 inch H2O (162.5 Pa)
Noise Level: 49 dB(A)
Bearing Type: Ball Bearing
Termination: 3-wire Leads
Features: Auto Restart, Tachometer
Weight: 150 g
Material Frame: Plastic (PBT)
Material Blade: Plastic (PBT)
Operating Temperature: -10 to 70°C
Expected Life: 60000 Hrs at 60°C (100000 Hrs at 40°C)
Application: Server cooling, telecom equipment, high performance cooling in compact spaces.
