Description

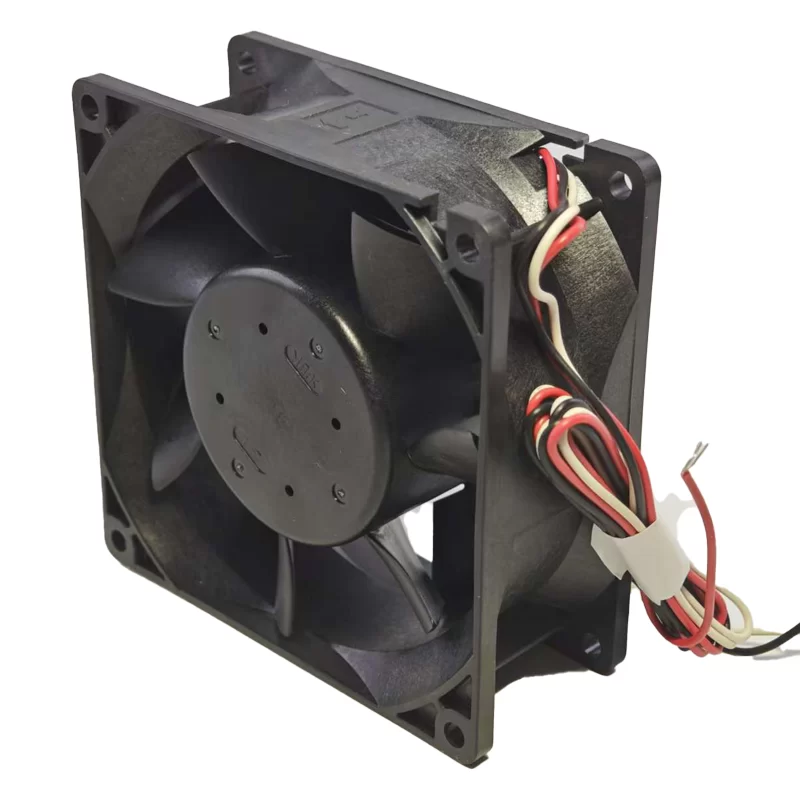

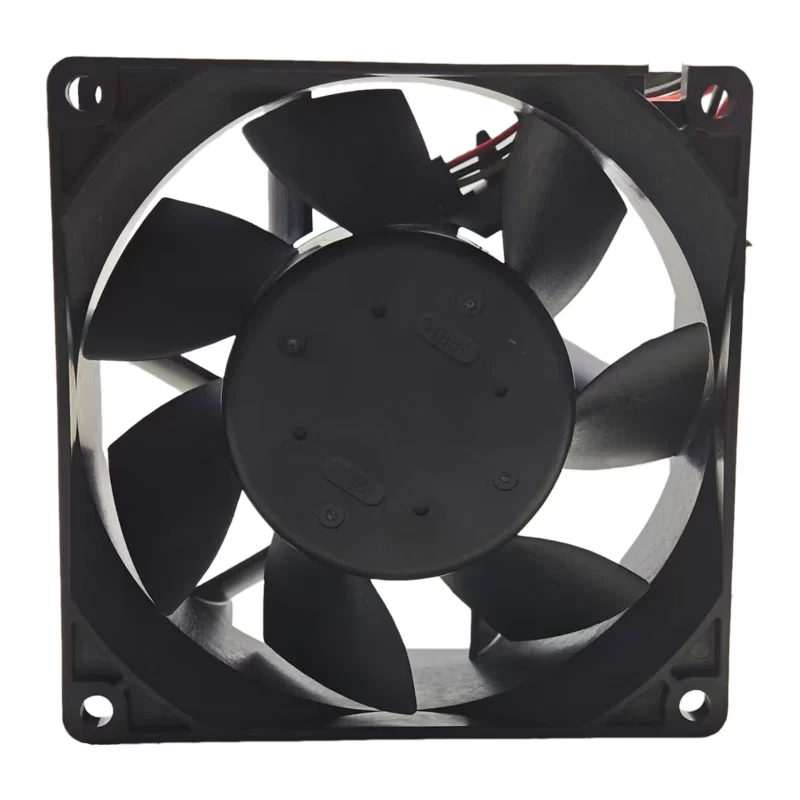

The NMB-MAT 09238RA-24M-FL is a very powerful and highly reliable 24V DC axial fan, measuring 92x92x38mm. Built with ball bearings, it offers exceptional durability and an extended operational lifespan of 100,000 hours. Drawing 0.73A of current, this fan is designed to deliver a high volume of airflow and static pressure, making it extremely effective for heat dissipation in demanding environments. Its 3-wire termination provides a speed sensor for real-time RPM monitoring. This robust design makes it an ideal choice for high-performance servers, industrial control systems, networking equipment, and other applications where dependable, high-volume thermal management with monitoring capabilities is crucial.

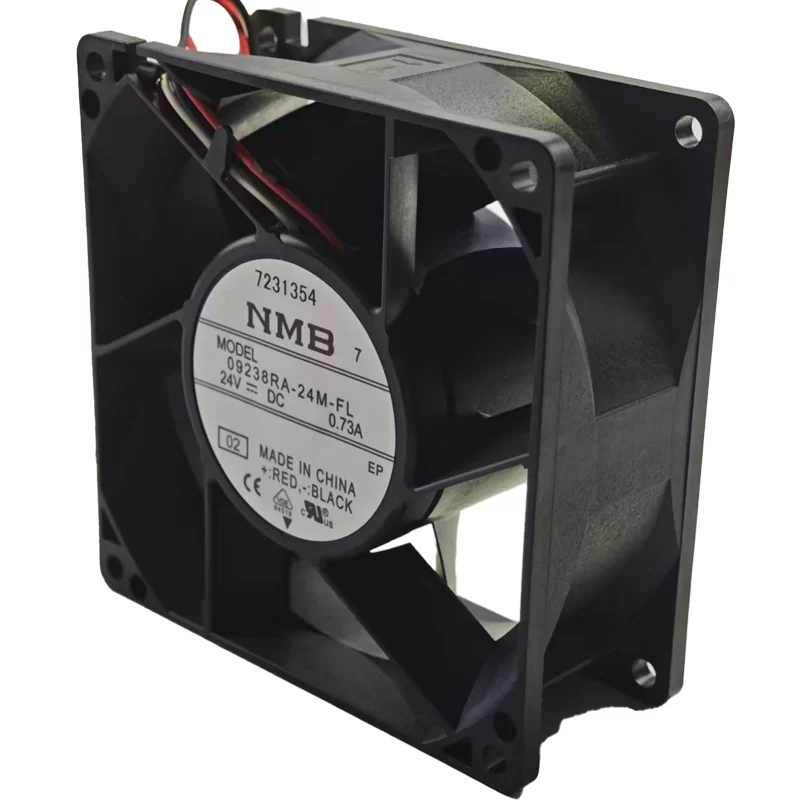

Brand new original NMB 09238RA-24M-FL 24V 0.73A three-wire alarm 9238 cooling fan
Manufacturer: NMB Technologies Corporation
Model: 09238RA-24M-FL
Type: DC Axial Fan
Dimensions: 92mm x 92mm x 38mm
Nominal Voltage: 24V DC
Current: 0.73A
Power Consumption: 17.52W
Speed: 6000 – 6500 RPM
Airflow: 125 – 135 CFM
Static Pressure: 0.8 – 0.9 In H2O
Noise Level: 60 – 65 dBA
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Termination: 3-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: Auto Restart, Polarity Protection, Speed Sensor
