Description

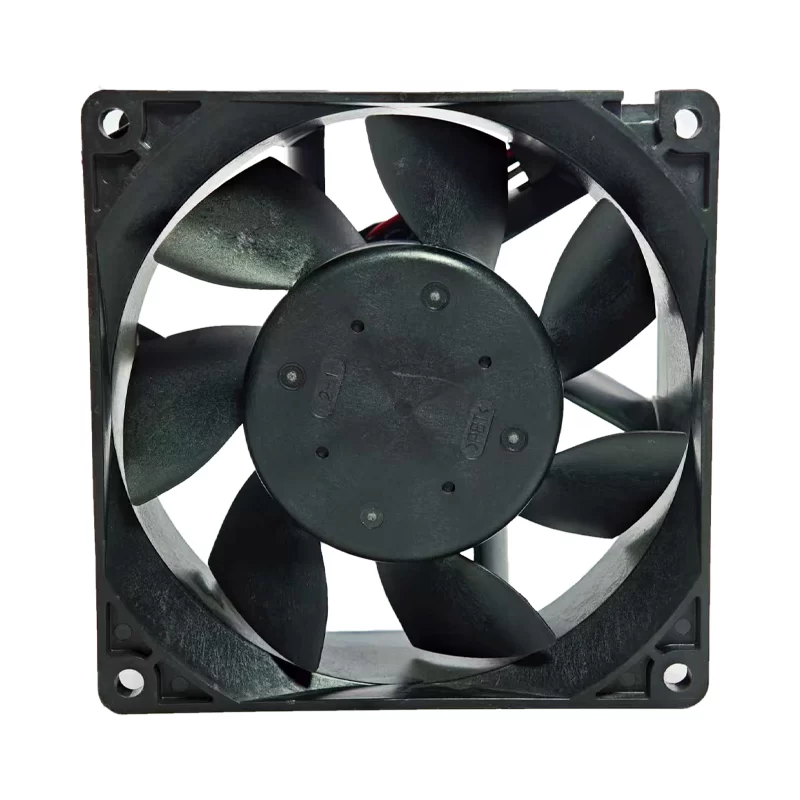

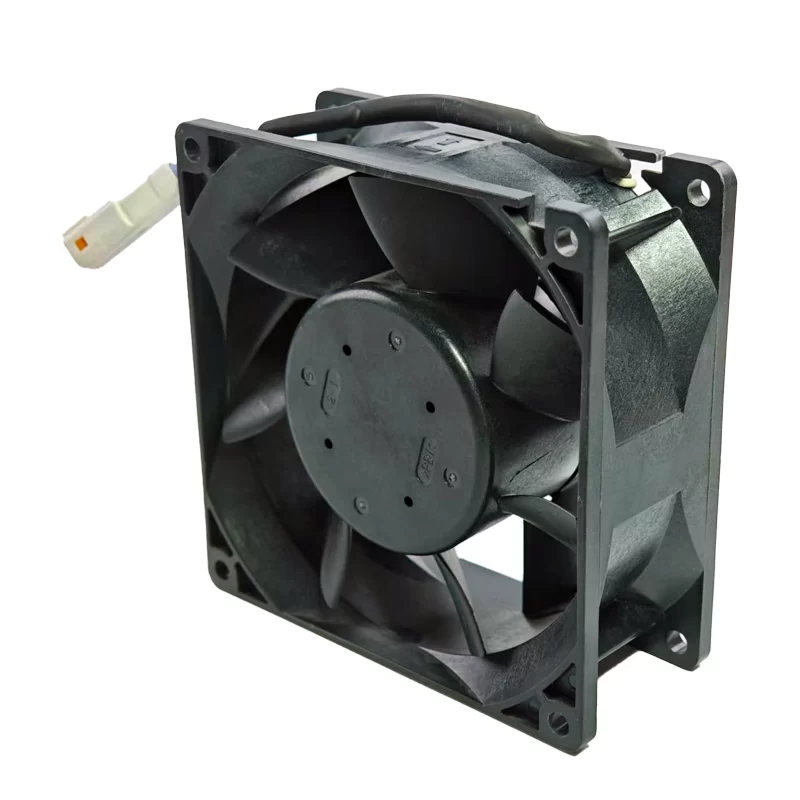

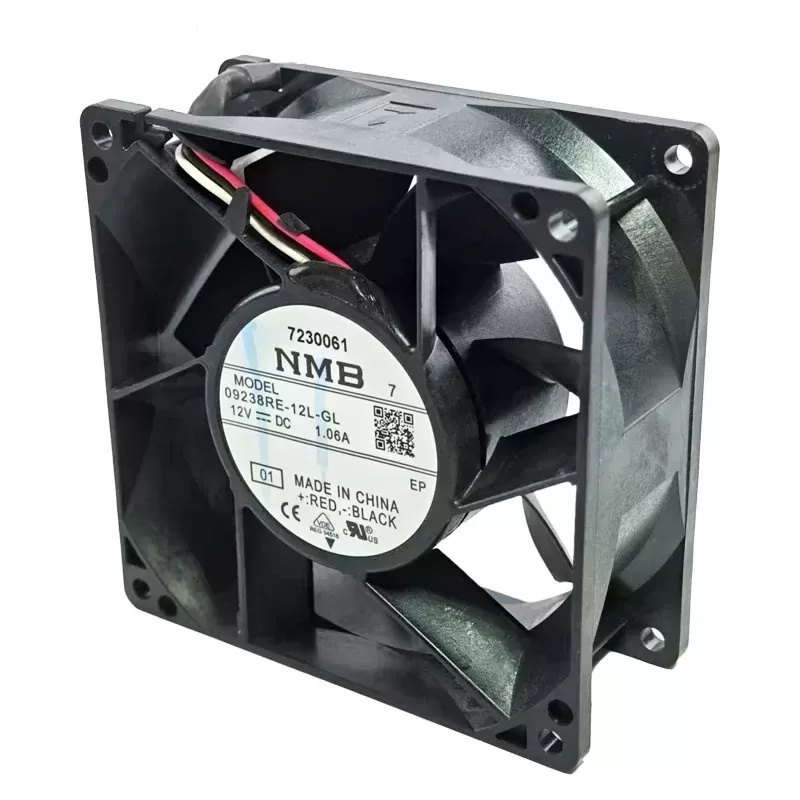

The NMB 09238RE-12L-GL is a powerful 12V DC axial fan, measuring 92mm x 92mm x 38mm, manufactured by NMB Technologies Corporation. This fan is designed for high-performance cooling in demanding electronic applications that require substantial airflow and static pressure. It features durable ball bearings, contributing to a long operational lifespan of 70,000 hours at 40°C. Drawing 0.6A of current, it consumes 7.2W of power. This fan operates at an estimated 4500 RPM, delivering 95 CFM of airflow and generating 0.45 inches of H2O static pressure, with a moderate 48 dBA noise level. Equipped with 3-wire leads, it commonly provides a speed sensor output for monitoring. The NMB 09238RE-12L-GL is an excellent choice for cooling components in servers, power supplies, industrial control systems, and high-performance computing devices that require effective and reliable thermal management.
Model: 09238RE-12L-GL
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92mm x 92mm x 38mm
Nominal Voltage: 12V DC
Operating Voltage Range: 7V to 13.8V DC
Current: 0.6A
Power Consumption: 7.2W
Speed: 4500 RPM
Airflow: 95 CFM
Static Pressure: 0.45 In H2O
Noise Level: 48 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C, L10)
Termination: 3-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart. Often includes speed sensor (Tachometer/FG output).
09238RE-12L-GL NMB 12V 1.06A 9238 inverter fan
