Description

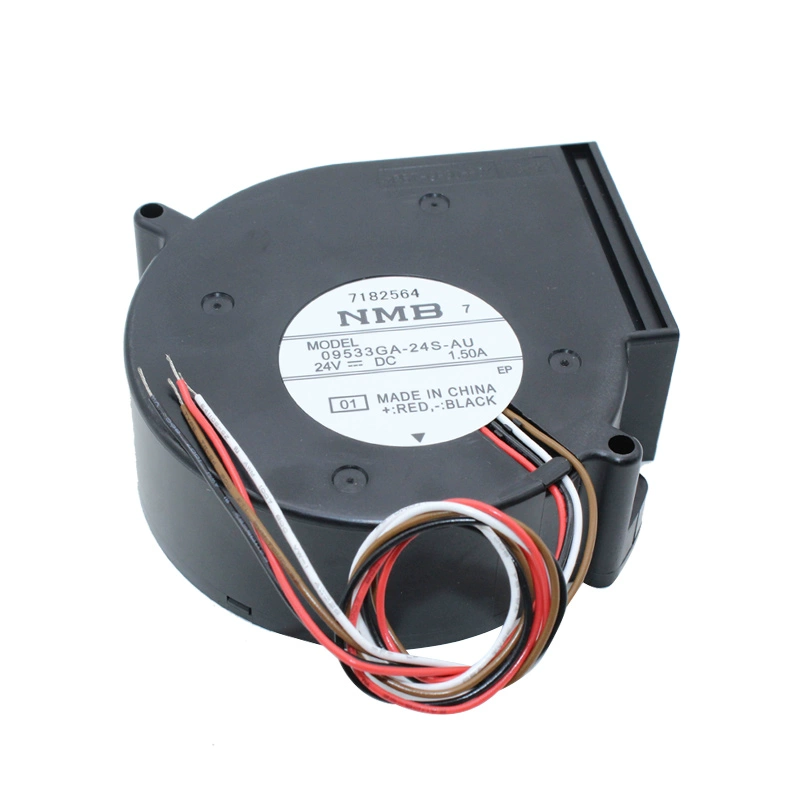

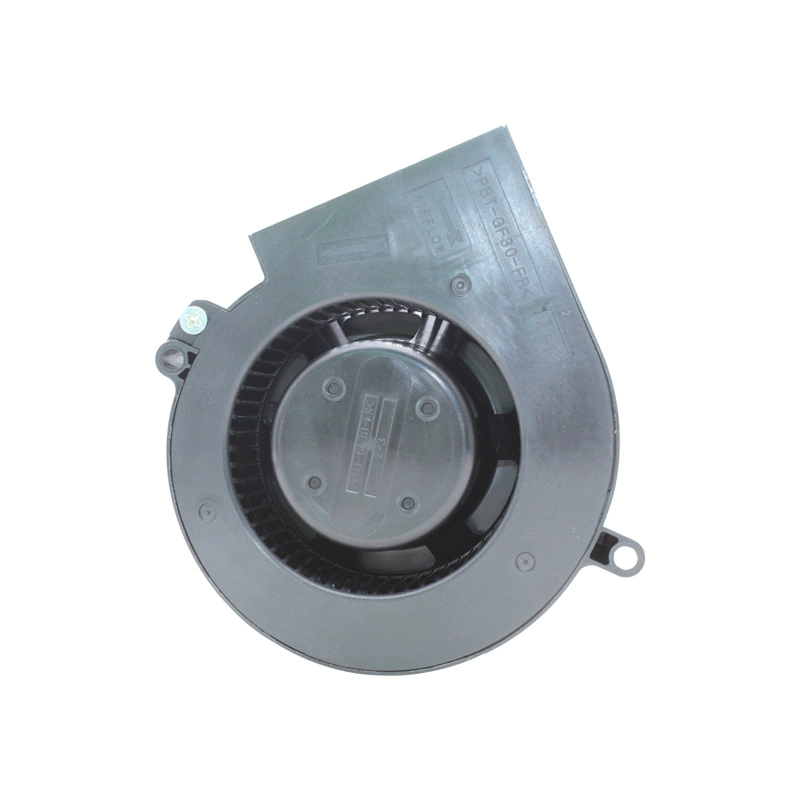

The NMB 095533GA-24S-AU-01 is an exceptionally powerful DC Centrifugal Blower Fan from NMB Technologies, designed for intense thermal management in demanding applications. Operating on 24V DC power, it draws a substantial 1.50A of current, resulting in a 36.0W power consumption. Measuring 95mm x 95mm x 33mm, this blower is built for systems requiring very high static pressure and focused airflow, such as in high-density server racks, telecom equipment, and specialized industrial controls. Equipped with 4-wire leads, it includes a speed sensor for monitoring and PWM control for precise speed adjustment, utilizing durable ball bearings. The fan boasts a long life expectancy of 100,000 hours at 25°C and is designed to operate reliably within a temperature range of -10°C to 70°C, also featuring auto restart and polarity protection for dependable performance. Please note that specific performance metrics such as speed, airflow, static pressure, and noise level for a 1.50A, 4-wire variant of this precise model are not consistently available in general documentation.
Model Number: 095533GA-24S-AU-01
Manufacturer: NMB Technologies
Type: DC Centrifugal Blower Fan
Rated Voltage: 24V DC
Operating Voltage Range: 10V to 26V DC
Rated Current: 1.50A
Rated Power: 36.0W
Dimensions: 95mm (Height) x 95mm (Width) x 33mm (Depth)
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Speed Sensor (Tachometer), PWM Control, Polarity Protection
