Description

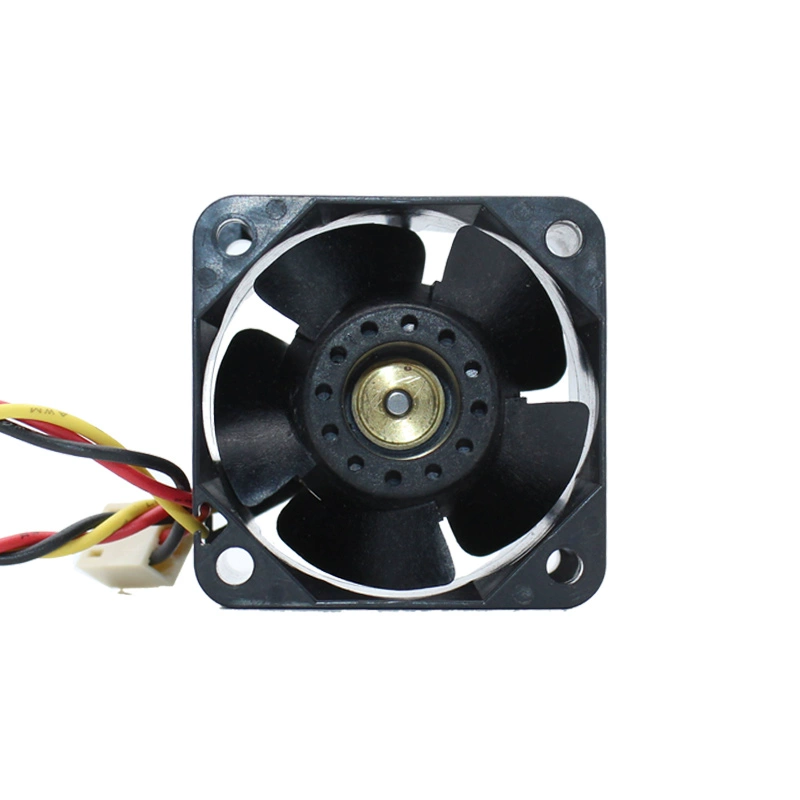

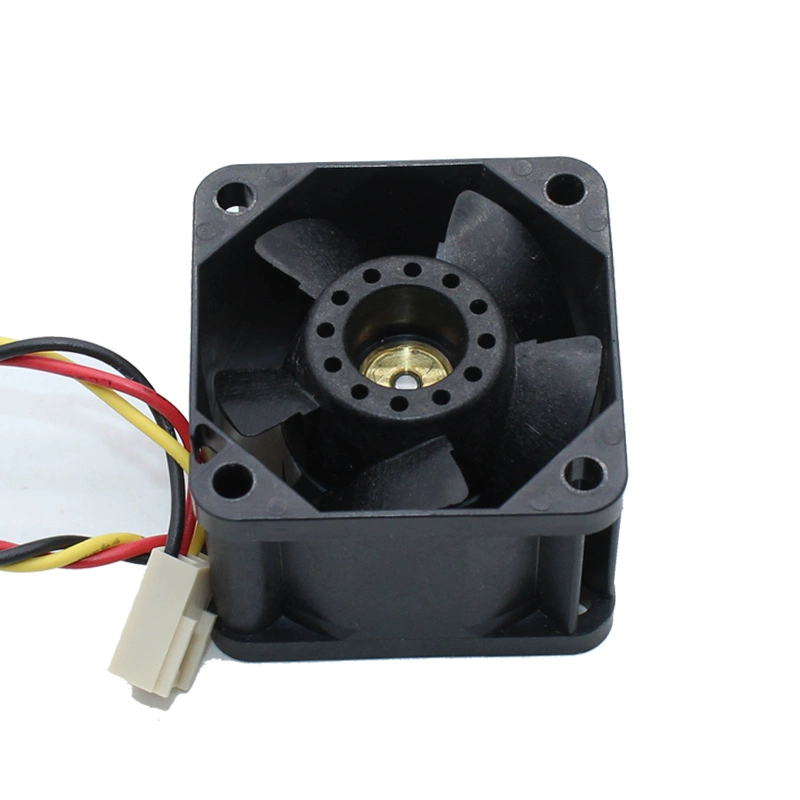

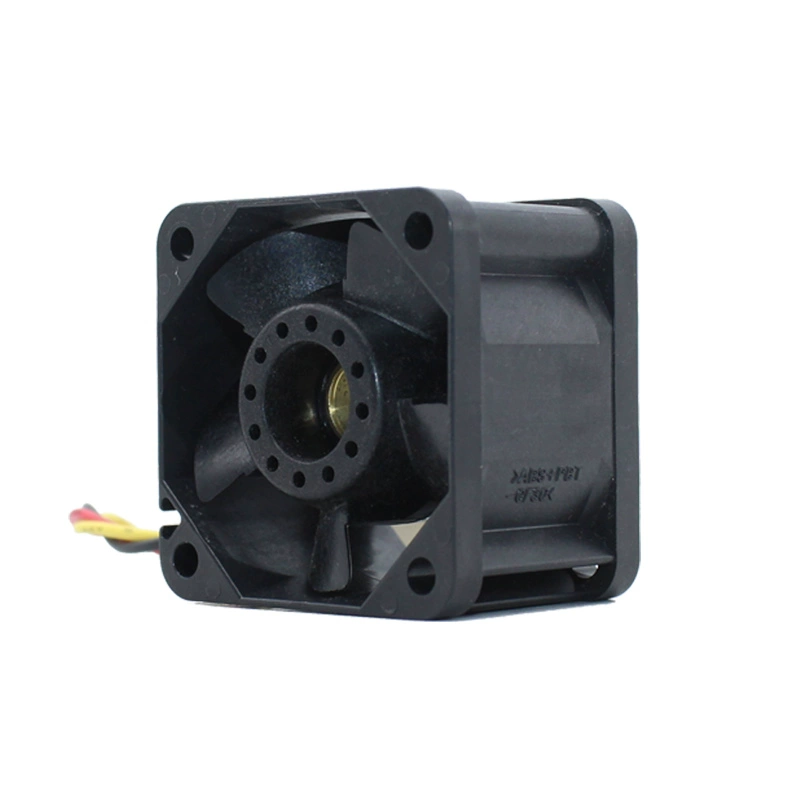

The Sanyo Denki 109P0412H3013 is a high-performance 12V DC axial cooling fan from Sanyo Denki’s San Ace 40 series, measuring 40mm x 40mm x 28mm. This fan is specifically designed for efficient thermal management in compact and high-density electronic equipment, such as servers, networking devices, and industrial control systems. Operating at a rated current of 0.195A (2.34W), it achieves a very high rotational speed of 8700 RPM, delivering 11.3 CFM of airflow with a notable static pressure of 0.414 inch-H2O (102.9 Pa). Its noise level is 37.0 dBA. Equipped with ball bearings, it offers a long operational life of 60,000 hours at 60°C. The fan typically utilizes 3-wire leads, which include a pulse sensor (tachometer) output for real-time speed monitoring, along with locked rotor protection and reverse polarity protection, ensuring robust and controlled performance in critical cooling applications.
Model Number: 109P0412H3013
Manufacturer: Sanyo Denki (San Ace series)
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12V DC
Operating Voltage: 7V to 13.8V DC
Rated Current: 0.195A
Rated Power: 2.34W
Speed: 8700 RPM
Airflow: 11.3 CFM / 0.32 m³/min
Static Pressure: 0.414 inch-H2O / 102.9 Pa
Noise Level: 37.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C (L10)
Operating Temperature: -20°C to 70°C
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Features: Pulse Sensor (Tachometer Output), Locked Rotor Protection, Reverse Polarity Protection
