Description

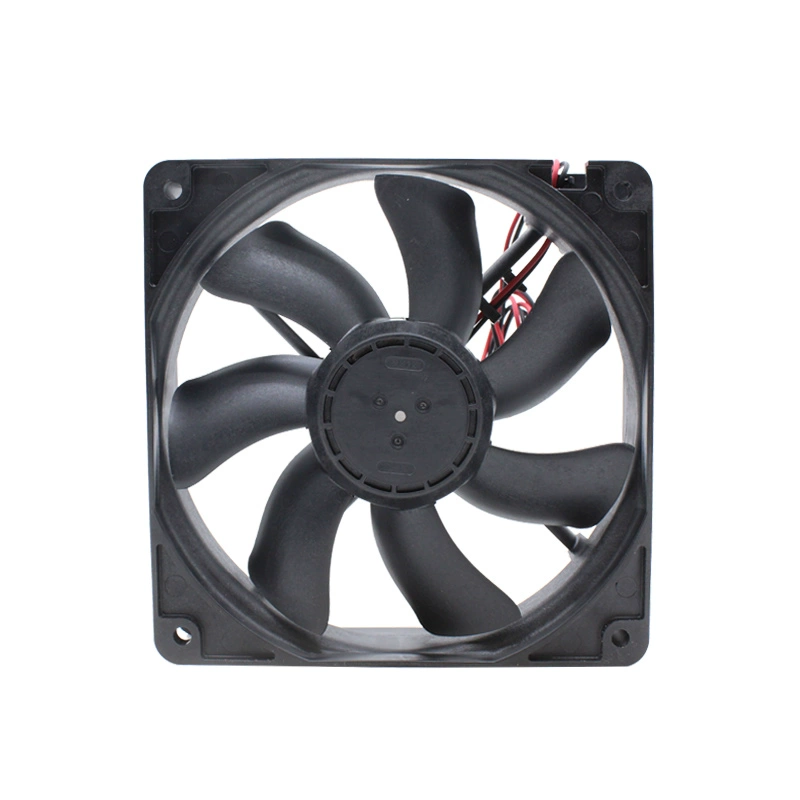

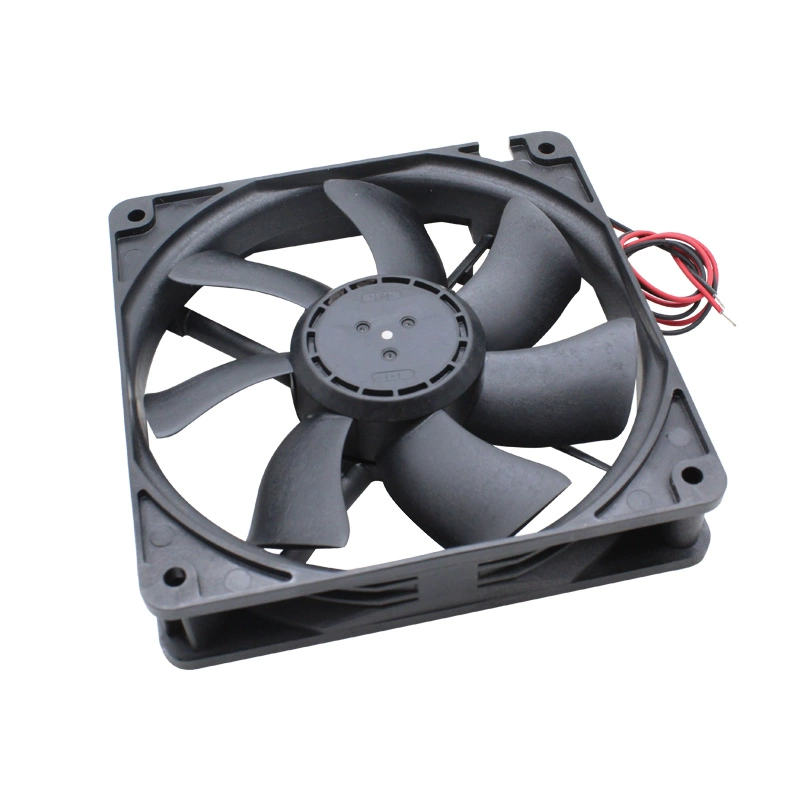

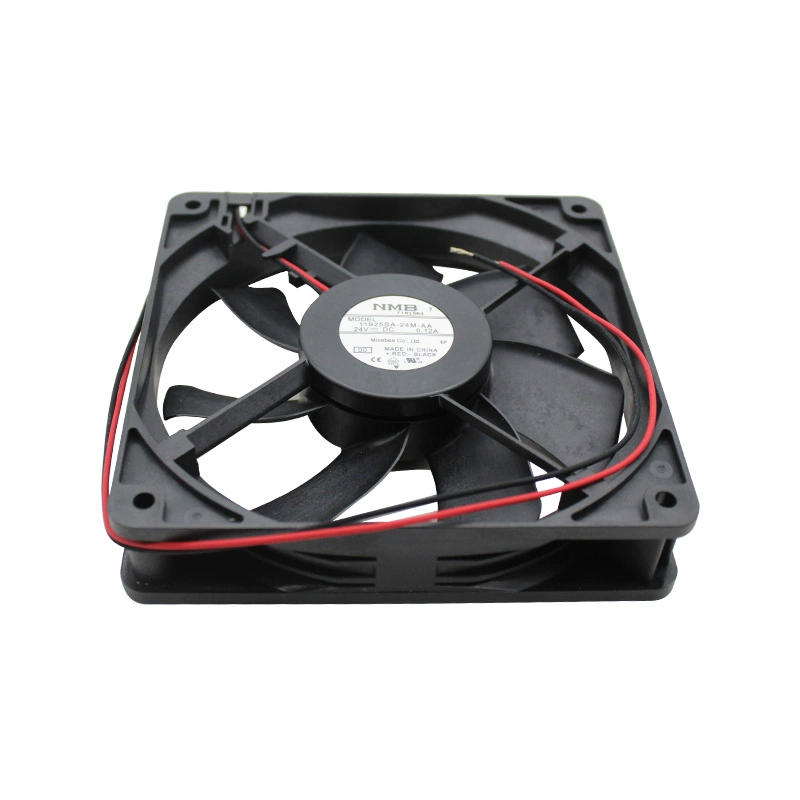

The NMB 11925SA-24M-AA-00 is a standard DC Axial Cooling Fan from NMB Technologies, designed for general-purpose thermal management. Operating on 24V DC power, it draws 0.12A of current, resulting in a 2.88W power consumption. Measuring 119mm x 119mm x 25mm, this fan is suitable for cooling applications in various electronic enclosures, power supplies, and control cabinets where a balance of airflow and low noise is desired. It rotates at a speed of 2700 RPM, delivering an airflow of 96.0 CFM and generating a static pressure of 0.21 inch-H2O. With a noise level of 38 dBA, it offers quiet and effective cooling. Equipped with 2-wire leads and durable ball bearings, the fan boasts a life expectancy of 40,000 hours at 60°C. It is designed to operate reliably within a temperature range of -10°C to 70°C and includes auto restart and polarity protection for dependable performance.
Model Number: 11925SA-24M-AA-00
Manufacturer: NMB Technologies
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Operating Voltage Range: 12V to 27.6V DC
Rated Current: 0.12A
Rated Power: 2.88W
Speed: 2700 RPM
Airflow: 96.0 CFM
Static Pressure: 0.21 inch-H2O
Noise Level: 38 dBA
Dimensions: 119mm x 119mm x 25mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
