Description

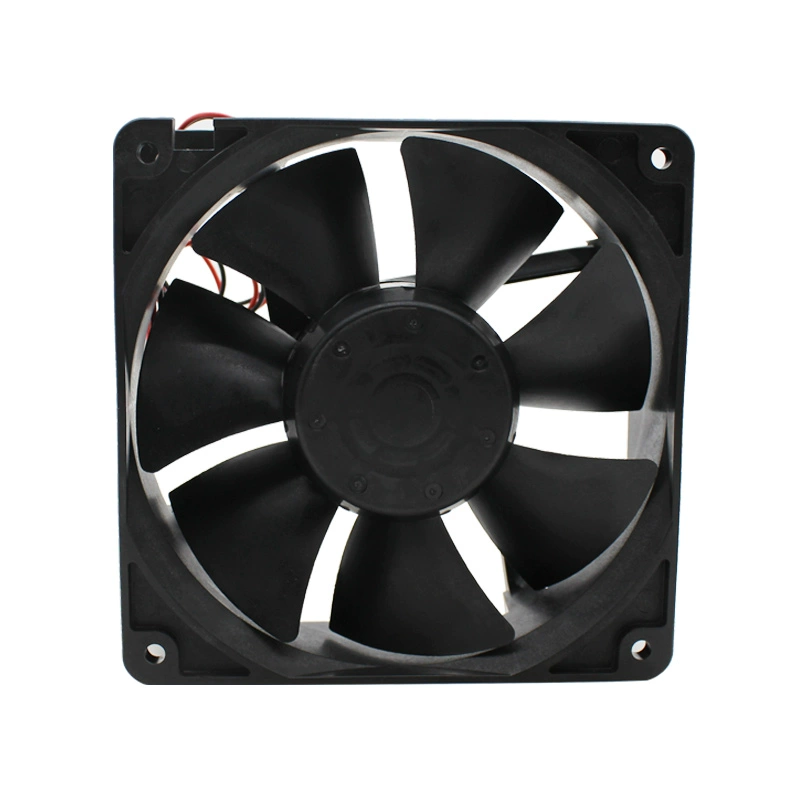

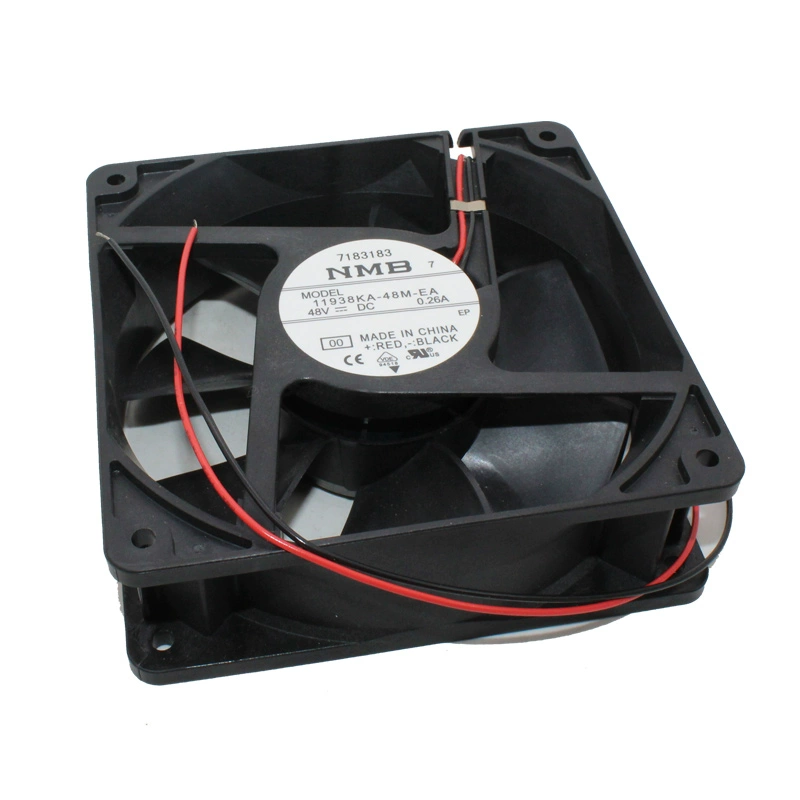

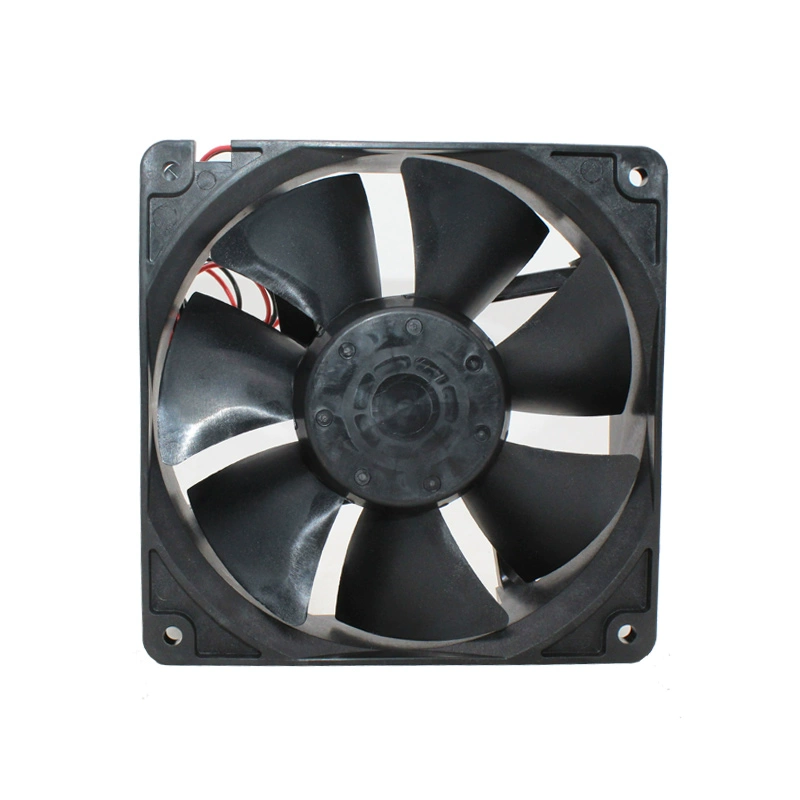

The NMB 11938KA-48M-EA-00 is a high-performance 48V DC axial cooling fan from NMB Technologies Corporation. Measuring 119mm x 119mm x 38mm, this fan is designed for efficient thermal management in various electronic systems and industrial applications. It operates at a rated current of 0.26A, consuming 12.48W of power. This allows it to achieve a speed of 3200 RPM, delivering an airflow of 113 CFM and a static pressure of 0.33 inch-H2O. Its noise level is 46.5 dBA. The fan features durable ball bearings for an extended operational lifespan of 100,000 hours at 25°C. This model commonly comes with 2-wire leads and features like auto-restart and polarity protection.
Model Number: 11938KA-48M-EA-00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 48V DC
Operating Voltage Range: 25.0V to 50.0V DC
Rated Current: 0.26A
Rated Power: 12.48W
Speed: 3200 RPM
Airflow: 113 CFM (3.2 m³/min)
Static Pressure: 0.33 inch-H2O (81.3 Pa)
Noise Level: 46.5 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10 Life)
Frame Material: Plastic (Black, UL94V-0)
Impeller (Blade) Material: Plastic (Black, UL94V-0)
Features: Auto Restart / Polarity Protection
Operating Temperature: -10°C to +70°C
