Description

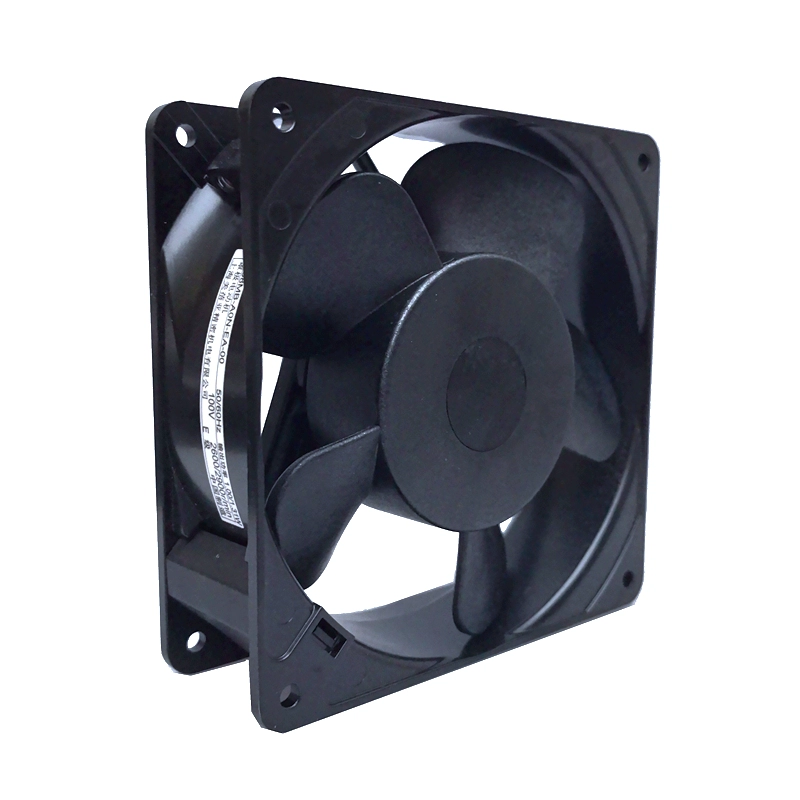

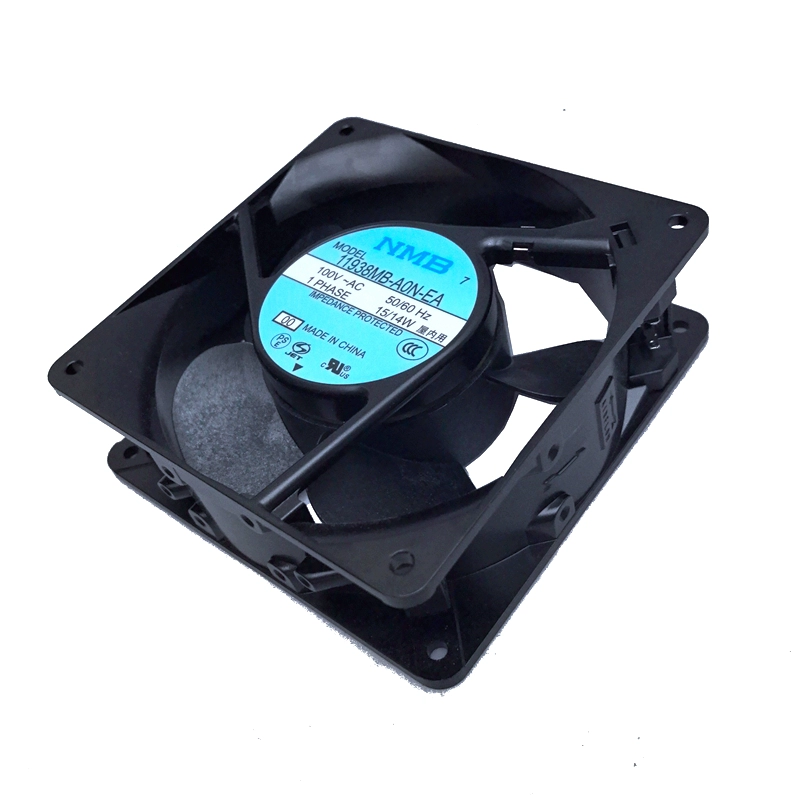

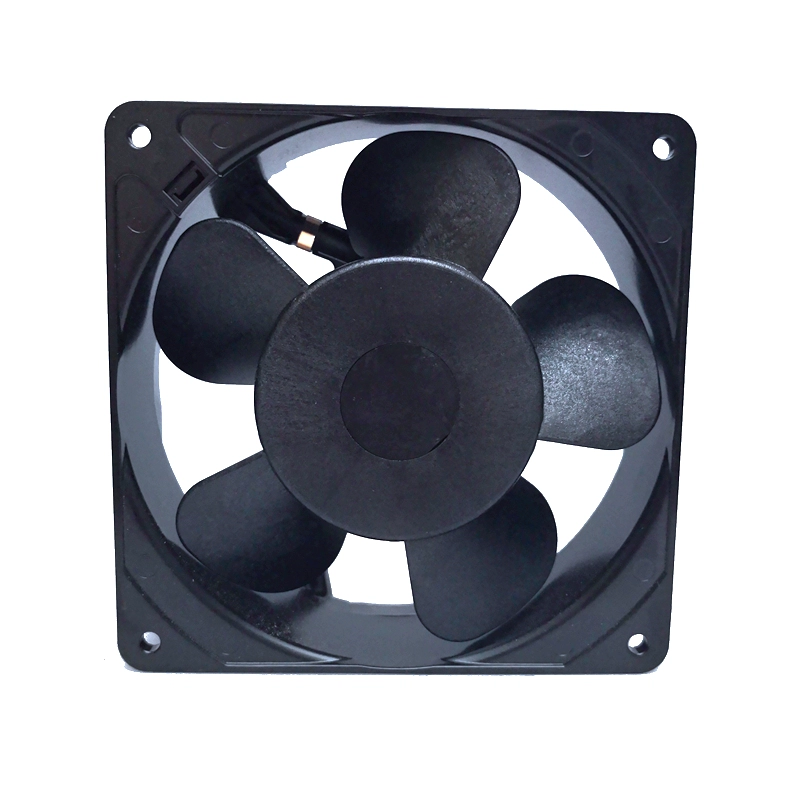

The NMB 11938MB-A0N-EA-00 is a 119x119x38mm AC axial fan designed for reliable and consistent airflow in various electronic enclosures and industrial equipment. Operating on 100 VAC at 50/60 Hz, this fan typically draws 0.23A of current, consuming 14W of power. It achieves a rotational speed of 2900 RPM, delivering an airflow of 103.6 CFM (approximately 2.9 m³/min or 174 m³/h). With a noise level of 41 dB(A) and utilizing durable ball bearings, it ensures stable and relatively quiet operation. This model features 2-wire leads for connection. Its robust construction with an aluminum frame makes it suitable for applications such as power supplies, control cabinets, and general equipment ventilation.
11938MB-A0N-EA-00 Fan Parameters
Model Number: 11938MB-A0N-EA-00
Manufacturer: NMB Technologies Corporation
Series: 11938MB
Type: AC Axial Fan (Tubeaxial)
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 100 VAC
Frequency: 50 Hz / 60 Hz
Rated Current: 0.23A (at 60Hz) / 0.27A (at 50Hz)
Power Consumption: 14 W (at 60Hz) / 15 W (at 50Hz)
Speed: 2900 RPM (at 60Hz) / 2600 RPM (at 50Hz)
Airflow: 103.6 CFM (2.9 m³/min or 174 m³/h at 60Hz) / 88.3 CFM (2.50 m³/min or 150 m³/h at 50Hz)
Static Pressure: 76.4 Pa (0.310 inch H2O at 60Hz) / 64.7 Pa (0.26 inch H2O at 50Hz)
Noise Level: 41 dB(A) (at 60Hz) / 37 dB(A) (at 50Hz)
Bearing Type: Ball Bearing
Frame Material: Aluminum
Termination: 2-Wire Leads (Terminals)
Expected Life: 100,000 hours @ 25°C
Operating Temperature: -10°C to +70°C
Weight: 550 g
Application: Power supplies, control panels, HVAC systems, industrial equipment, general enclosure ventilation.
