Description

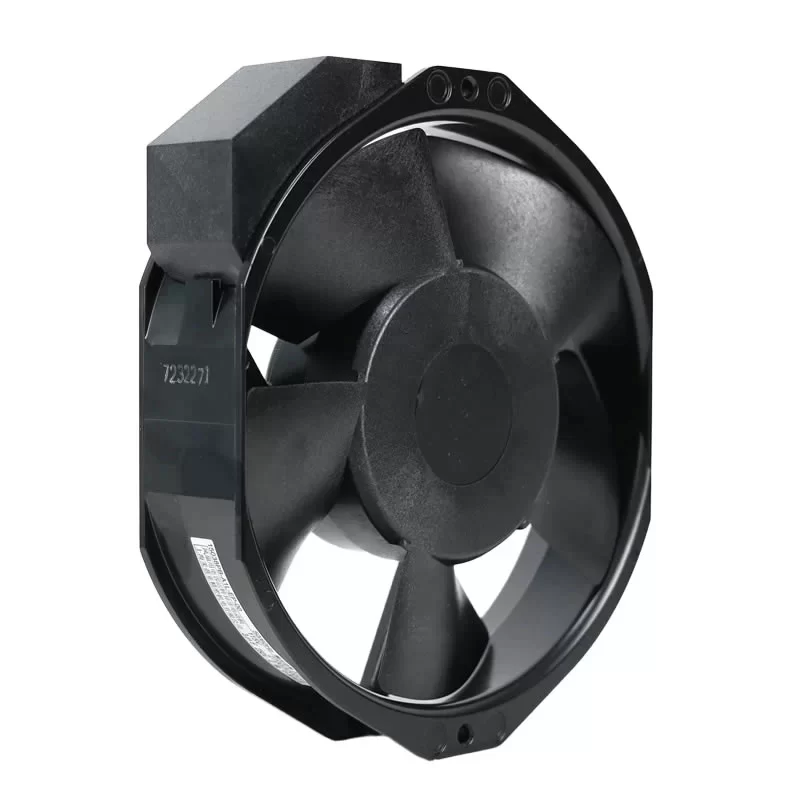

The NMB 15038PB-A1L-EP-00 is a high-performance AC axial fan featuring dimensions of 172 x 150 x 38 mm and a capacitor-run induction motor architecture with plastic blades. Engineered for a nominal voltage of 115 VAC at 50 / 60 Hz with a starting voltage of 75 V, it delivers multi-frequency performance: operating at 50 Hz, it provides a rated speed of 2,700 min⁻¹, drawing an input power of 35.0 W with a current of 0.380 A, a Max. Air Flow of 5.00 m³/min (178.6 CFM), and a Max. Static Pressure of 156.9 Pa (0.63 inAq); at 60 Hz, it achieves a rated speed of 3,200 min⁻¹, drawing an input power of 32.0 W with a current of 0.360 A, a Max. Air Flow of 6.00 m³/min (214.3 CFM), and a Max. Static Pressure of 215.8 Pa (0.86 inAq). Constructed with a mass of 800 g, an aluminum casing with black painting, plastic (black) UL 94V-0 impeller blades, precision ball bearing system, and Faston #110 terminals (with optional lead wire SPT-1 2X0.824 mm² AWG18), this fan ensures robust industrial durability. It features thermal protection, min. 100M ohm insulation resistance at DC 500V, AC 1800V dielectric withstand voltage for 3s, an acoustic noise level of 52.0 dB, an expected L10 life of 100,000 hours at 25 °C (10% failure rate), and an operating ambient temperature range of -10 to +70 °C (-40 to +70 °C storage).
15038PB-A1L-EP-00 Fan Parameters
Manufacturer: NMB
Model Number: 15038PB-A1L-EP-00
Alternative Model Number: 5915PC-12T-B30-A00
Type: AC Axial Fan / Plastic Blades
Motor Structure: Capacitor-Run Induction Motor
Motor Protection: Thermal Protection
Dimensions: 172 x 150 x 38 mm
Mass: 800 g
Casing Material: Aluminum (Black Painting)
Impeller Material: Plastic (Black) UL 94V-0
Bearing System: Ball Bearing
Terminal Type: Faston #110 or Equiv
Lead Wire: SPT-1 2X0.824 mm² AWG18 (Optional)
Phase: AC
Nominal Voltage: 115 VAC
Frequency: 50 / 60 Hz
Starting Voltage: 75 V
Current: 0.380 A (50 Hz) / 0.360 A (60 Hz)
Input Power: 35.0 W (50 Hz) / 32.0 W (60 Hz)
Speed: 2,700 min⁻¹ (50 Hz) / 3,200 min⁻¹ (60 Hz)
Max. Air Flow: 5.00 m³/min (178.6 CFM) [50 Hz] / 6.00 m³/min (214.3 CFM) [60 Hz]
Max. Static Pressure: 156.9 Pa (0.63 inAq) [50 Hz] / 215.8 Pa (0.86 inAq) [60 Hz]
Acoustic Noise: 52.0 dB
Insulation Resistance: Min. 100M Ohm by DC 500V Megger
Dielectric Withstand Voltage: AC 1800V 3s
Operating Temperature Range: -10 to +70 °C
Storage Temperature Range: -40 to +70 °C (Non-condensing)
Expected Life: 100,000 Hours at 25 °C (L10 Life, 10% Failure Rate)
Application
The NMB 15038PB-A1L-EP-00 is deployed in industrial machinery, ventilation units, power distribution cabinets, instrumentation enclosures, and heavy-duty AC cooling applications requiring reliable high-volume thermal management.
