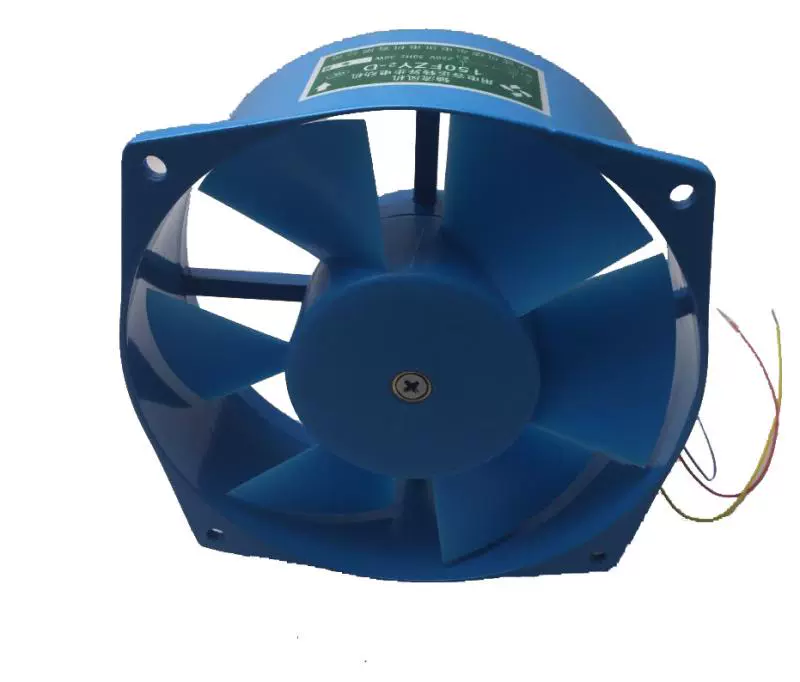

150FZY2-D Bedel 220V reverse capacitive axial flow fan

Description

Brand new original Bedel 150FZY2-D 220V reverse capacitive axial flow fan double ball bearing
Model Number: 150FZY2-D
Fan Type: AC Axial Flow Fan
Dimensions (L x H x W): 150 mm x 160 mm x 60 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz
Phase: Single-phase
Rated Current: 0.16 A
Input Power: 30 W

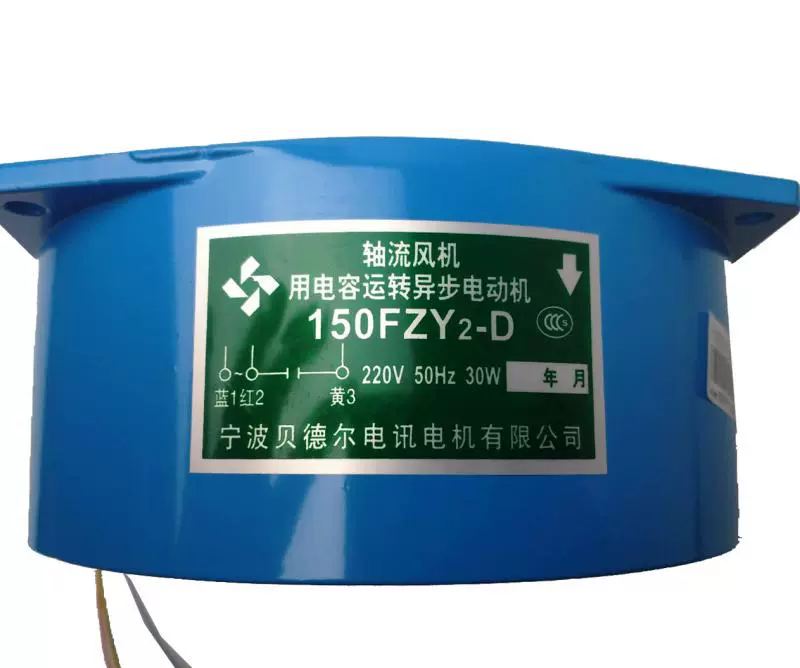

Wiring: 2 or 3 wires
Bearing Type: Ball Bearing
Rotational Speed (RPM): 2800 RPM
Maximum Airflow: 6.12 m³/min (approximately 216 CFM)
Noise Level: 65 dB
Frame Material: Aluminum Alloy
Impeller (Blade) Material: Plastic
Protection Degree: IP54
Dielectric Strength: 1500 Vac 50Hz for 1 minute
Leakage Current: 0.5 mA
Operating Temperature Range: -10°C to +60°C
The 150FZY2-D is a robust 150x160x60mm AC axial flow fan, serving as a general-purpose industrial cooling solution. Operating on 220 VAC single-phase power at 50Hz, it consumes 30W and draws 0.16A. This fan utilizes ball bearings for durability and delivers 6.12 m³/min of airflow at 2800 RPM, with a noise level of 65 dB. Featuring an aluminum alloy frame and an IP54 protection rating, it’s built to withstand industrial environments, providing reliable ventilation for applications such as welding machines, electrical cabinets, and other machinery.
