Description

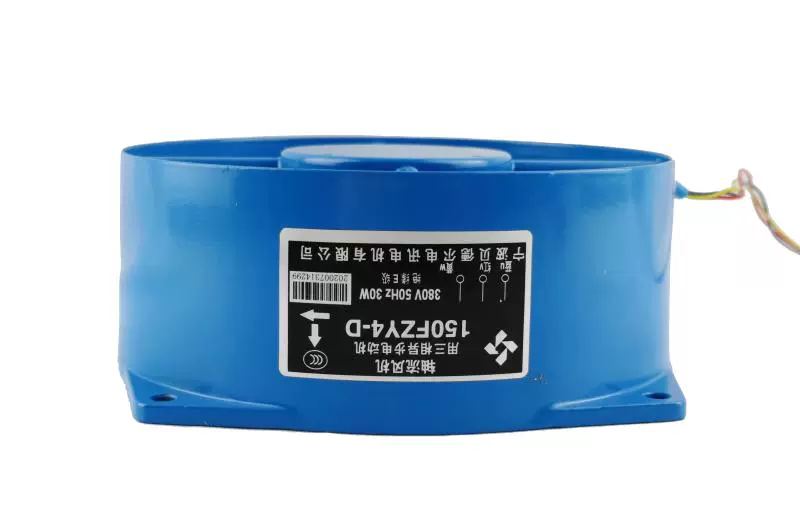

Model Number: 150FZY4-D
Manufacturer: Bedel
Fan Type: AC Axial Flow Fan
Dimensions (L x H x W): 150 mm x 160 mm x 60 mm
Rated Voltage: 380 VAC
Frequency: 50 Hz
Phase: 3-phase
Rated Current: 0.12 A
Input Power: 30 W
Wiring: 3-wire (for 3-phase AC)
Rotational Speed (RPM): 2800 RPM
Max Airflow: 6.12 m³/min
Noise Level: 65 dB(A)
Bearing Type: Ball Bearing
Frame Material: Typically aluminum alloy
Impeller (Blade) Material: PBT plastic or similar
Protection Rating (IP Code): IP54
Dielectric Strength: 1500 Vac 50Hz for 1 minute
Leakage Current: 0.5 mA
Operating Temperature Range: -20°C to +60°C
Expected Life: 60,000 hours for ball bearing models (at 25°C lab conditions)
Mass: 0.85 kg

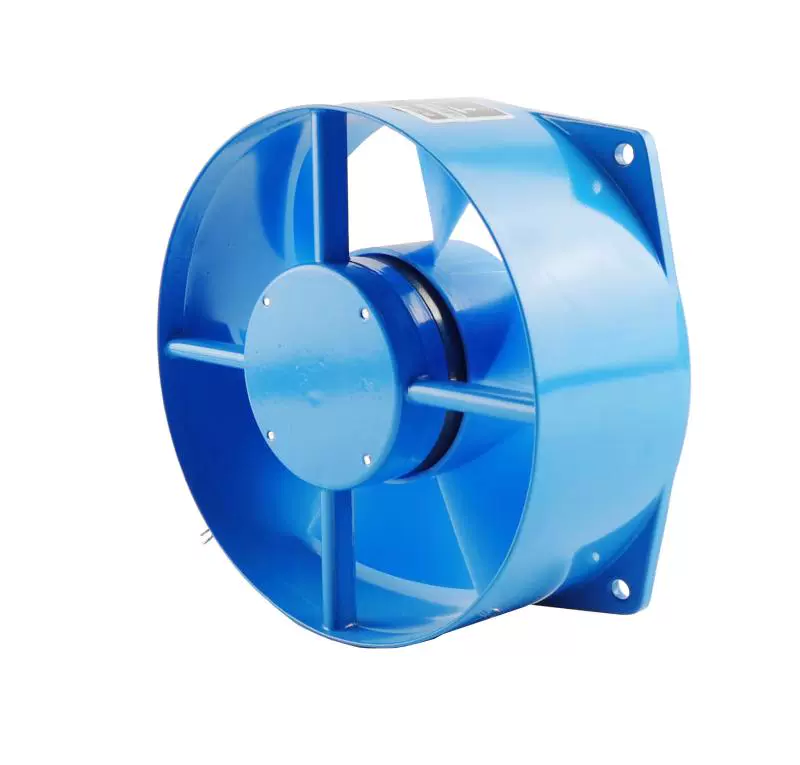

The 150FZY4-D is a robust 150x160x60mm AC axial flow fan, commonly used as a general industrial cooling solution in equipment such as welding machines, electrical cabinets, and various machinery. Operating on 380V AC (3-phase) at 50Hz, it consumes 30W of power, delivering 6.12 m³/min of airflow at 2800 RPM, with a noise level of 65 dB(A). This fan uses durable ball bearings and features an IP54 protection rating, ensuring reliable operation in harsh industrial environments.
