Description

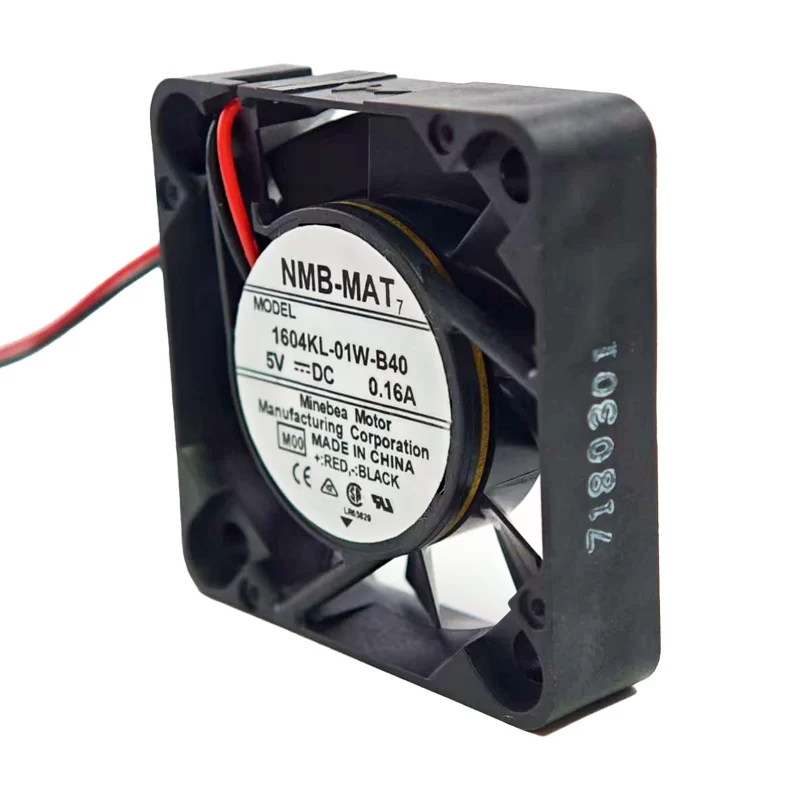

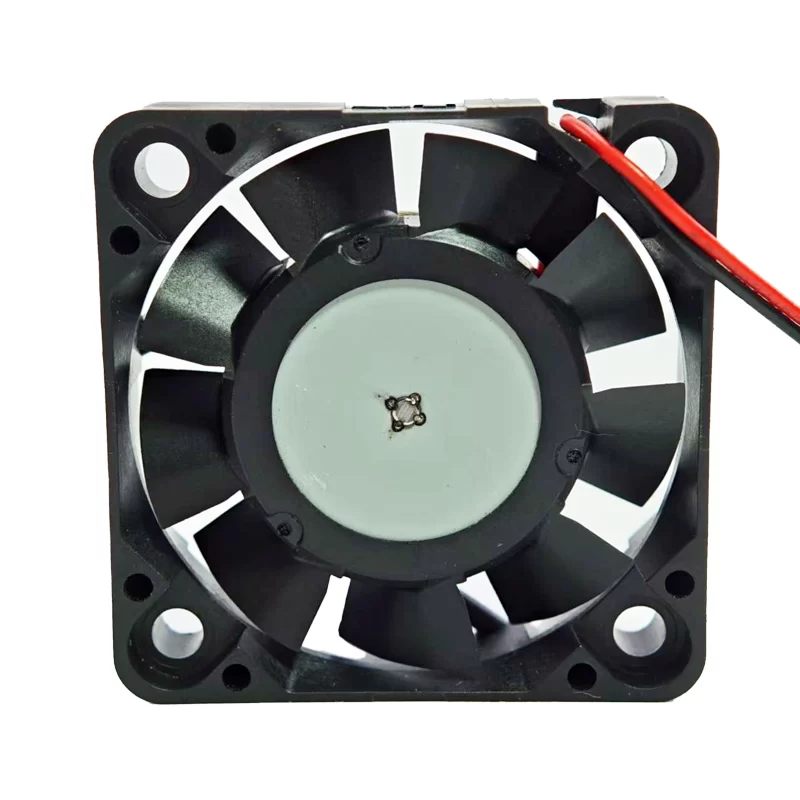

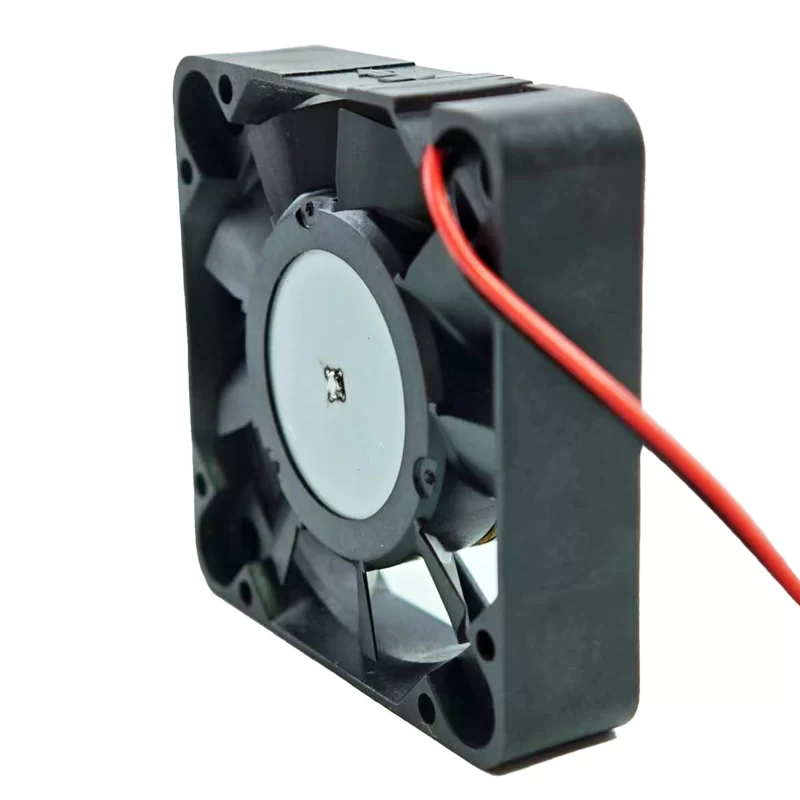

The NMB 1604KL-01W-B40 is a compact and efficient 5V DC axial fan, measuring 40mm x 40mm x 10mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in space-constrained electronic devices. It features durable ball bearings, contributing to a long operational lifespan of 60,000 hours at 25°C. Drawing 0.12A of current, it consumes 0.6W of power. This fan operates at 5500 RPM, delivering 5.3 CFM of airflow and generating 0.14 inches of H2O static pressure, all while maintaining a quiet 25 dBA noise level. Equipped with 2-wire leads, the NMB 1604KL-01W-B40 is an excellent choice for cooling components in 3D printers, mini PCs, embedded systems, networking equipment, and other compact electronics that require effective and quiet thermal management.
Brand new original NMB 1604KL-01W-B40 4010 5V 0.16A servo drive cooling fan
Model: 1604KL-01W-B40
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 40mm x 40mm x 10mm
Nominal Voltage: 5V DC
Operating Voltage Range: 4.5V to 5.5V DC
Current: 0.12A (Some widely distributed variants are listed at 0.16A)
Power Consumption: 0.6W
Speed: 5500 RPM
Airflow: 5.3 CFM (0.15 m³/min)
Static Pressure: 0.14 In H2O (34 Pa)
Noise Level: 25 dBA
Bearing Type: Ball Bearing
Life Expectancy: 60,000 Hours (at 25°C, L10)
Termination: 2-wire leads
Frame Material: Plastic
Impeller Material: Plastic
Features: Brushless DC motor, polarity protected, auto-restart.
