Description

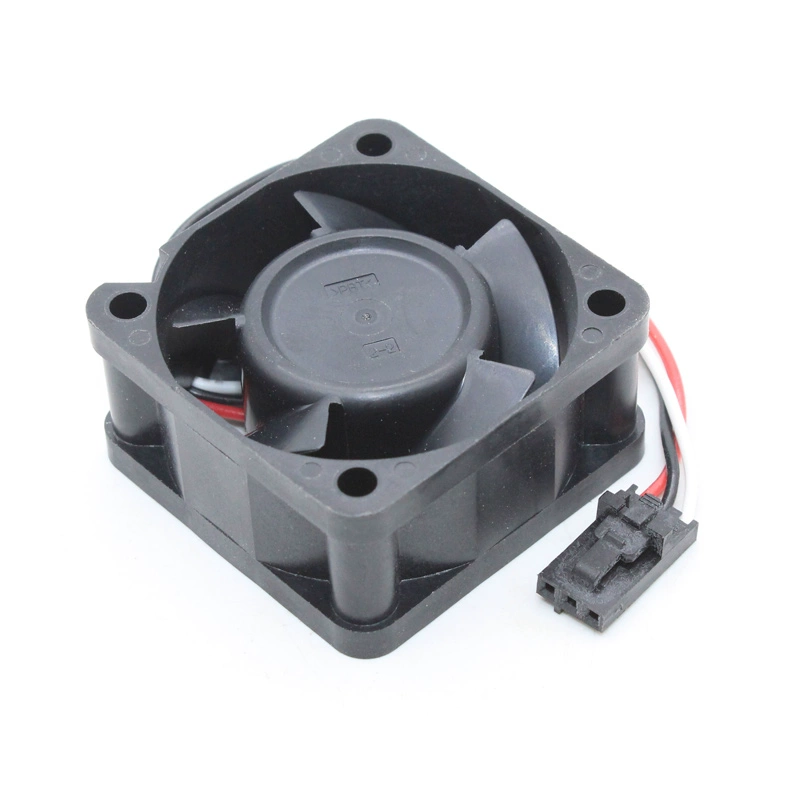

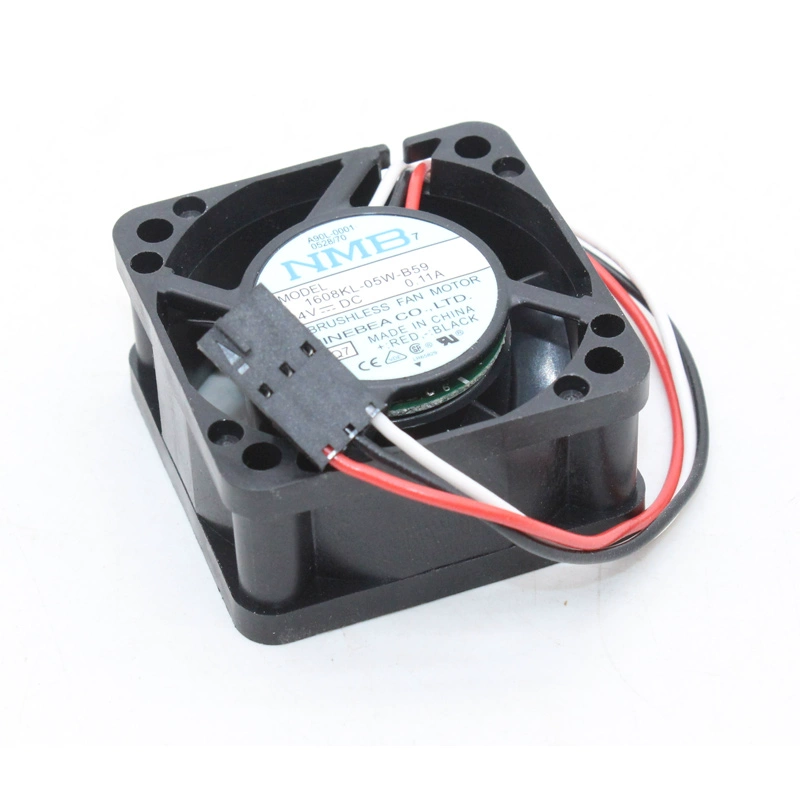

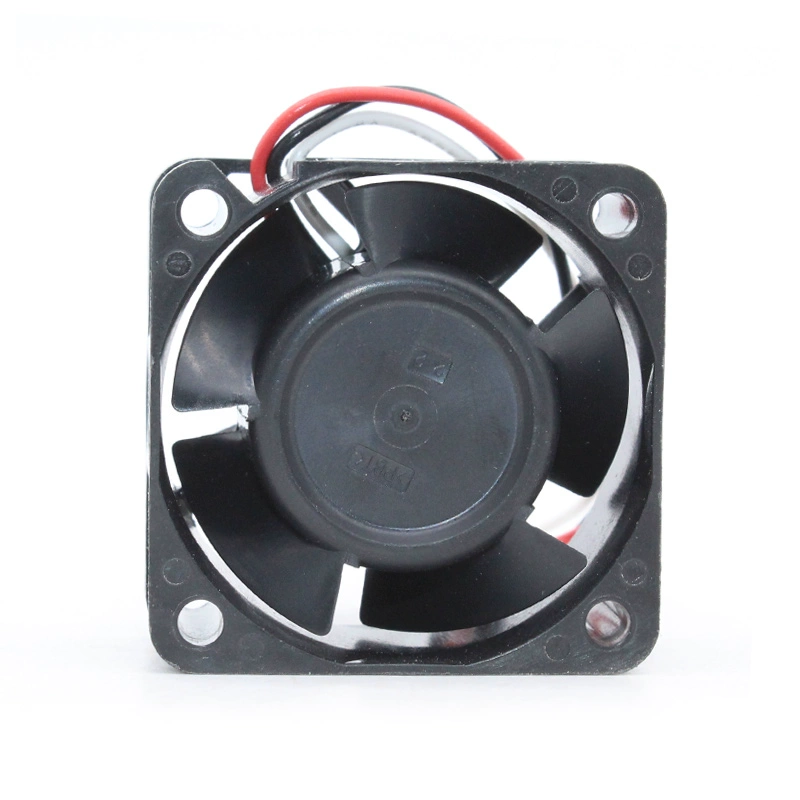

1608KL-05W-B59 3-line Fanuc system driver cooling fan NMB4020/24V 0.11A
Model Number: 1608KL-05W-B59
Manufacturer: NMB Technologies Corporation
Series: 1608KL
Fan Type: DC Brushless Axial Fan
Dimensions L x H x W: 40 mm x 40 mm x 20 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20 VDC to 25.2 VDC
Rated Current: 0.08 A to 0.11 A
Input Power: 1.92 W to 2.64 W
Wiring: 3 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 8500 RPM
Maximum Airflow: 9.5 CFM
Maximum Static Pressure: 0.28 in H2O
Noise Level: 33 dB
Frame Material: Plastic
Impeller Blade Material: Plastic
Features: Locked Rotor Sensor
Operating Temperature Range: -10°C to +70°C
Expected Life L10: 50,000 Hours at 25°C
Mass: 25 g
he NMB 1608KL-05W-B59 is a compact and efficient 40x40x20mm DC axial fan from NMB’s 1608KL series. Operating on 24VDC, it typically consumes between 1.92W and 2.64W of power with a current draw from 0.08A to 0.11A. This fan features durable ball bearings for a long operational life of 50,000 hours at 25°C. It delivers 9.5 CFM of airflow at a high speed of 8500 RPM, generating a notable static pressure of 0.28 in H2O, with a noise level of 33 dB. Its 3-wire termination often includes a locked rotor sensor for system monitoring, enhancing reliability. This fan is an effective thermal management solution for various electronic devices, small industrial equipment, and applications where space is limited and reliable cooling is essential.
