Description

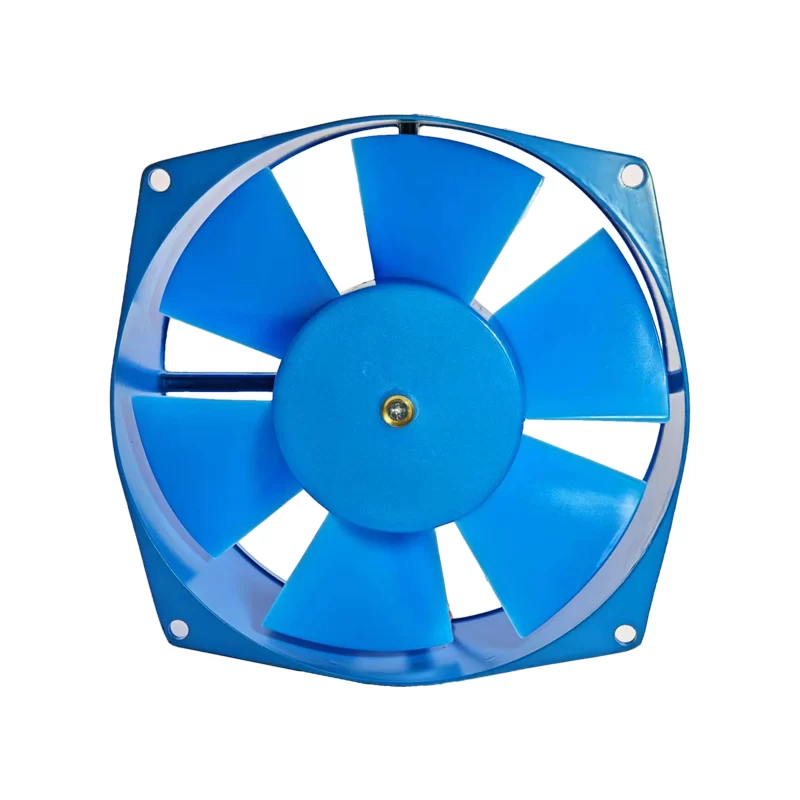

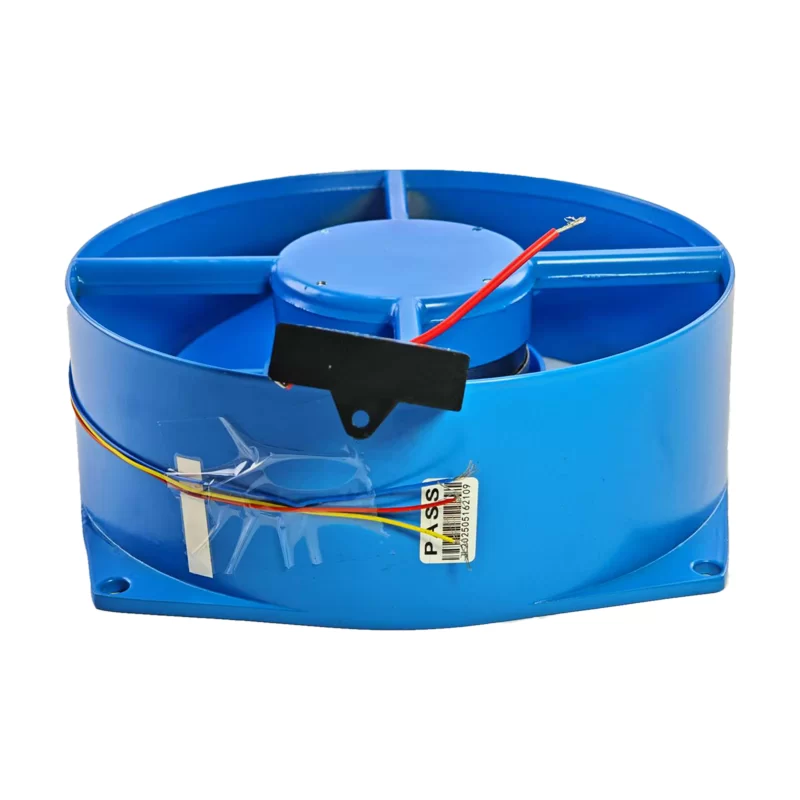

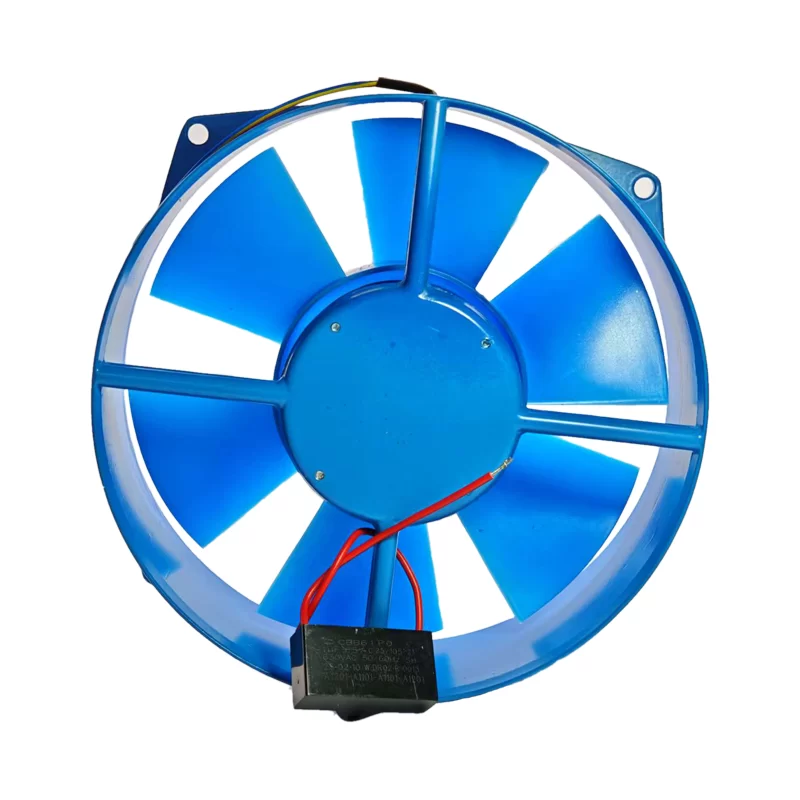

The Jiulong 200FZY2-D is an AC axial flow fan measuring 210x210x70mm. It operates on 220 VAC at 50 Hz / 60 Hz and is a single-phase fan. Power consumption is 65 W, with a rated current of 0.3 A. This fan achieves a speed of 2600 RPM at 50 Hz and 3000 RPM at 60 Hz, providing an airflow of 459 CFM at 50 Hz and 529 CFM at 60 Hz. The noise level is 70 dB(A) at 50 Hz and 75 dB(A) at 60 Hz. It weighs 1.7 kg. It is equipped with ball bearings for durable operation. This series is designed for industrial cooling and ventilation, suitable for applications such as welding machines, cabinets, and electronic equipment.
200FZY2-D Fan Parameters
Model: 200FZY2-D
Manufacturer: Jiulong
Type: AC Axial Flow Fan
Dimensions: 210x210x70 mm
Rated Voltage: 220 VAC
Frequency: 50 Hz / 60 Hz
Phase: Single-phase
Power Consumption: 65 W
Rated Current: 0.3 A
Speed (50Hz / 60Hz): 2600 RPM / 3000 RPM
Airflow (50Hz / 60Hz): 459 CFM / 529 CFM
Noise Level (50Hz / 60Hz): 70 dB(A) / 75 dB(A)
Bearing Type: Ball Bearing
Protection Degree: IP54
Weight: 1.7 kg
Application: Industrial cooling, ventilation for welding machines, cabinets, electronic equipment.
